Dynatron N6 Cooler suitable for 3U Chassis with Intel LGA 4189
Dynatron N6 3U Cooler for Intel LGA 4189 | |
£49.20 inc. VAT | |
IN STOCK (Checked 09:54) |

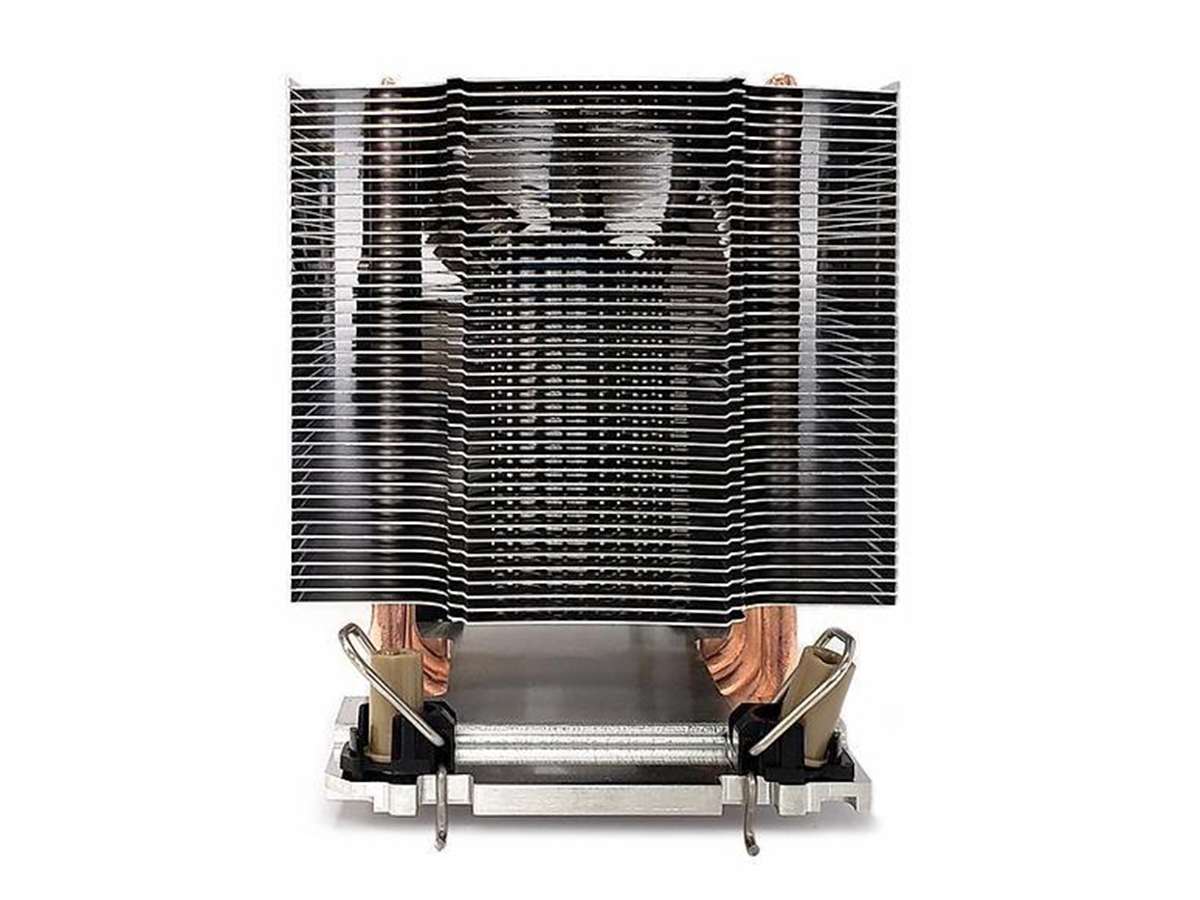

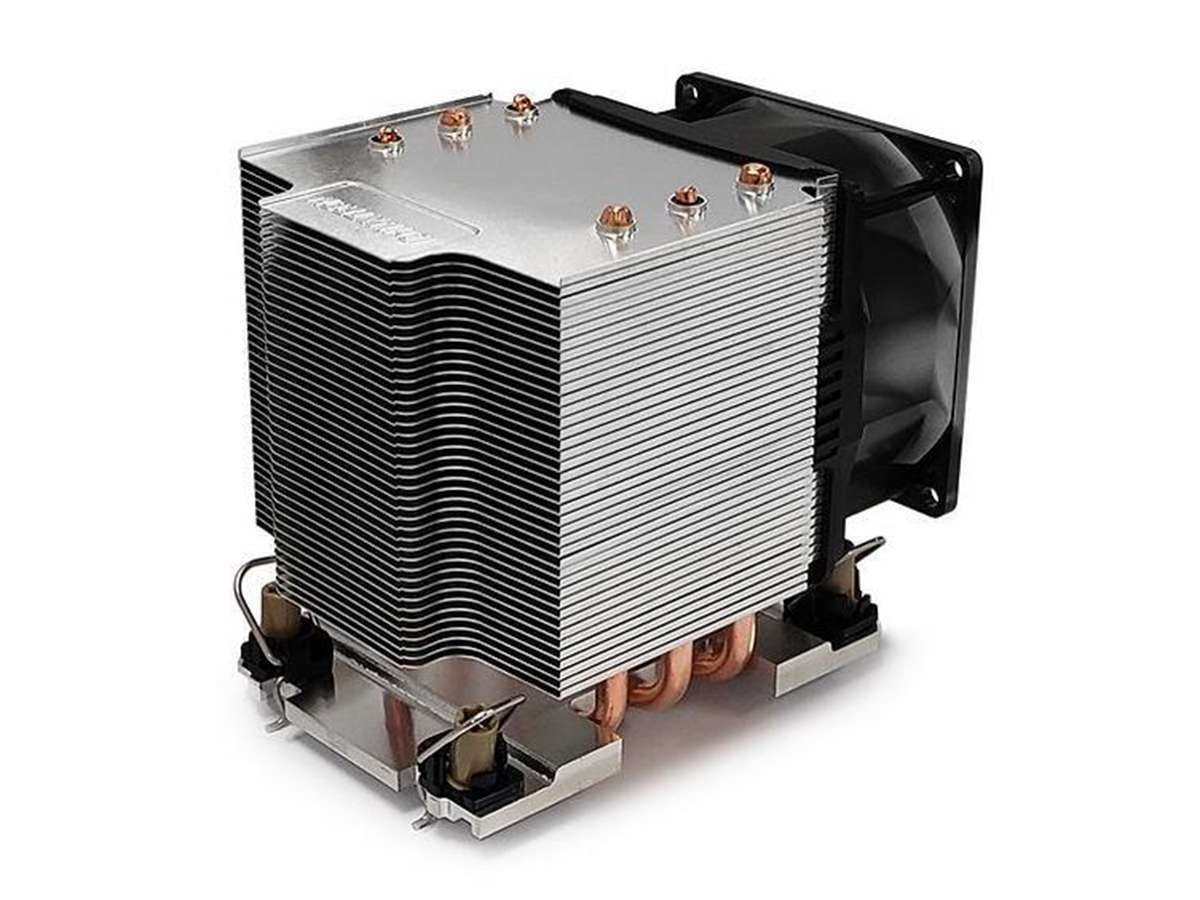

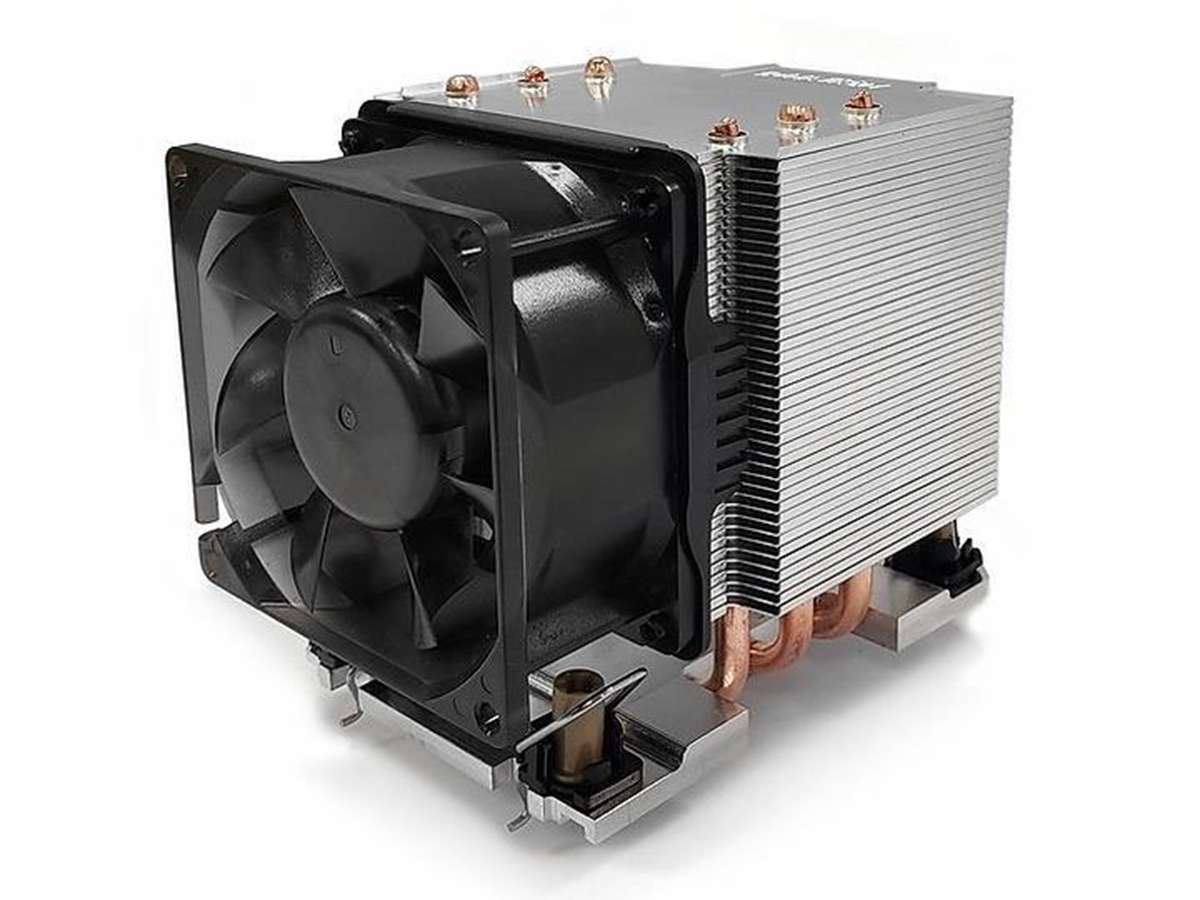

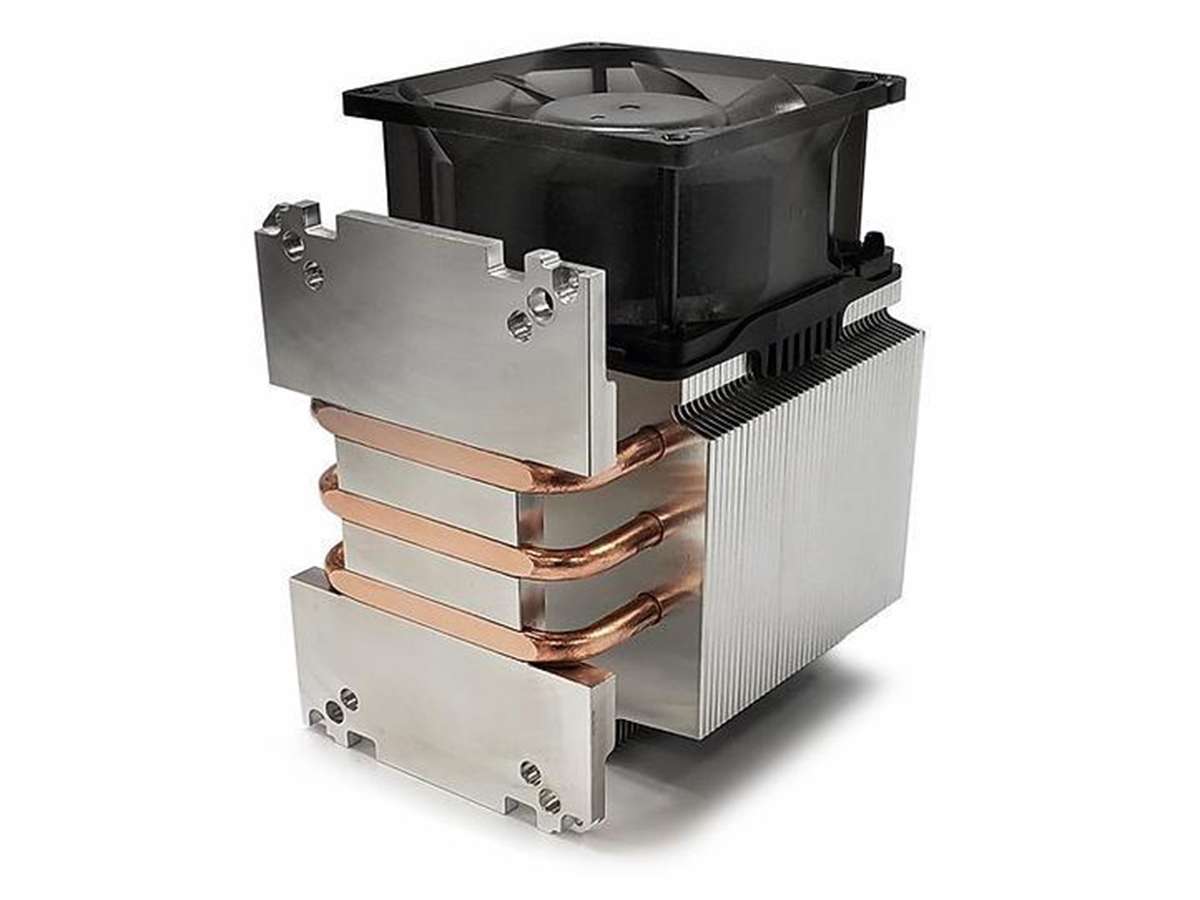

Dynatron N6 Cooler with aluminum stacked fins with heat pipes directly contacting CPU suitable for cooling Intel Socket LGA 4189-4/5 (Socket P4/P5 or P+) motherboards in a 3U Chassis.
Dynatron 8038 long life two-ball bearing axial fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance Shin-Etsu 7762 thermal grease ensures clean and easy installation.
Case Compatibility: Side blower design suitable for use in a 3U chassis. Tip: angle the N6 to force air out of the rear of the chassis.
Screw Fit: Torx Nuts surrounded by compression springs screw through Intel package carrier to motherboard.
Installation Video: How to install Dynatron LGA4189 Cooler
Compatible Boards and CPUs: Intel Socket LGA 4189-4/5 (Socket P4/P5 or P+) Motherboards fitted with a processor producing up to 270W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.
Specifications: PWM controlled Fan speed: 800 RPM (at 0-20% Duty Cycle); 1500 RPM (at 50%); 3000 RPM (at 100%); Airflow: 13.67 CFM (at 0-20%), 25.63 CFM (at 50%), 51.26 CFM (at 100%); Air Pressure: 0.402 mm-H2O (at 0-20%); 1.41 mm-H2O (at 50%); 5.66 mm-H2O (at 100%); Noise level: 13.45 dBA (at 0-20%), 27.1 dBA (at 50%), 42.15 dbA (at 100%); Power Consumption: 0.48 W (at 0-20%); 0.84 W (at 50%); 2.88 W (at 100%); Weight: 600g; Fan Dimensions: 80 x 80 x 38mm; Overall Dimensions: 128 x 91 x 110 (H) mm.
Specifications | |
---|---|
Brand | Dynatron |
Model | N6 3U Cooler for Intel LGA 4189 |
Maximum CPU Power | 270 W |
Connector Type | 4-pin PWM |
Socket Types | 4189 |
Construction | Aluminum Stacked-fin with Heat Pipes directly contacting CPU |
Fan Bearing Type | 2 Ball Bearing |
Power @ 20% | 0.48 W |
Power @ 50% | 0.84 W |
Power @ 100% | 2.88 W |
Voltage | 12 V |
Cooling | |
Fan Speed @ 20% | 800 RPM |
Fan Speed @ 50% | 1500 RPM |
Fan Speed @ 100% | 3000 RPM |
Airflow @ 20% | 13.67 CFM |
Airflow @ 50% | 25.63 CFM |
Airflow @ 100% | 51.26 CFM |
Air Pressure @ 20% | 0.402 mm-H2O |
Air Pressure @ 50% | 1.41 mm-H2O |
Air Pressure @ 100% | 5.66 mm-H2O |
Noise Level @ 20% | 13.45 dB(A) |
Noise Level @ 50% | 27.1 dB(A) |
Noise Level @ 100% | 42.15 dB(A) |
Dimensions | |
Fan Size | 80 x 80 x 38mm (W x H x D) | Heatsink Height | 110mm |
W x D x H | 128 x 91 x 110mm |
Volume | 1.28 litres |
Weight | 600g |
