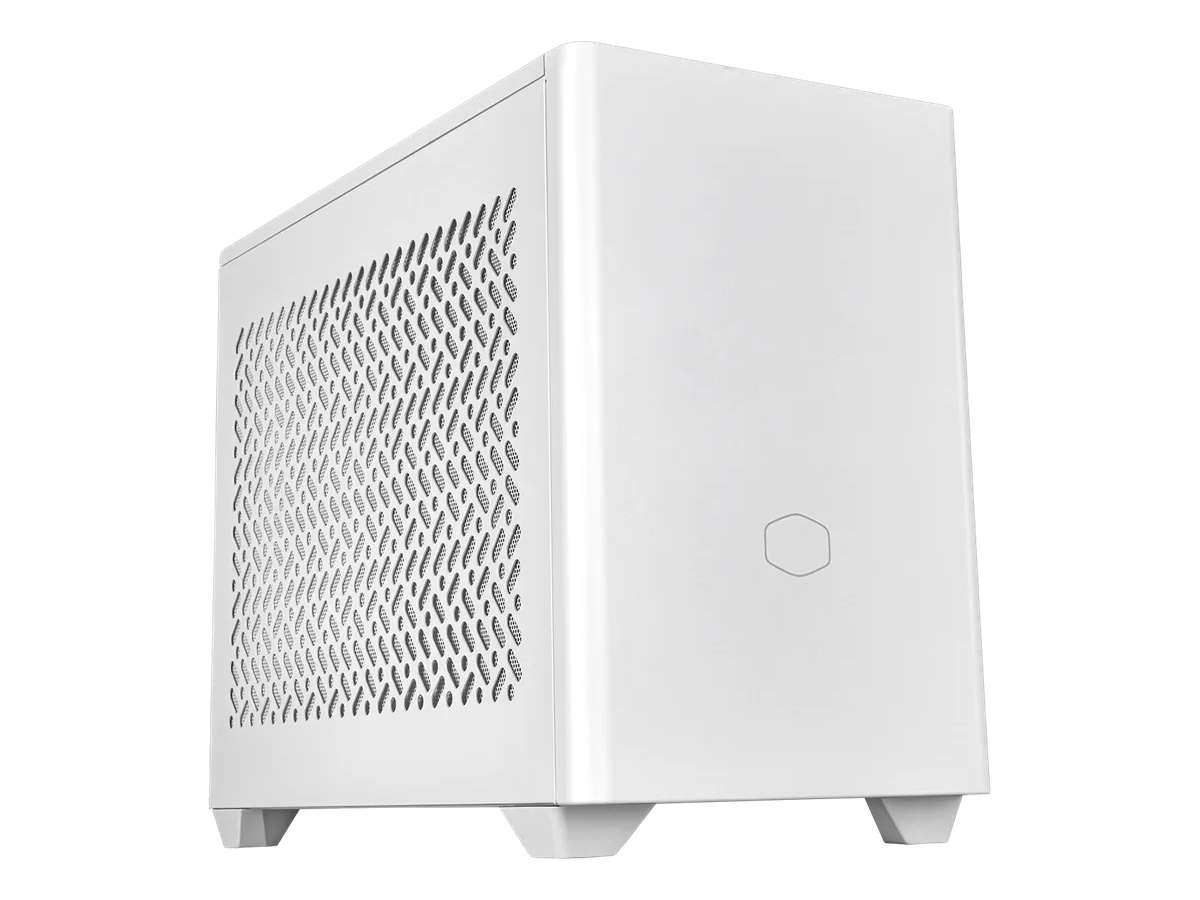

Cooler Master MasterBox NR200P V2 Mini-ITX Chassis - White

The Cooler Master NR200P V2 is an 18.25L Mini-ITX chassis (372mm L × 185mm W × 292mm H) made from SGCC Steel, Mesh, ABS Plastic and Tempered Glass. It supports SFX/SFX-L PSUs, includes a PCIe 4.0 x16 riser and supports triple-slot GPUs up to 356mm, and provides tool-free pin-secured access on every panel. The V2 is an NCORE redesign maximising cooling performance.

Colours: Available in Black and White.

Motherboard Support: Mini-ITX (170 × 170mm)

CPU Cooler Clearance: ≤ 67 mm.

Graphics Card Support: Vertical mounted via included PCIe 4.0 riser cable with GPU support bracket. Supports triple-slot GPUs

• Up to 356mm length × 160mm height × ≤73 mm width or
• Up to 334mm length × 160mm height × 74-80mm width.

Power Supply: Not included. Supports SFX or SFX-L up to 130 mm long.

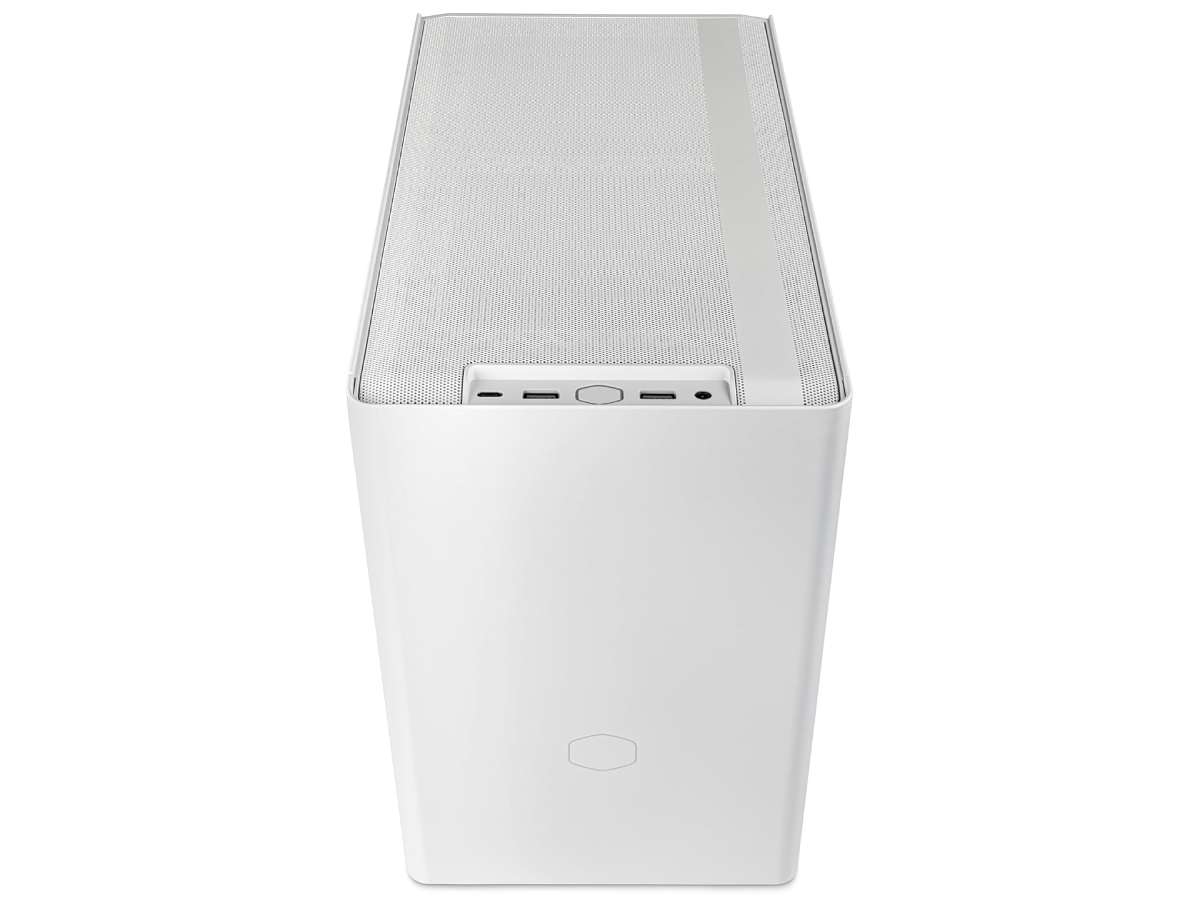

Front Panel I/O:

• 1× USB 3.2 Gen 2×2 Type-C (connects to USB-C header on board)
• 2× USB 3.2 Gen 1 Type-A (connects to USB 3 header on board)
• 1× 3.5 mm Headset Jack (connects to AUDIO header on board)
• Power Button (connects to FPANEL on board).

Cooling:

• Pre-installed: 1× 120 mm PWM SickleFlow bottom fan (650-1800 rpm).
• Fan Support (Top): 2× 120 mm or 2× 140 mm.
• Fan Support (Bottom): 1× 120 mm underneath GPU position, or 2× 120 mm (if no 3.5 in drive fitted, and one fan must be ≤ 15 mm thick).
• Radiator Support (Top): 120 / 140 / 240 / 280 mm.

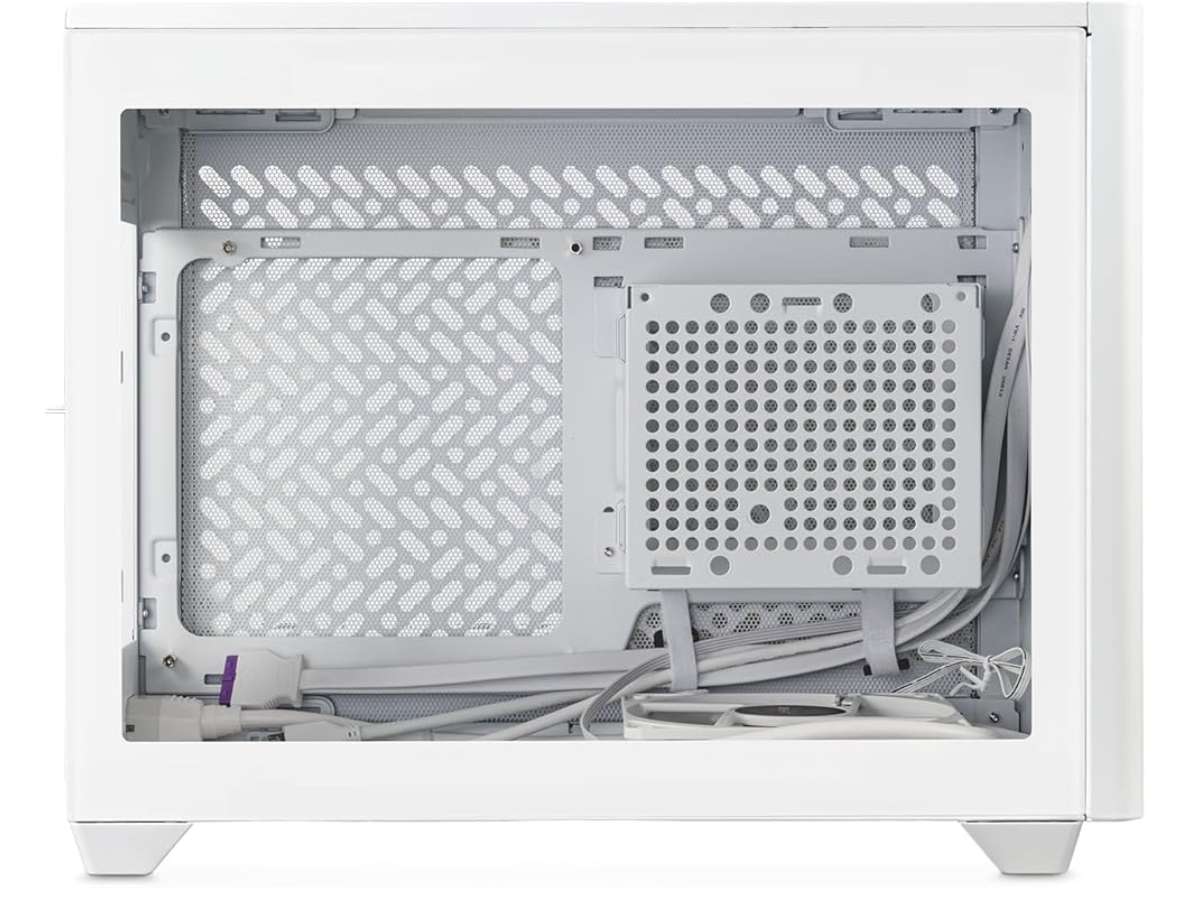

Drive Bays:

• Up to 2× 3.5in (requires removing bottom fan) or
• 1× 3.5in + 1× 2.5in or
• 2× 2.5in.

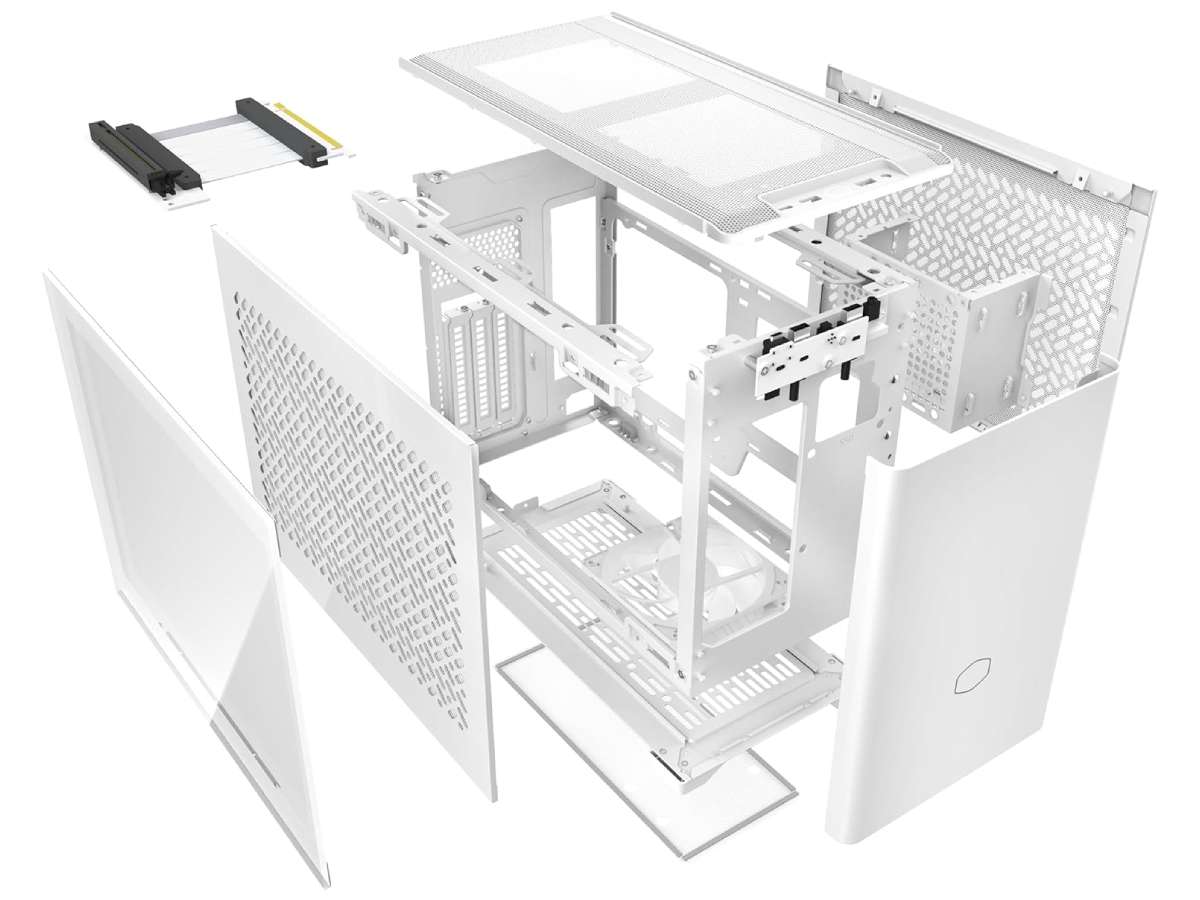

Interchangeable Left-Side Panel: Two interchangeable left-side panels supplied: 1× tempered-glass and 1× ventilated steel (the right side is always ventilated steel); both attach tool-free with push-pins.

Dust Filtration: Filters on Bottom, Left, Right and Top panels.

Manual: Cooler Master NR200P V2

Dimensions: 372mm L × 185mm W × 292mm H (18.25 litres)
