MSI Cubi NUC 1M Core 3 100U Barebones Mini PC with 2x 4K@60Hz HDMI and 2x 4K@60Hz Thunderbolt, 2x M.2 and 1x 2.5in Storage, 2x 2.5Gbps LAN & WiFi 6E, Card Reader, Up to 64GB RAM
| MSI Cubi NUC 1M Core 3 100U Barebones Mini PC | |
| £358.80 inc. VAT | |
|
PRE ORDER
Lead time usually 2-3 weeks |
Choose everything you need at once, or we can build and install for you:
MSI Cubi NUC 1M Barebones Ultra Compact Mini PC Kit with 14th Gen Intel Core 3 100U processor (6 Cores: 2 Performance Cores, 4 Efficient Cores; 8 Threads, 10MB Cache, 1.2GHz Base / 4.7GHz Turbo, 15W Base TDP). Integrated Intel Graphics and HD Audio. Supports up to 64GB Memory; 4x Simultaneous 4K@60Hz Outputs; 4x USB 3.2 Gen2 Type-A; 2x USB 4 Type-C (Thunderbolt 4); 3 Storage Bays: 1x 2.5in SSD/HDD, 1x M.2 2280 PCIe4 SSD drive bay, 1x M.2 2242PCIe4 SSD drive bay, WiFi 6E and Bluetooth 5.3.
Barebones or Fully Built: simply add a stick of DDR5 SODIMM memory and an storage drive to complete the internals of the Cubi NUC 1M, or we can build and install it for you.

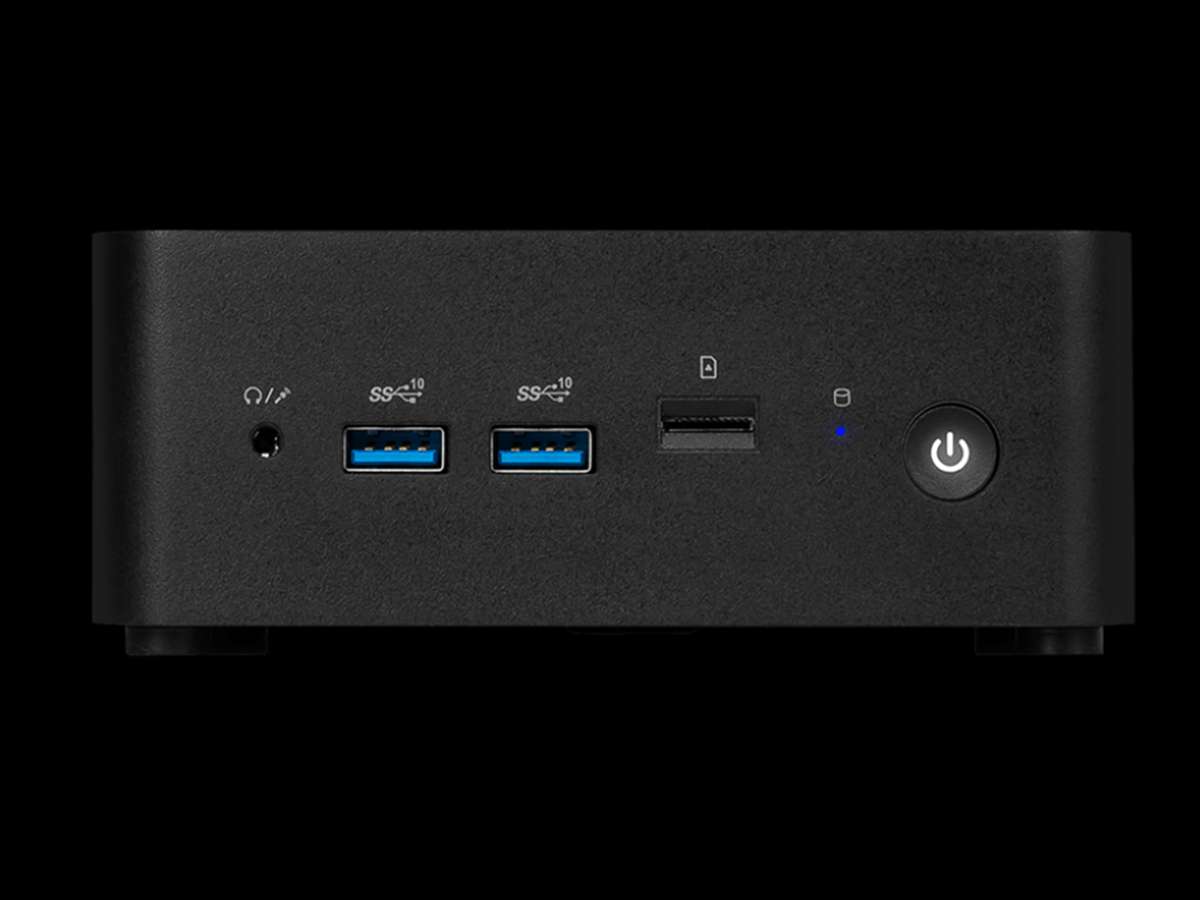

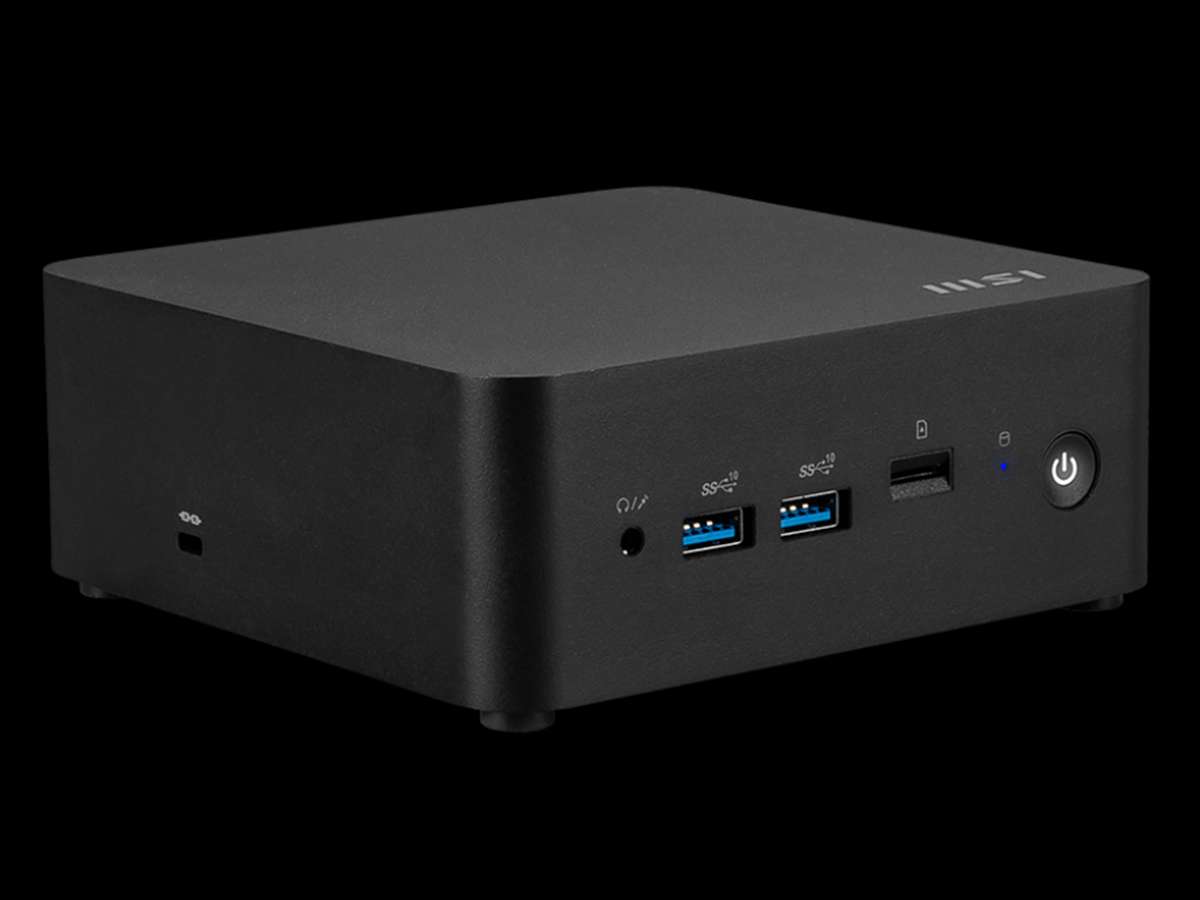

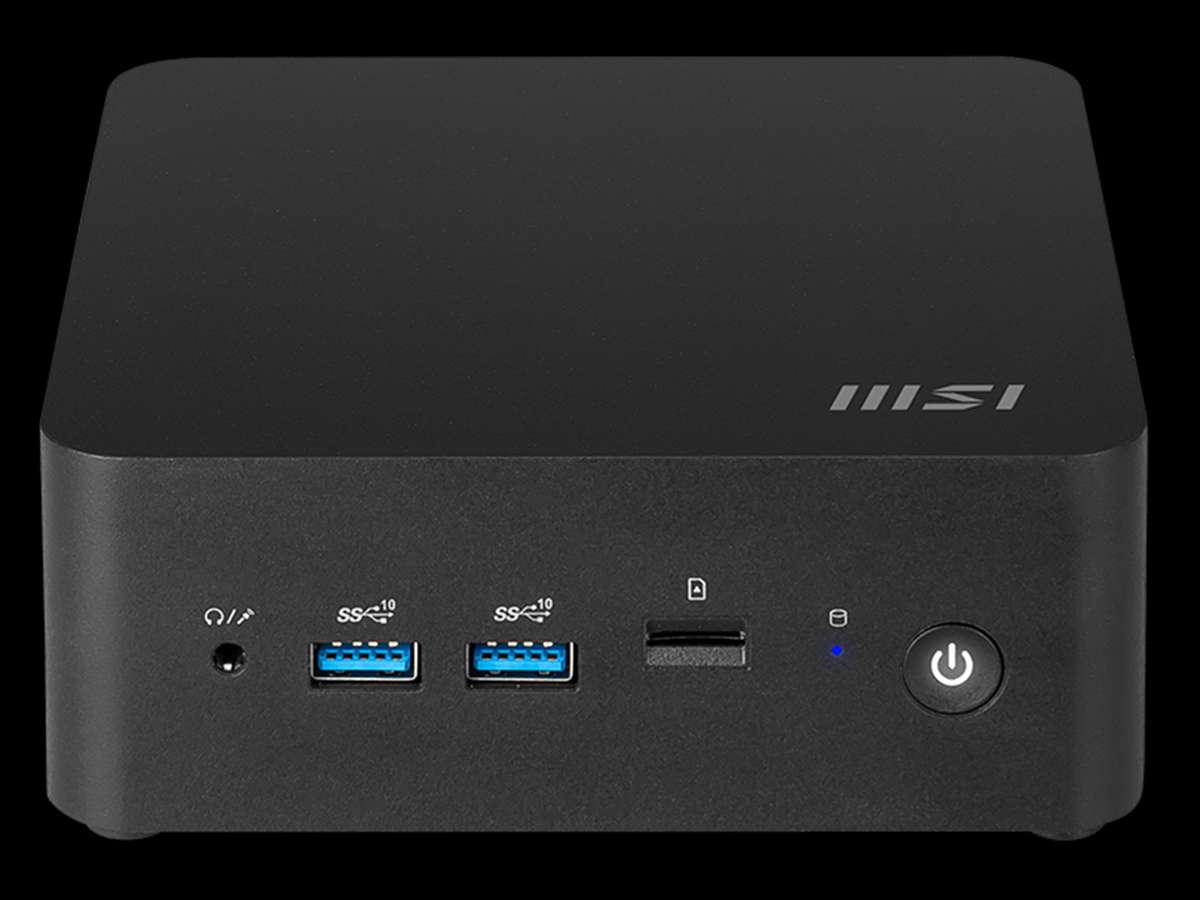

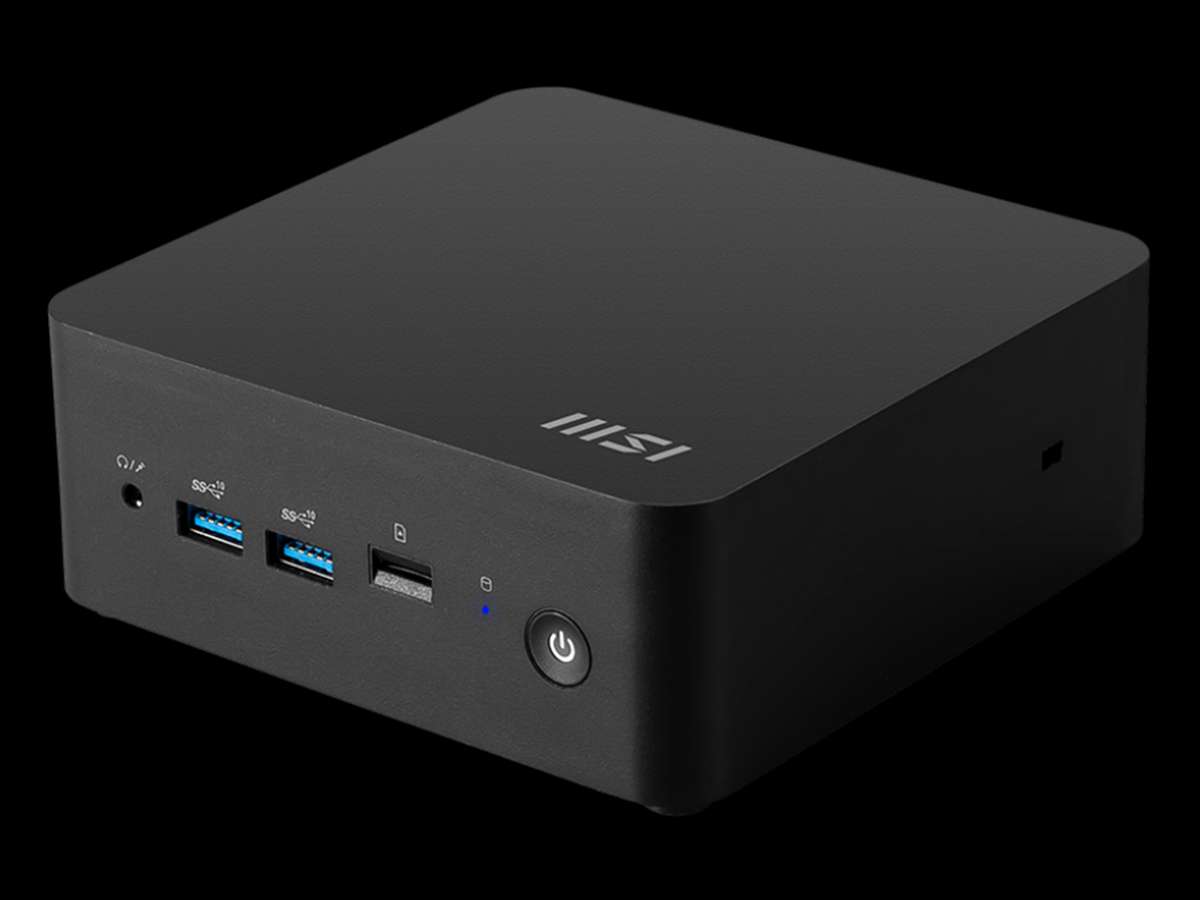

Front Panel: 1x Mic In/Headphone 3.5mm Jack; 2x USB 3.2 Gen2 (10Gb/s) Type-A Connectors; Micro-SD Card Reader; HDD Activity LED; Power Button with LED.

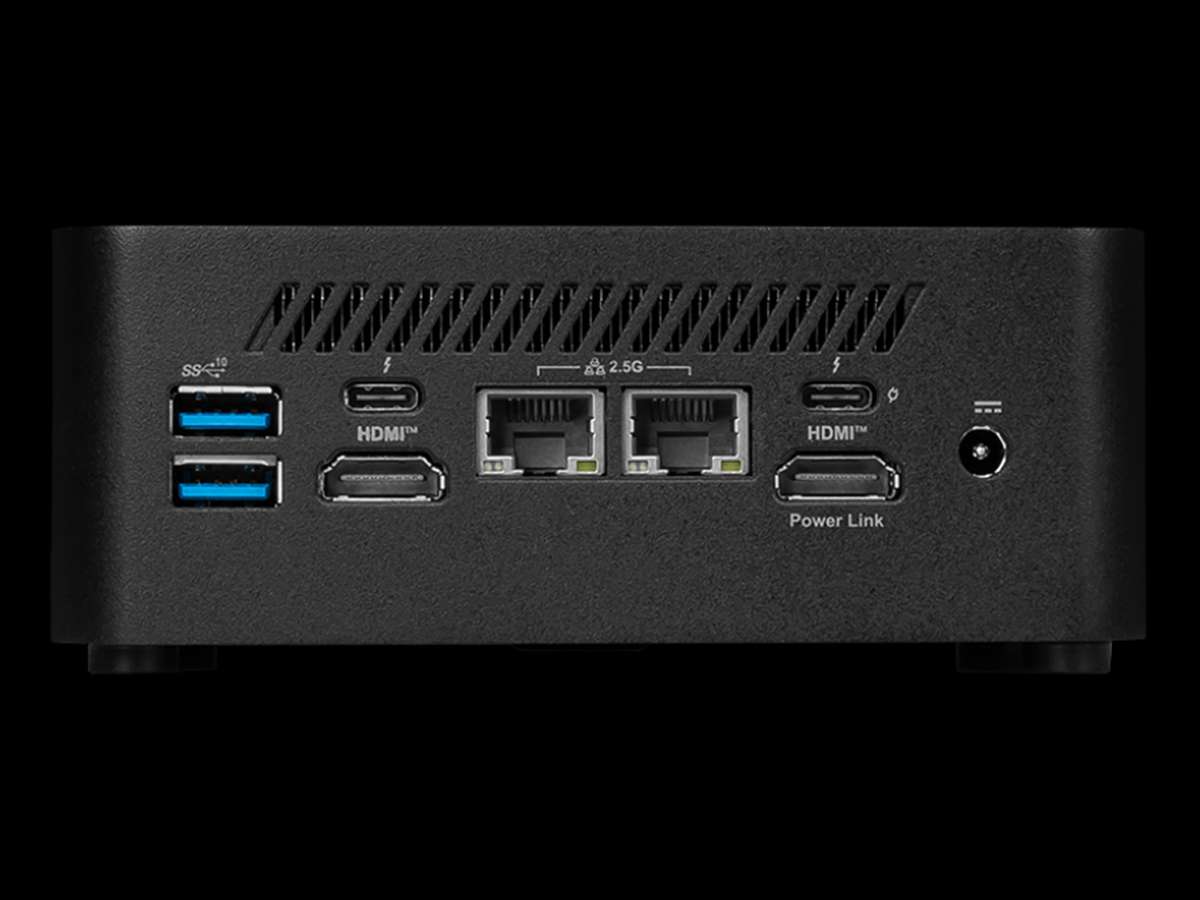

Rear Panel: Cooling Vents; 2x USB 3.2 Gen2 (10Gb/s) Type-A Connectors; 2x Thunderbolt 4 via USB 4 Type-C Connectors (both supports DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W, one supports PD-in up to 100W); 2x HDMI 2.1 Connectors (one supports the optional MSI Power Link external power switch accessory); 2x Intel i226-V 2.5Gb LAN Sockets; DC Input Jack.

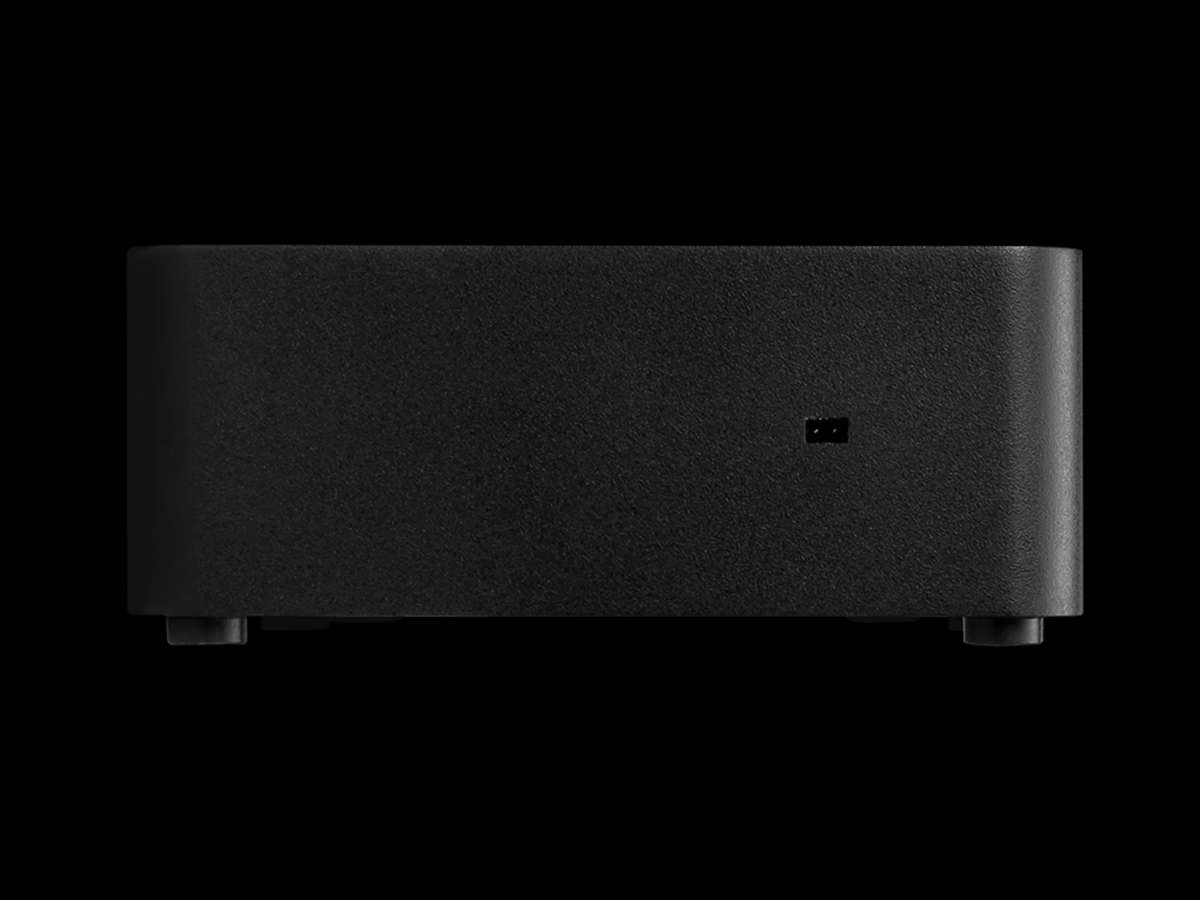

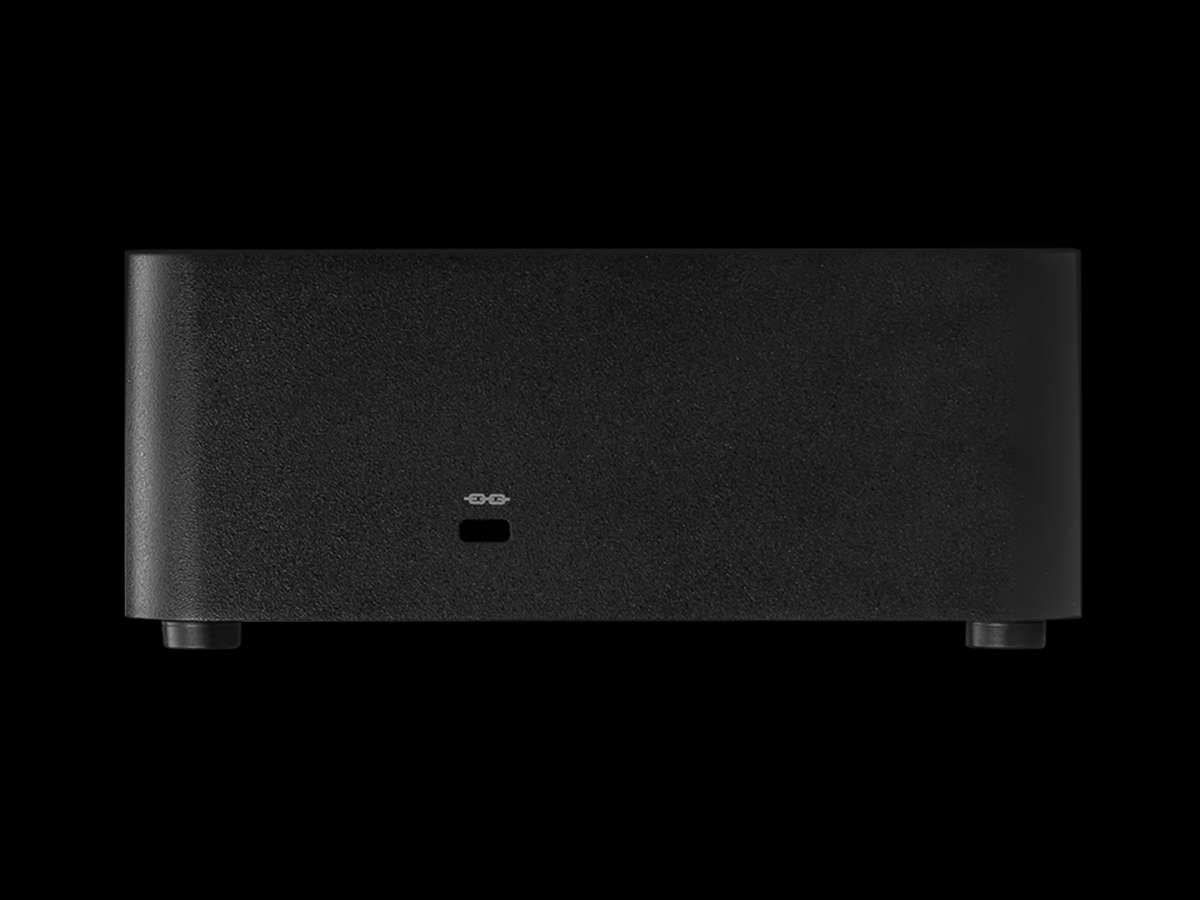

Side of Chassis: Kensington Anti-Theft Key Lock Hole; External Power Switch Slot.
Storage: 1x 2.5in HDD/SSD bay; 1x M.2 Type 2280 PCIe4 connector; 1x M.2 Type 2242 PCIe4 connector.
Dual 2.5Gb LAN: 2x RJ45 LAN sockets each supports 10/100/1000/2500 Mbps using Intel i226-V 2.5GbE Ethernet Controller.
Wireless: Included Intel Wi-Fi 6E AX211 module provides 802.11ax R2 2x2 Wi-Fi up to 2.4Gbps & Bluetooth 5.3.
Multiple Displays: The Cubi NUC 1M supports up to 4x 4K@60Hz displays: 2x DisplayPort 1.4a over Type-C and 2x HDMI 2.1.
Audio: Realtek ALC256 HD Audio.
Cooling: The Cubi NUC 1M has in internal cooler that vents through the rear. The cooler is almost silent at low usage (28 db) and is quiet under load (38 db).
Power Supply: External 120W Universal 100-240V 12V AC Adapter with provided UK power cord connects to 2.5/5.5mm power input socket.
Accessories: Cubi NUC 1MMini PC; AC Adapter; VESA Mount Bracket and Screws.
OS Support: Drivers available for Windows 11 64-bit.
Technical: Drivers and Software; Manual.
Measurements: 135.6 x 132.5 x 50.1mm (W x D x H); Volume: 0.9 litres.
Memory: 2x 262-pin slots support up to 64GB memory on 2x 32GB DDR5 SODIMMs running at up to 5200MHz. We will always provide compatible memory if purchased directly from this page or through the configurator page.
| Specifications | ||
|---|---|---|
| Model | MSI Cubi NUC 1M Core 3 100U | |
| Processor | Intel Core 3 100U 6C8T 4.7GHz | |
| Architecture | Meteor Lake | |
| Cooling | ||
| Fanless | No | |
| Operating Temp | 0℃ - 35℃ | |
| Storage Temp | -20℃ - 60℃ | |
| Memory | ||
| Maximum | 64GB | |
| Sockets | 2x SODIMM | |
| Type | DDR5 | 5200MHz |
| Graphics | ||
| Chipset | Intel Arc Graphics | |
| Displays | 4 | |
| Outputs | 2x Thunderbolt (USB-C) | 4096x2160 @ 60Hz max res. |
| 1x HDMI (2.1) | 4096x2304 @ 60Hz max res. | |
| 1x HDMI (2.1) | 4096x2304 @ 60Hz max res. | |
| Audio | ||
| Chipset | ALC256 | Supports 3 Channel audio |
| Connectors | 1x 3.5mm Mic/Headphone Jack | (Front) |
| Storage | ||
| Bays | 3 | |
| Types | 1x M.2 2242 Slot up to PCIe4 | |
| 1x M.2 2280 Slot up to PCIe 4.0 x4 | ||
| Type | 1x 2.5in HDD/SSD | |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Intel i226-V 2.5Gbps | |
| LAN 1: | Intel i226-V 2.5Gbps | |
| Wireless | ||
| Type | Intel Wireless 6E AX211 | |
| USB | ||
| Connectors | 6 | |
| Type | 2x USB 3.2 Gen2 (10Gb/s) Type A | (Front) |
| 2x USB 3.2 Gen2 (10Gb/s) Type A | (Rear) | |
| 2x USB 4 (Thunderbolt 4) Type C | (Rear) | |
| Power Supply | ||
| Type | External | |
| Input | 110-240 AC | C6 Power Connector |
| Output | 2.5/5.5mm | 12V DC |
| Power | 120W | |
| Accessories | ||
| Included |
|
|
| VESA Support | ||
| 75x75mm | ||
| 100x100mm | ||
| Driver Support | ||
| OS | Windows 11 64-bit
|
|
| Dimensions | ||
| W x D x H | 135.6 x 132.5 x 50.1 mm | |
| Volume | 0.9 litres | |
| Manufacturer's Warranty | ||
| Duration | 12 months | |
