Asus PL64 Barebones Mini PC with 10C12T Intel i7-1255U Processor, 1x 2.5Gb LAN, 1x 1Gb LAN, 3x HDMI, 3x USB 3.2 Gen1, 2x COM, 2x M.2 Drive Bays, 802.11ax WiFi 6E & BT5.3 and up to 64GB RAM
| Asus PL64 i7-1255U Mini PC | |
|
NO STOCK
Contact us for availability |

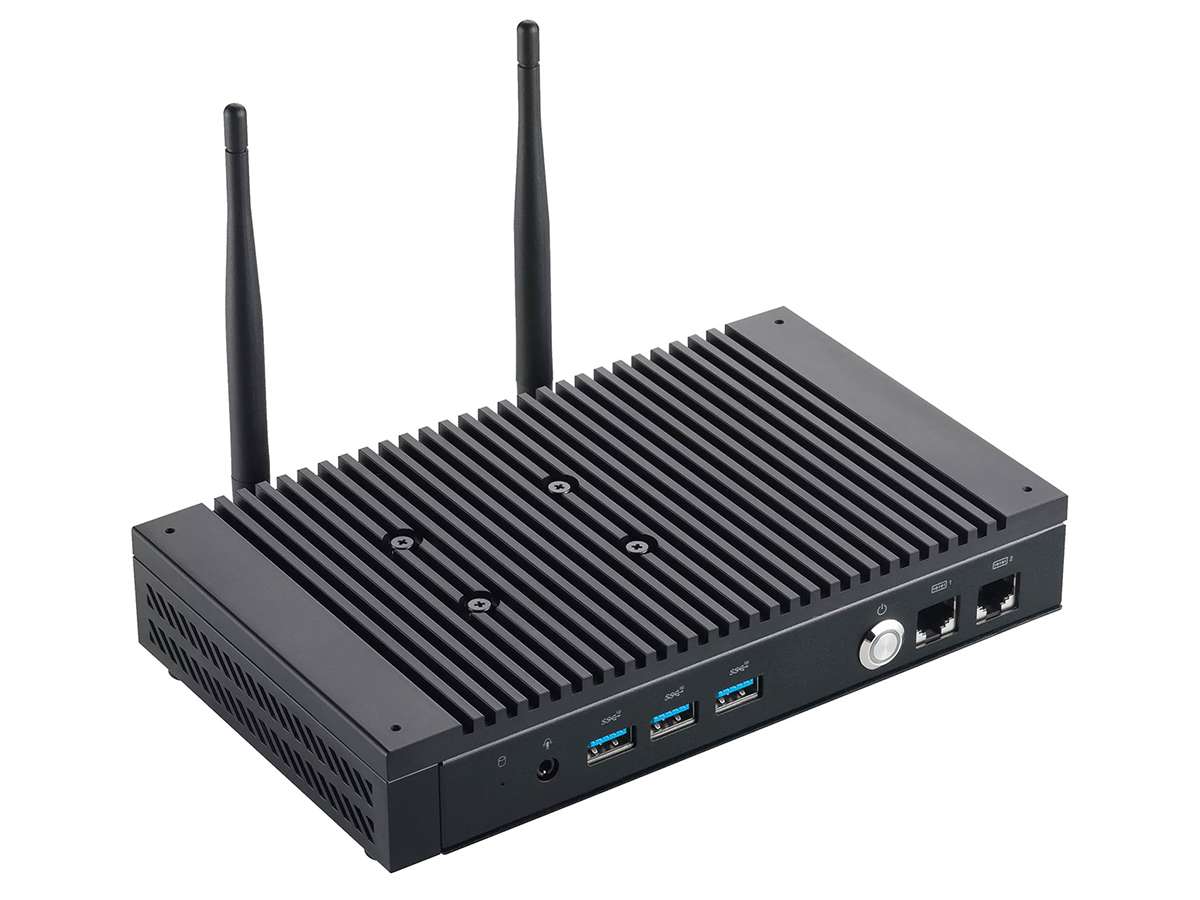

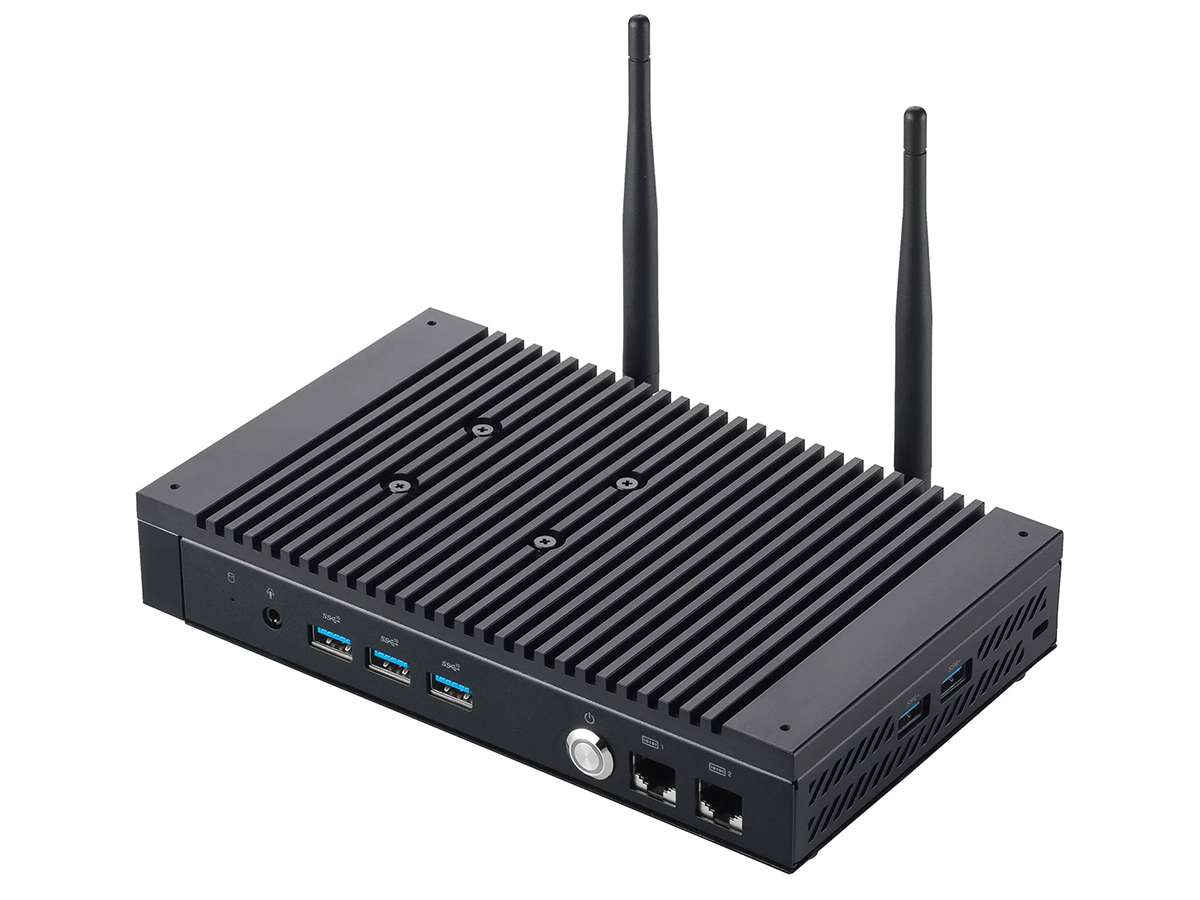

Asus PL64 Fanless MiniPC with Intel 6C8T Intel i7-1255U Processor & Integrated Intel Iris Xe Graphics. Up to 64GB RAM, 1x Intel 2.5Gb LAN, 1x Intel 1Gb LAN, 3x HDMI, 3x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A, 2x M.2 Storage, 2x COM (RS232/422/485) on RJ50 Ports, 802.11ax WiFi 6E with Bluetooth 5.3. Barebones unit - simply add memory and M.2 storage to complete the internals of the PL64.
The PL64 is powered by Fanless Intel 10 Core 12 Thread (2 Performance, 8 Efficient Cores, up to 4.7GHz) i7-1255U Processor with Intel Iris Xe Graphics.
Bays: 2x M.2 Type 2280 PCIe4 x4 (NVMe) Storage Slots.
Memory: 2x 260-pin sockets supports up to 64GB memory on 2x 32GB DDR4 SODIMMs up to 3200MHz.

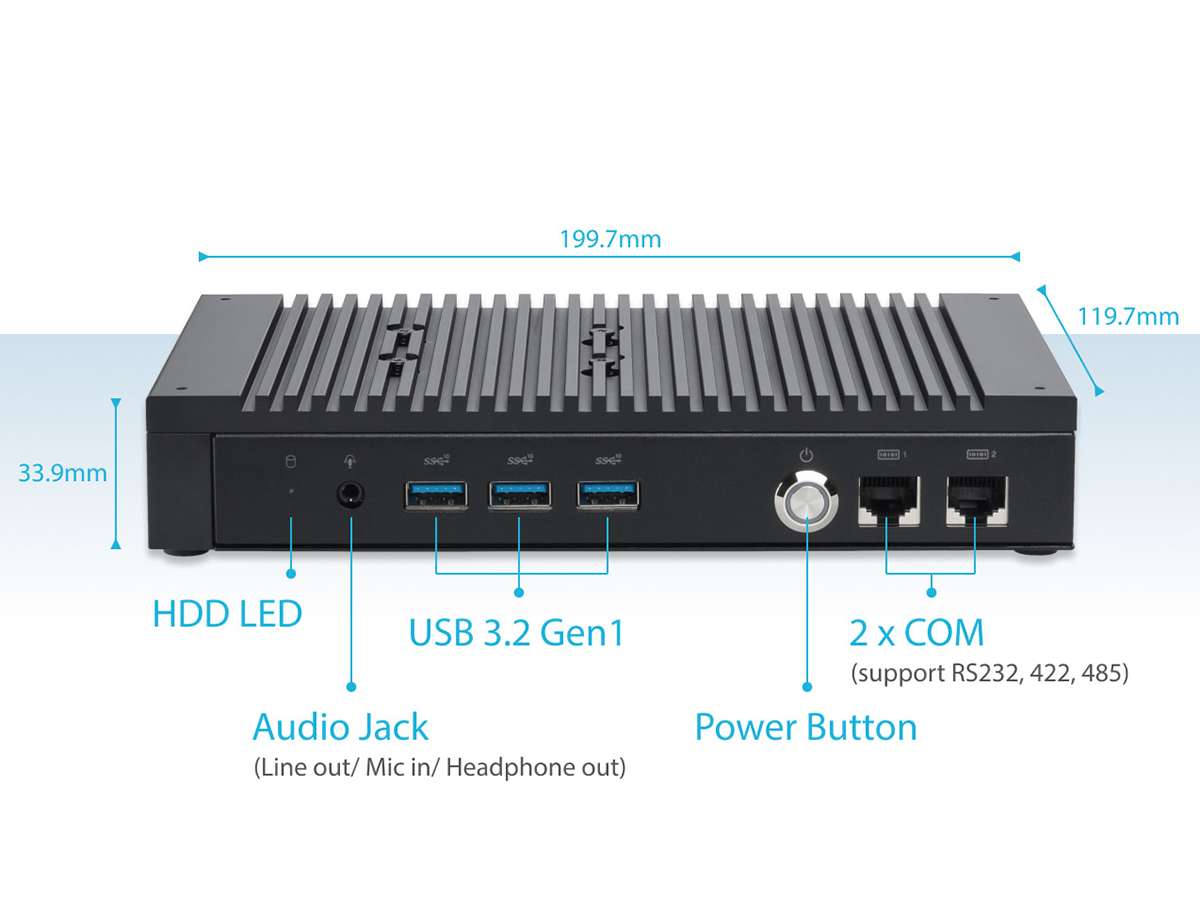

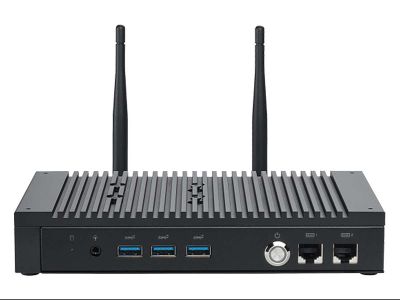

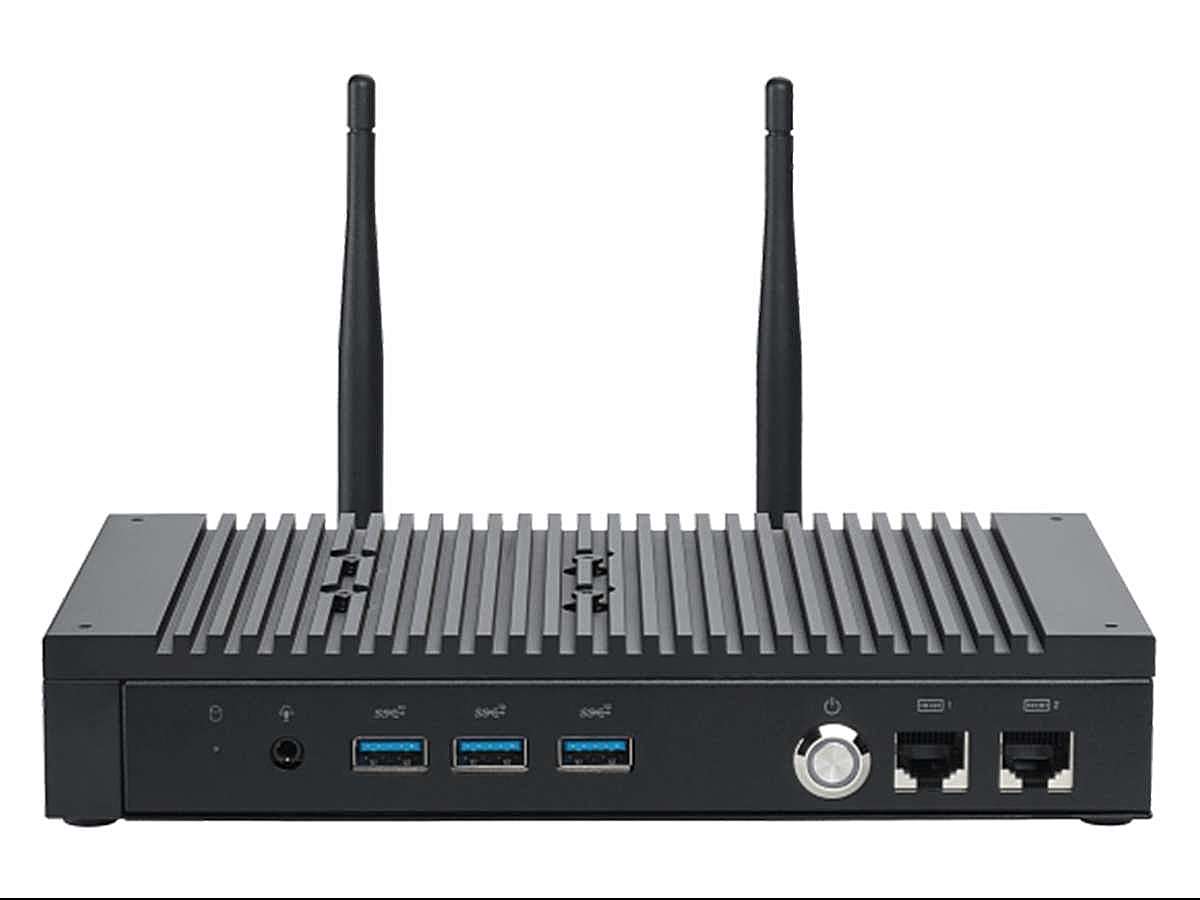

Front Panel: HDD LED; 3.5mm Audio Jack (Line Out/Mic In/Headphone Out); 3x USB 3.2 Gen2 Type-A; Illuminated Power Button; 2x COM (RJ50; support RS232, 422, 485)
Side Panel: 2x USB 3.2 Gen1 Type-A; 1x Kensington Lock
Rear Panel: 1x EDID Reset; 1x 1Gb Intel RJ45 LAN; 1x 2.5Gb Intel RJ45 LAN; 2x Antenna Jack; 3x HDMI 2.1 (Up to 4K@60Hz); 1x DC-In (19V)
Power supply: Universal 100-240V External 65W AC Adapter provided with UK power cord connects to 19V power socket.
Graphics: Integrated Intel Iris Xe Graphics; 3x Simultaneous HDMI 2.1 Outputs up to 4K@60Hz. The PL64 supports Extended Display Identification Data (EDID) emulation: content being displayed across multiple displays remains unaffected in the event of a temporary loss of power or connectivity issues.
Audio: Realtek ALC3251 HD Audio CODEC; Combined Line Out/Mic In/Headphone Out 3.5m Audio Jack and HDMI Audio.
WiFi: Built-in 802.11ax WiFi 6E module with Bluetooth 5.3 Support and 2x Antenna included.
OS Support: Windows 10 (64 bit) and Windows 11 (64 bit).
Measurements: 199.7 x 119.7 x 33.9 mm (W x D x H); Weight: 1.0KG; Colour: ECO Black, no-logo. Supports up to 50°C operational ambient temperature. Tested to the rigorous MIL-STD-810H standard, the PL64 has been subjected to extremes of temperature, altitude and humidity, and repeatedly dropped and vibrated to ensure that it is fit to perform in harsh conditions.
Mounting: The PL64 is compatible with VESA, Wall, Rack, and DIN mounts (not included).
Drivers: Drivers and BIOS
Memory: Up to 64GB supported on 2x DDR4 SODIMMs up to 3200MHz. We provide guaranteed compatible memory if purchased from this page or the Mini PC configure page.
| Specifications | ||
|---|---|---|
| Model | Asus PL64-i7-1255U | |
| Processor | Intel i7-1255U 10C12T, Up to 4.7GHz | |
| Architecture | Alder Lake | |
| Cooling | ||
| Fanless | Yes | |
| Memory | ||
| Maximum | 64GB | |
| Sockets | 2x SODIMM | |
| Type | DDR4 | 2400MHz, 2666MHz, 3200MHz |
| Graphics | ||
| Displays | 3 | |
| Outputs | 1x HDMI | 3840x2160 @ 60Hz max res. |
| 1x HDMI | 3840x2160 @ 60Hz max res. | |
| 1x HDMI | 3840x2160 @ 60Hz max res. | |
| Audio | ||
| Chipset | ALC3251 | Supports 4 Channel audio |
| Connectors | 1x 3.5mm Line Out/Mic In/Headphone Out | |
| Storage | ||
| Bays | 2 | |
| Types | 2x M.2 2280 Slot up to PCIe 4.0 x4 | |
| Network | ||
| LAN Ports | 2 | |
| LAN 0: | Intel 2.5Gbps | |
| LAN 1: | Intel 1Gbps | |
| Wireless | ||
| Type | 802.11ax WiFi 6E + BT5.3 | |
| USB | ||
| Connectors | 5 | |
| Type | 2x USB 3.2 Gen1 (5Gb/s) Type A | (Side) |
| 3x USB 3.2 Gen2 (10Gb/s) Type A | (Front) | |
| Expansion | ||
| M.2 WiFi | 1x M.2 Type-E 2230 slot for WiFi/BT | Populated by Wi-Fi Card |
| Serial | 2x RJ50 Serial COM port (Front) | RS232/422/485 |
| Power Supply | ||
| Type | External | |
| Input | 90-240 AC | C6 Power Connector |
| Output | 19V DC | |
| Power | 65W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 10
Windows 11 |
|
| Dimensions | ||
| W x D x H | 199.7 x 119.7 x 33.9 mm | |
| Volume | 0.81 litres | |
