Asus ROG STRIX B650E-I GAMING WIFI Mini-ITX Board with AMD Socket AM5 CPU Support, Up to 64GB DDR5, 4K@60Hz HDMI 2.1, 8K@60Hz USB-C, 2x M.2 with RAID inc. PCIe 5.0, 2x SATA 6Gb/s with RAID, 802.11ax 2x2 WiFi 6E, 2.5Gb Intel LAN, USB 3.2 Type-C, S/PDIF Audio Out
Asus ROG STRIX B650E-I GAMING WIFI | |
£310.80 inc. VAT | |
IN STOCK
(Checked 20:27)
USUALLY DESPATCHED NEXT BUSINESS DAY |

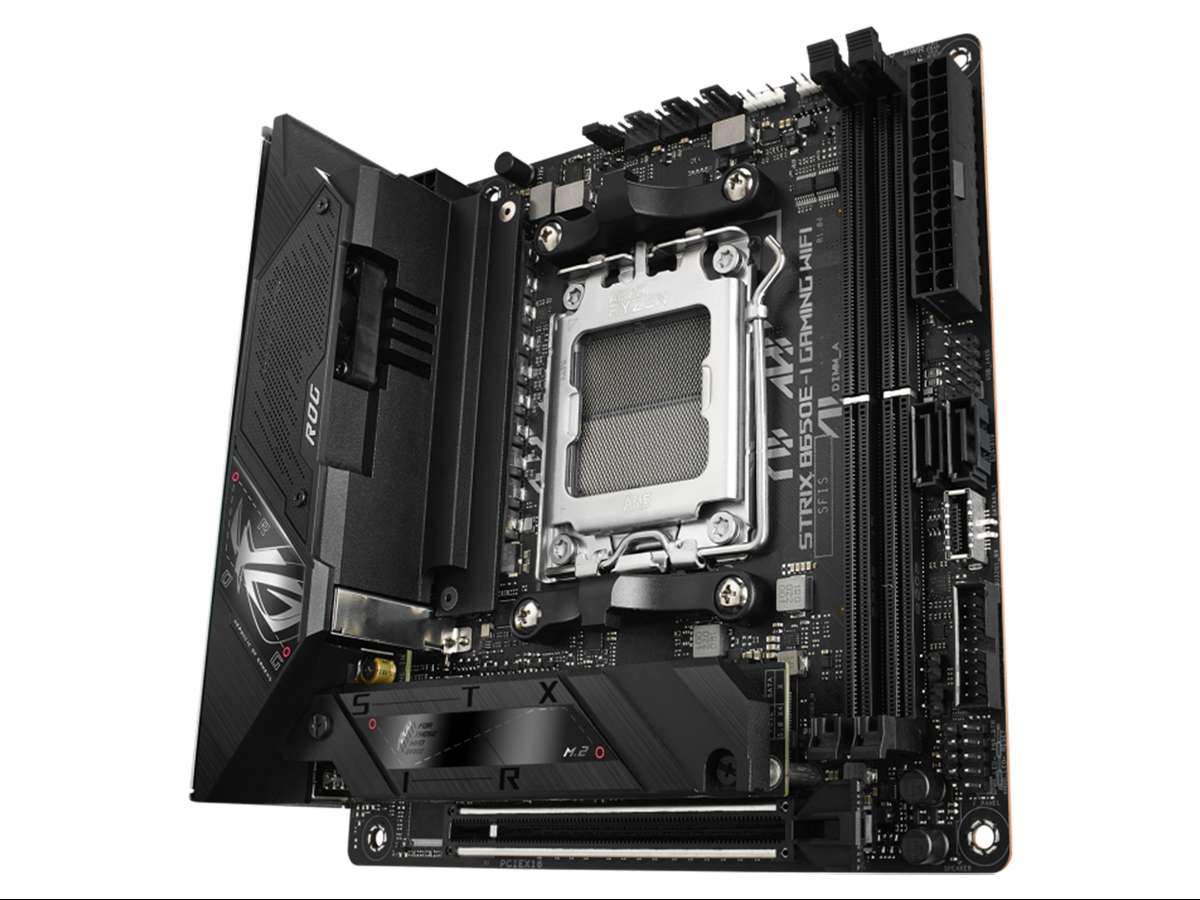

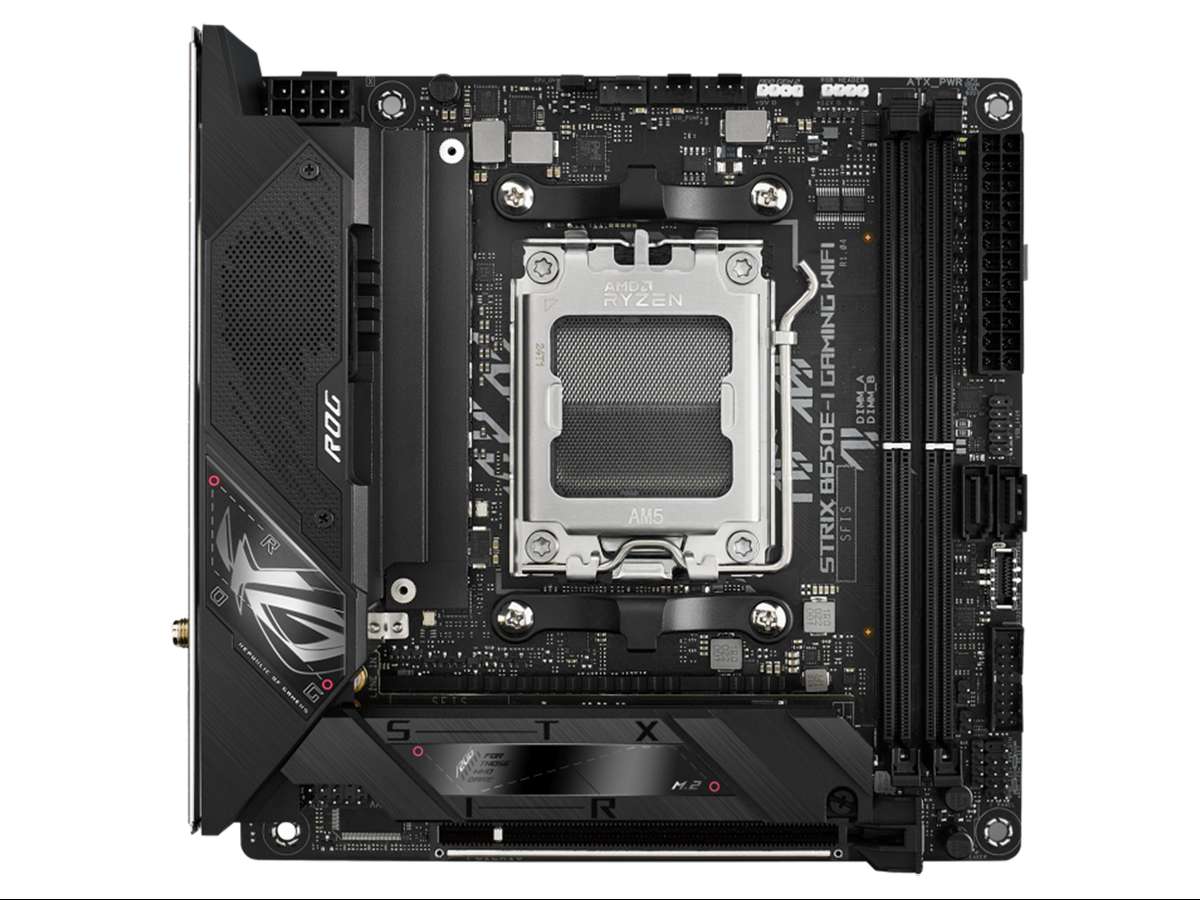

Asus ROG STRIX B650E-I GAMING WIFI Mini-ITX board with AMD B650 Chipset, supporting Zen 4 architecture AMD Socket AM5 Ryzen 7000 and 8000* CPUs and DDR5 memory.
Up to 64GB of DDR5 RAM; 2.5Gb Intel LAN; 2x SATA 6Gb/s with AMD RAID 0/1; 2x M.2 Slots with AMD RAID 0/1 (1 supports PCIe 5.0 x4, 1 supports PCIe 4.0 x4); 5x USB 3.2 Gen2 Type-A and 1x USB 3.2 Gen2 Type-C; 4K@60Hz HDMI 2.1, 8K@60Hz over USB-C.
Update your BIOS: To ensure system stability and compatibility you must update your bios to at least version 1616. If you purchase a board, RAM and CPU from us we can update your BIOS free of charge (email us before purchase or just after purchase).

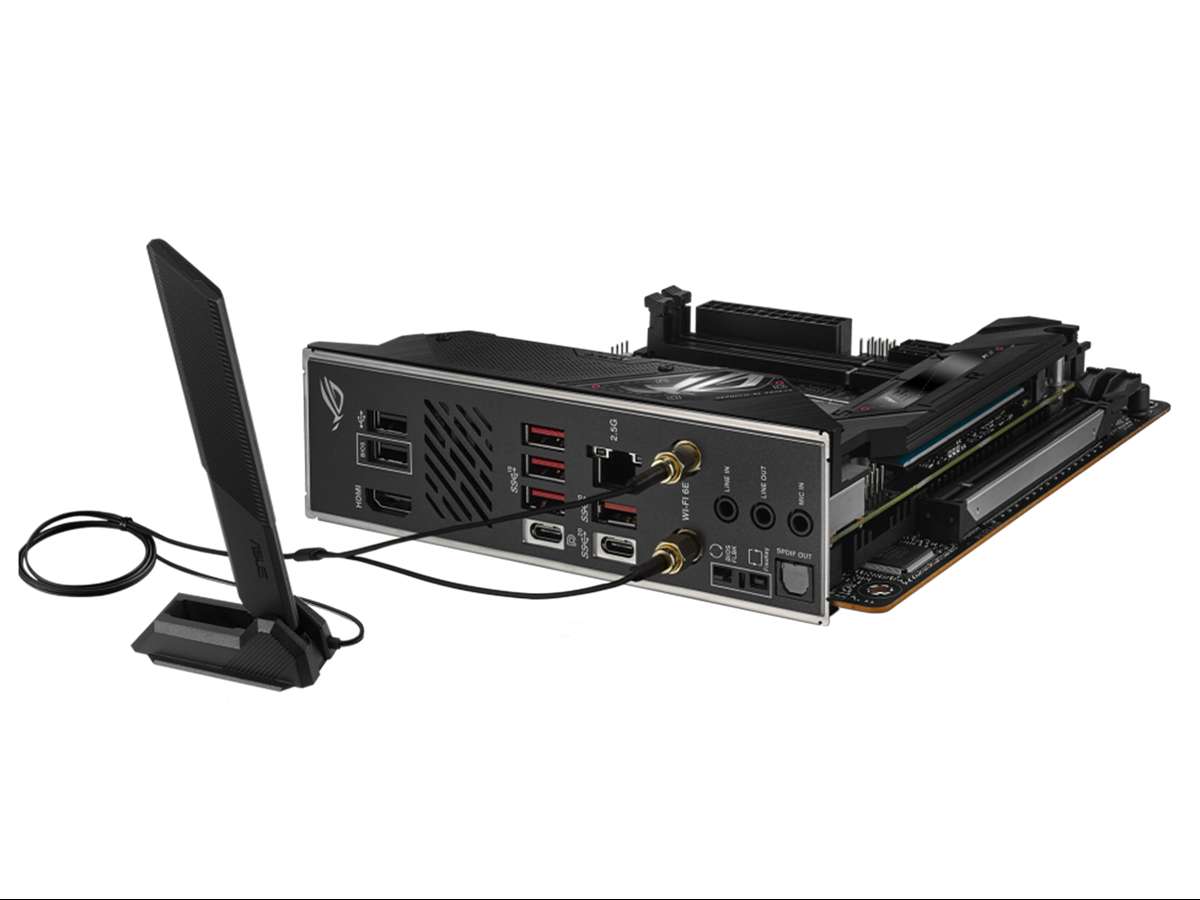

Rear Panel Connectors: 2x USB 2.0 ports (lower port supports BIOS FlashBack); 1x HDMI port (supports up to 4K@60Hz); 4x USB 3.2 Gen2 ports; 1x Type-C USB 3.2 Gen2with DP Alt mode (supports up to 8K@60Hz); 1x Intel 2.5Gb RJ45 LAN port; 1x Type-C USB 3.2 Gen 2x2 port; 2x Antenna connectors; 3x LED-illuminated 3.5mm audio jacks; 1x BIOS FlashBack button (update BIOS without CPU or RAM connected); 1x FlexKey button (configurable button, reboots by default); 1x Optical S/PDIF out port.
Front Panel Headers: 1x 10-1 pin System Panel header; 1x Front Panel Audio header (AAFP); 1x USB 3.2 Gen2 connector for USB Type-C; 1x USB 3.2 Gen1 header supports 2 additional USB 3.2 Gen1 ports (aka USB 3.0 header); 1x USB 2.0 header supports 2 additional USB 2.0 ports
Storage Connectors: 2x M.2 Slots with AMD RAID 0/1: 1x M.2 Slot supporting Type 2242/2260/2280 up to PCIe 5.0 x4, 1x M.2 Slot supporting Type 2242/2260/2280 up to PCIe 4.0 x4; 2x SATA 6Gb/s with AMD RAID 0/1;
Board Power: 1x 24-pin ATX Power Connector; 1x 8-pin +12V Power Connector; 12+2 Phase VRMs
Cooling: 1x 4-Pin CPU Fan Header; 1x 4-Pin Chassis Fan Header; 1x 4-Pin AIO Pump Header; 1x 4-Pin VRM Heatsink Fan Header; 1x VRM MOSFET Heatsink with Fan; 1x Aluminium M.2 Heatsink.
Other Headers: 1x Addressable Gen 2 header; 1x Aura RGB header; 1x Clear CMOS header; 1x CPU Over Voltage jumper; 1x Thermal Sensor header.
Integrated Graphics: Currently all Ryzen 7-series and 8-series CPUs have integrated graphics, so a graphics card is not usually required. If using a graphics card please choose an appropriate power supply.
*8000G CPU Support: To use an 8000G CPU (8500G, 8600G, 8700G), first update the BIOS to at least version 1809 using the Bios Flashback function (no CPU required).
Audio: ROG SupremeFX 7.1 Surround Sound with ALC4080 Audio CODEC; 120dB SNR stereo playback output and 113dB SNR recording input; up to 32-Bit/384 kHz playback; Savitech SV3H712 AMP; LED-illuminated audio jacks; Rear optical S/PDIF out port.
Board Expansion: PCI Express 5.0 x16 Slot; M.2 Type-E Slot populated by AMD RZ616 Wi-Fi 6E card.
Integrated IO Shield: This board has an integrated IO shield / VRM heatsink which will prevent usage within 1U chassis due to its height.
Wireless LAN: AMD RZ616 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) & Bluetooth 5.2 card, Supports 2.4/5/6GHz frequency bands.
Windows Compatibility: The ROG STRIX B650E-I GAMING is compatible with Windows 11 64-bit and 10 64-bit. It is not compatible with Windows 7.
Downloads: BIOS, Documentation and Drivers.
Package Contents: Motherboard, 2x SATA 6Gb/s cables, ROG USB2.0 splitter cable, Panel cable, Thermal pad for M.2, ASUS Wi-Fi moving antennas, Cable ties package, M.2 bracket, M.2 SSD screw package, M.2 Q-Latch package for M.2 backplate, ROG key chain, sticker and thank you card, Rubber package for M.2 backplate, User guide.
Suitable Memory: The ROG STRIX B650E-I GAMING supports up to 64GB on two DDR5 DIMMs (32GB per DIMM, 4800MHz to 5200MHz in standard mode, up to 6400+ MHz in OC mode). Memory support is built into the BIOS - only DIMMs listed on Asus' QVL are supported. ECC Memory is supported with AMD 8500G, 8600G and 8700G CPUs. Fully qualified and guaranteed compatible DIMMs are available in our 'you may also require' section.
Specifications | ||
---|---|---|
Model | Asus ROG STRIX B650E-I GAMING WIFI | |
Processor Socket | AMD AM5 | |
Architecture | Ryzen | |
Chipset | AMD B650 | |
CPU Compatibility | Raphael (Zen4 e.g 7600), Phoenix (Zen4 e.g. 8700G) | |
Cooling | ||
Connectors | 1x AIO Pump Connector | 4-pin |
1x CPU Fan Connector | 4-pin | |
1x Chassis Fan Connector | 4-pin | |
Graphics | ||
Displays | 2 | |
Outputs | 1x USB Type-C | 8K @ 60Hz max res. |
1x HDMI 2.1 | 4096x2160 @ 60Hz max res. | |
Memory | ||
Maximum | 64GB | |
Sockets | 2x DIMM | |
Types | DDR5/DDR5 ECC | 4800MHz, 5000MHz, 5200MHz |
Storage | ||
Ports | 4 | |
Type | 1x M.2 2242/2260/2280 Slot up to PCIe 4.0 x4 | Underside |
1x M.2 2242/2260/2280 Slot up to PCIe 5.0 x4 | Board | |
2x SATA 6Gb/s | ||
Network | ||
LAN Ports | 1 | |
LAN 0: | Intel 2.5Gbps | |
USB | ||
Connectors | 13 | |
Types | 2x USB 2.0 Type A | Rear |
2x USB 2.0 on pin header | Board Pins | |
2x USB 3.2 Gen1 (5Gb/s) on pin header | Board Pins | |
4x USB 3.2 Gen2 (10Gb/s) Type A | Rear | |
1x USB 3.2 Gen2 (10Gb/s) Type C with DisplayPort | Rear | |
1x USB 3.2 Gen2 Type C (10Gb/s) on pin header | Board Pins | |
1x USB 3.2 Gen2x2 (20Gb/s) Type C | Rear | |
Wireless | ||
Type | AMD 2x2 Wi-Fi 6E RZ616 with Bluetooth 5.2 | |
Audio | ||
Chipset | Realtek ROG-ALC4080 | Supports 7.1 Channel audio |
Connectors | 1x 3.5mm Mic | |
1x 3.5mm Front Speaker | ||
1x 3.5mm Line In | ||
1x S/PDIF Out Connector | ||
Expansion | ||
PCI-Express | 1x PCI Express 5.0 x16 | |
M.2 WiFi | 1x M.2 Type-E 2230 slot for WiFi/BT | Populated by Wi-Fi/BT Card |
Other I/O Ports | ||
2x 2.4GHz/5GHz/6GHz Antenna Connector | ||
Power | ||
24-pin ATX power connector | ||
8-pin ATX +12V power connector | ||
Additional Board Headers | ||
AURA RGB Header | ||
Addressable Gen 2 header | ||
CPU Over Voltage jumper | ||
Clear CMOS Header | ||
Front Panel Audio Connector | ||
Speaker Header | ||
System Front Panel Header | ||
Thermal Sensor Connector | ||
OS Support | ||
Windows 10 64-bit | ||
Windows 11 64-bit |
