ZBOX edge MI351 very low profile Mini PC with 4C4T N100 Processor, 4K HDMI, 4K DisplayPort, M.2 Storage, 1Gb LAN, WiFi 6, Bluetooth 5.2, Up to 16GB DDR5
| Zotac ZBOX edge MI351 Mini PC with N100 | |
| £186.00 inc. VAT | |
|
IN STOCK
(Checked 01:56)
USUALLY DESPATCHED IN 1-2 BUSINESS DAYS |
Zotac ZBOX edge MI351 Barebones Mini PC with a 0.8GHz up to 3.4GHz Quad-Core Intel N100 processor, 1x Gigabit LAN, 4K HDMI, 4K DisplayPort, 4x USB 3.2, Wi-Fi 6, and Bluetooth 5.2. Very low profile - just 28.5mm tall.
Barebones or Fully Built: simply add a stick of DDR5 SODIMM memory and an M.2 storage drive to complete the internals of the ZBOX edge MI351, or we can build and install it for you.
Drive Bays: 1x M.2 Storage Slot (Supports Types 2242/2280, NVMe PCIe Gen3 x4 / SATA). We recommend Type 2280 PCIe M.2 drives for maximum performance.
Memory: 1x 262-pin socket supports up to 16GB DDR5 4800MHz SODIMM.

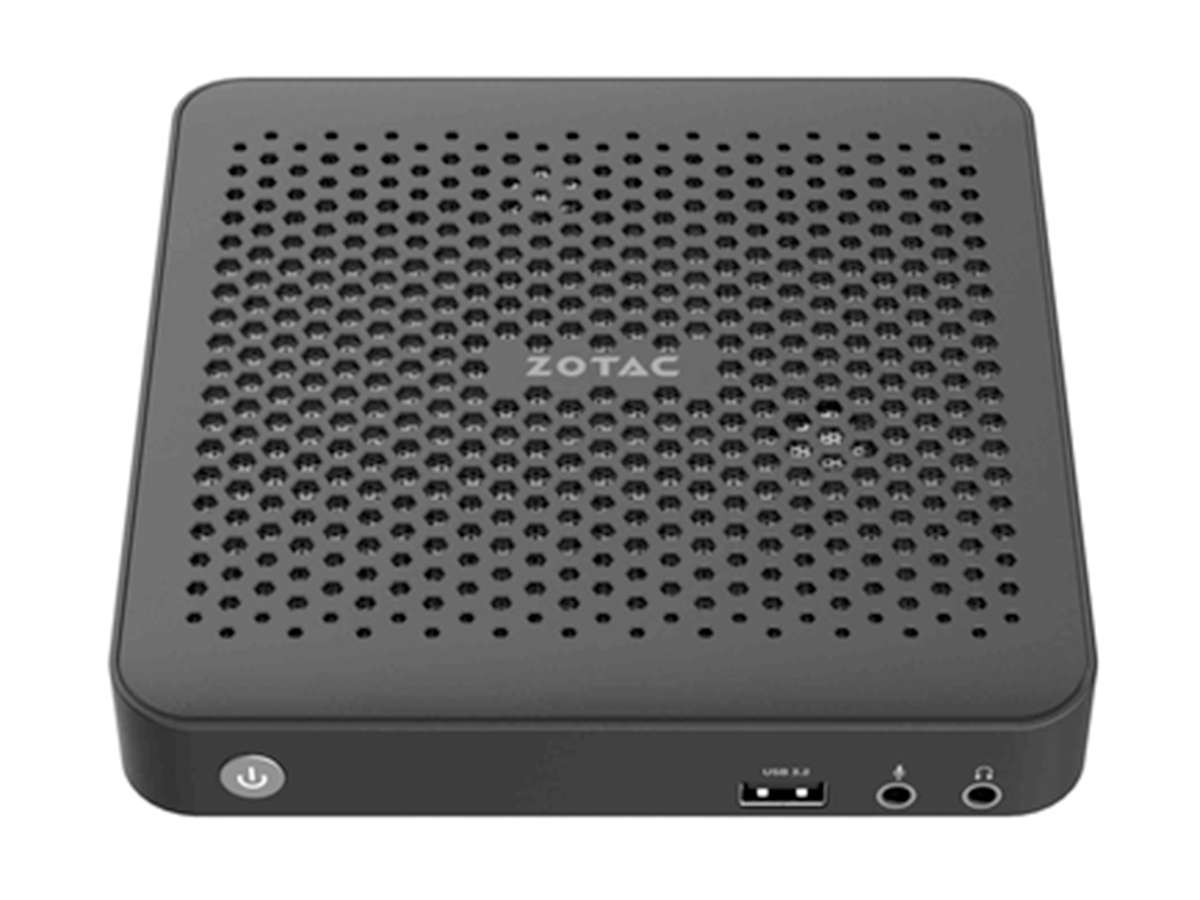

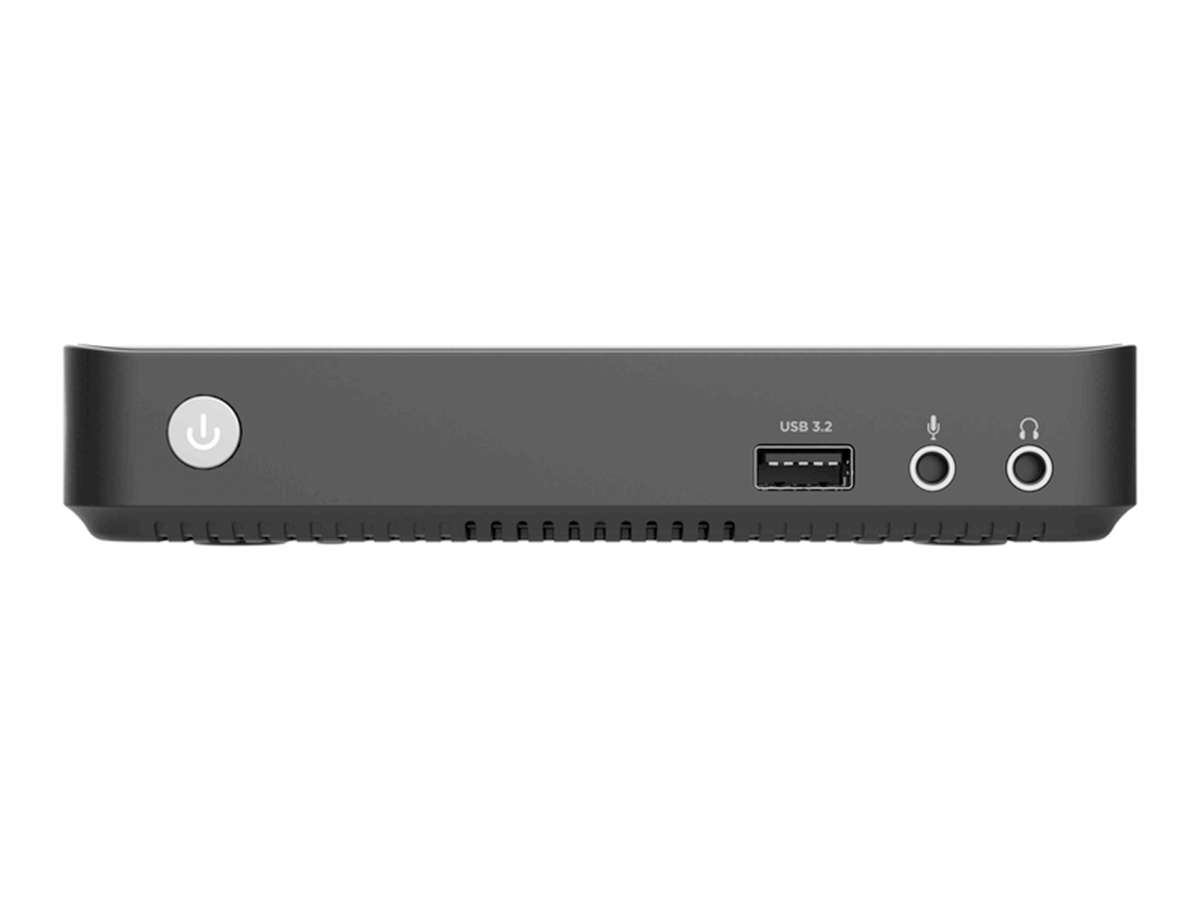

Front Panel: Power Switch; 1x USB 3.2 Gen2 Type A Port; 3.5mm Mic & Headphone Jacks.

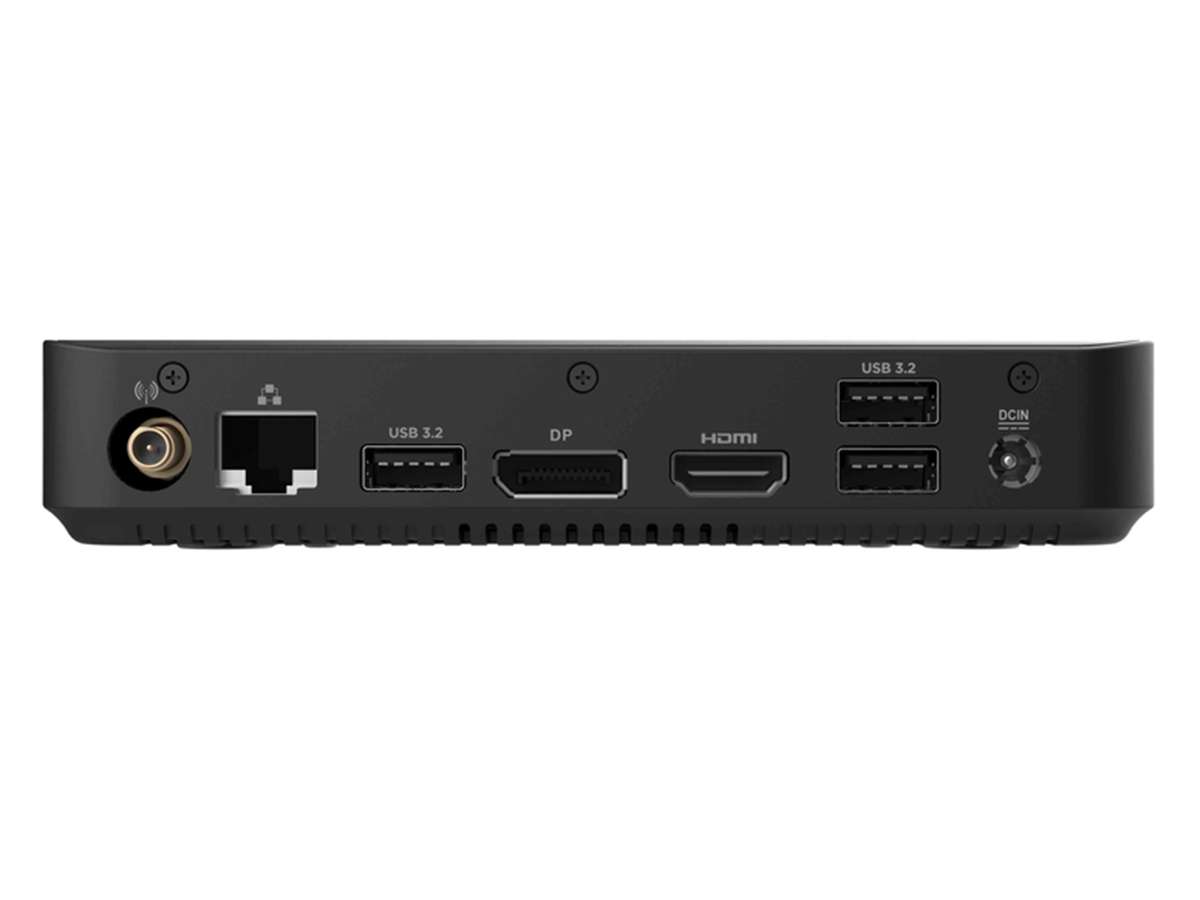

Rear Panel: Wi-Fi Antenna Connector; Realtek 10/100/1000 Mbps LAN port; 3x USB 3.2 Gen2 Type A Ports; 1x DisplayPort 1.4 (up to 4096x2160 @ 60Hz); 1x HDMI 2.0 (up to 3840x2160 @ 60Hz); 1x 19V Power Socket (connects to supplied AC Adapter).
2 Graphics Outputs: The ZBOX edge MI351 has 1x HDMI 2.0 and 1x DisplayPort 1.4 output, both supporting 4K @ 60Hz.
Power supply: Universal 100-240V External 40W AC Adapter with UK power cord connects to 19V power socket.

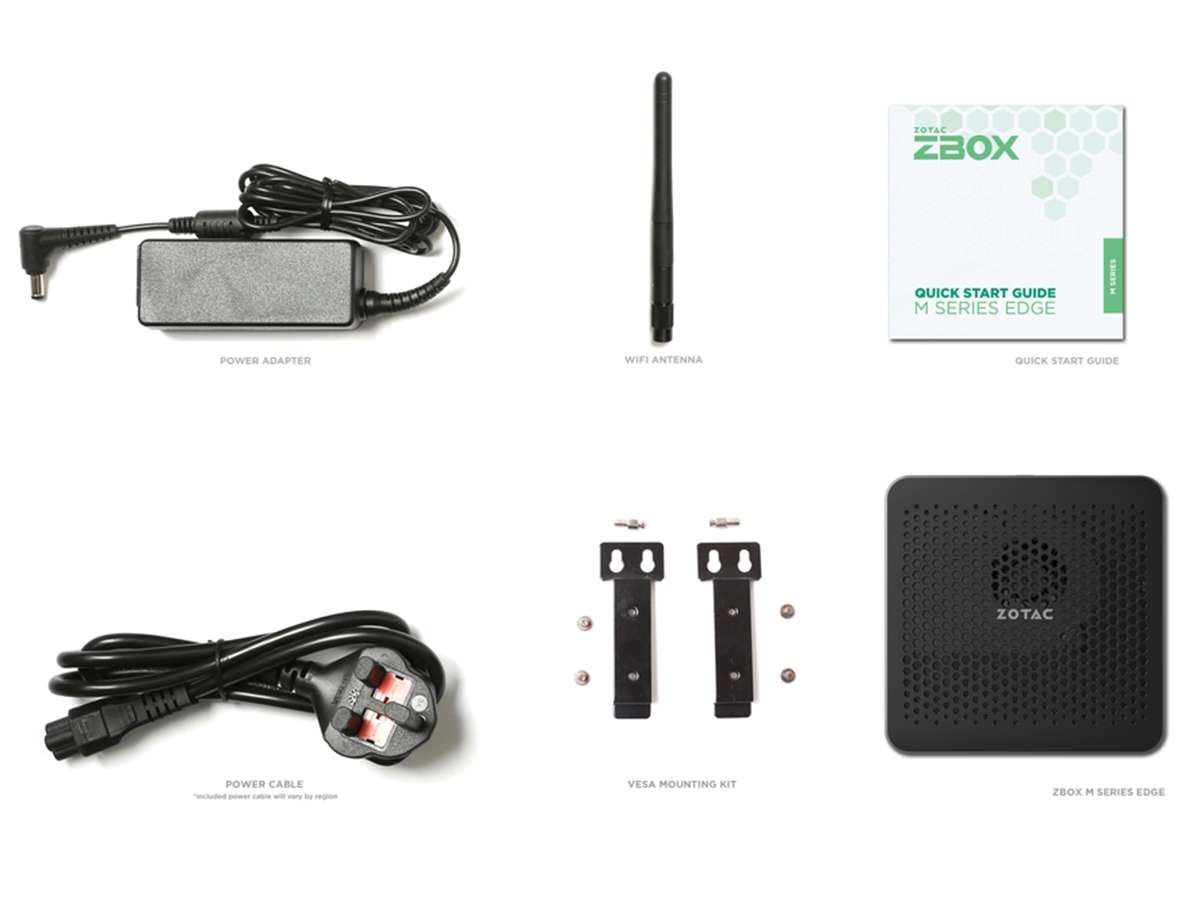

Accessories: AC Adapter; Wi-Fi antenna; 2x VESA Mount brackets (with screws); UK Power Cord (other power cords available); Warranty card; Quick Install Guide.
WiFi: Wi-Fi 6 and Bluetooth 5.2 provided by Mini PCI-E card fitted to motherboard.
Measurements: 149.5 x 28.5 x 149.5 mm / 5.89 x 1.12 x 5.89in (W x H x D); Volume: 0.638 litres.
Drivers and Manual: Windows 11 64-bit Drivers; Full Specifications; Manual (PDF).
*Note: The ZBOX edge MI351 supports up to 16GB DDR5 memory on a 1.1V DDR5 SODIMM. If purchased through this page or the configure page, we will provide guaranteed compatible memory.
| Specifications | ||
|---|---|---|
| Model | Zotac ZBOX edge MI351 Mini PC with N100 | |
| Processor | Intel N100 4C4T, Up to 3.4GHz | |
| Architecture | Alder Lake N | |
| Cooling | ||
| Fanless | No | |
| Memory | ||
| Maximum | 16GB | |
| Socket | 1x SODIMM | |
| Type | DDR5 | 4800MHz |
| Graphics | ||
| Displays | 2 | |
| Outputs | 1x DisplayPort (1.4) | 4096x2160 @ 60Hz max res. |
| 1x HDMI (2.0) | 3840x2160 @ 60Hz max res. | |
| Audio | ||
| Connectors | 1x 3.5mm Mic 1x 3.5mm Headphone | (Front) (Front) |
| Storage | ||
| Bays | 1 | |
| Type | 1x M.2 (NVMe/SATA) 2242/2280 Slot | |
| Network | ||
| LAN Ports | 1 | |
| Wireless | ||
| Type | WiFi 6 with Bluetooth 5.2 | |
| USB | ||
| Connectors | 4 | |
| Type | 3x USB 3.2 Type A | (Rear) |
| 1x USB 3.2 Type A | (Front) | |
| Expansion | ||
| Mini PCI-Express | 1x Mini PCI-E (occupied by WiFi card) | Half Length |
| Power Supply | ||
| Type | External | |
| Input | 100-240 AC | C6 Power Connector |
| Output | 19V DC | |
| Power | 65W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 11 64-bit
|
|
| Dimensions | ||
| W x D x H | 149.5 x 149.5 x 28.5 mm | |
| Volume | 0.636 litres | |
