picoPSU-80 12V Plug-in DC-DC ATX PSU *5 Year Warranty*

picoPSU-80 12V
SPECIAL OFFER
Usually £29.00
£25.00
£30.00 inc. VAT
IN STOCK (Checked 00:00)

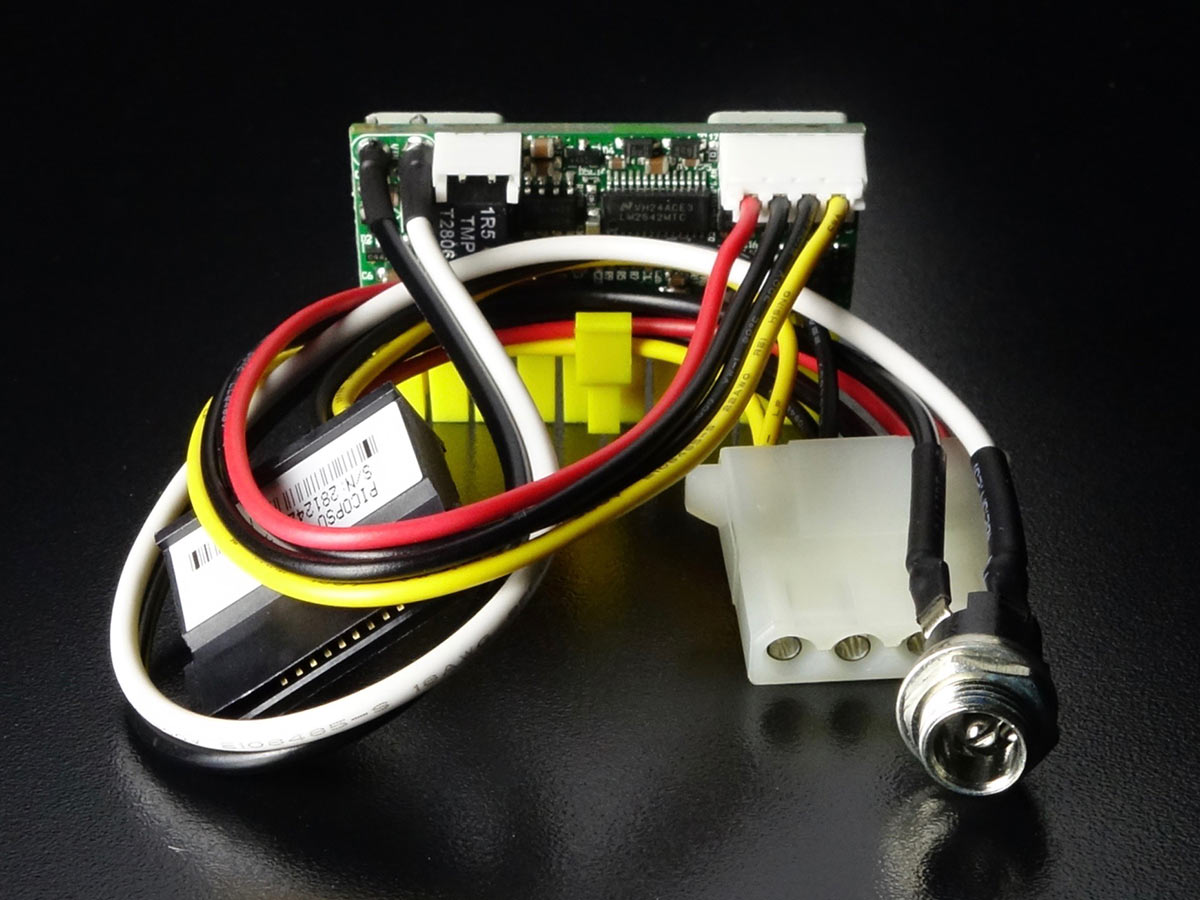

The picoPSU-80 plugs directly into a motherboard ATX connector and measures just 45 x 17 x 32 mm - about the size of two AA batteries. The picoPSU-80 generates up to 80 Watts of power from a 12V DC supply connected by a 2.5mm/5.5mm Jack, at over 96% efficiency. An attached cable harness provides:

  • 20pin ATX Connector
  • SATA Power Connector
  • Molex (ATA) HDD Power

Compatibility: The picoPSU-80 can power all our Mini-ITX boards with <35W TDP processors e.g. Celeron but also earlier Geode, C3, C7, Atom and Fusion processors. More powerful picoPSUs offer additional connectors and more headroom for additional devices. If you are considering using with a board not on our site, please email us to check compatibility.

12V AC Adapter Required: You will need a 12V AC Adapter to use this picoPSU. Please read their product listings to determine which is most suitable for you. Compatible Universal AC Adapters:

Adding more SATA drives: The picoPSU-80 has one SATA connector and a Molex connector. To power more SATA drives use a Molex to SATA or 2x SATA cable.

P4 Power Connectors: If your board has a 4-pin 12V P4 power connector, you will need to use the 12V P4 Extension Cable for picoPSU-80, or a Molex to 12V P4 Power Cable, or use the picoPSU-90.

Long Life: The picoPSU-80 is marked for long life production and is guaranteed to have a life cycle of 5 years or more.

Notes: Not suitable for use with batteries, unstable power sources or voltages other than 12V.

5 Year Warranty*: We are so confident in the build quality of our genuine picoPSUs that from June 1st 2016 we now offer a 5 year warranty when the picoPSU-80 is purchased together with one of our AC Adapters (currently 60W - 192W). Offer applies when being used to power appropriate rated components only with our AC Adapters. Please contact us if you are unsure what combination to purchase.

Installation Guide (PDF)

Specifications
Brand Pico
Model picoPSU-80 12V
Form Factor ATX picoPSU
Power Supply
Output Power 80W
Input
Input Voltage 12V
Connectors2.5/5.5mm 250mm
Output
Connectors20-pin ATX
ATA HDD Power 200mm
SATA Power 300mm
Cooling
Operating Temperature -20℃ - 65℃
Storage Temperature -40℃ - 65℃
TypeFanless
Dimensions
W x L x H 45 x 17 x 32 mm
Weight 45g
Manufacturer's Warranty
Duration 60* months
Features
  • 100% Silent Operation
  • Low Heat Dissipation (with efficiency over 96%)
  • 1U Compliant
Data provided by manufacturers. Mini-ITX.com assumes no responsibility or liability for any errors or omissions.
