C1-RACK-V2 1U Mini-ITX Rackmount Chassis
Suitable for many Mini-ITX motherboards, Universal 110-240V operation. Just 377mm (14.85in) deep.
Our own Mini-ITX compatible 1U case is constructed from Heavy-duty pre-plated SPGC cold-rolled steel. It supports up to 2x 3.5in hard drives (2.5in drives can be mounted in the 3.5in bays using an adapter kit), and one slimline optical drive bay (Mini-SATA cable will be required)
Updated: C1-RACK Version 2 updates the power supply to 80+ Bronze specification, reducing noise and increasing efficiency.

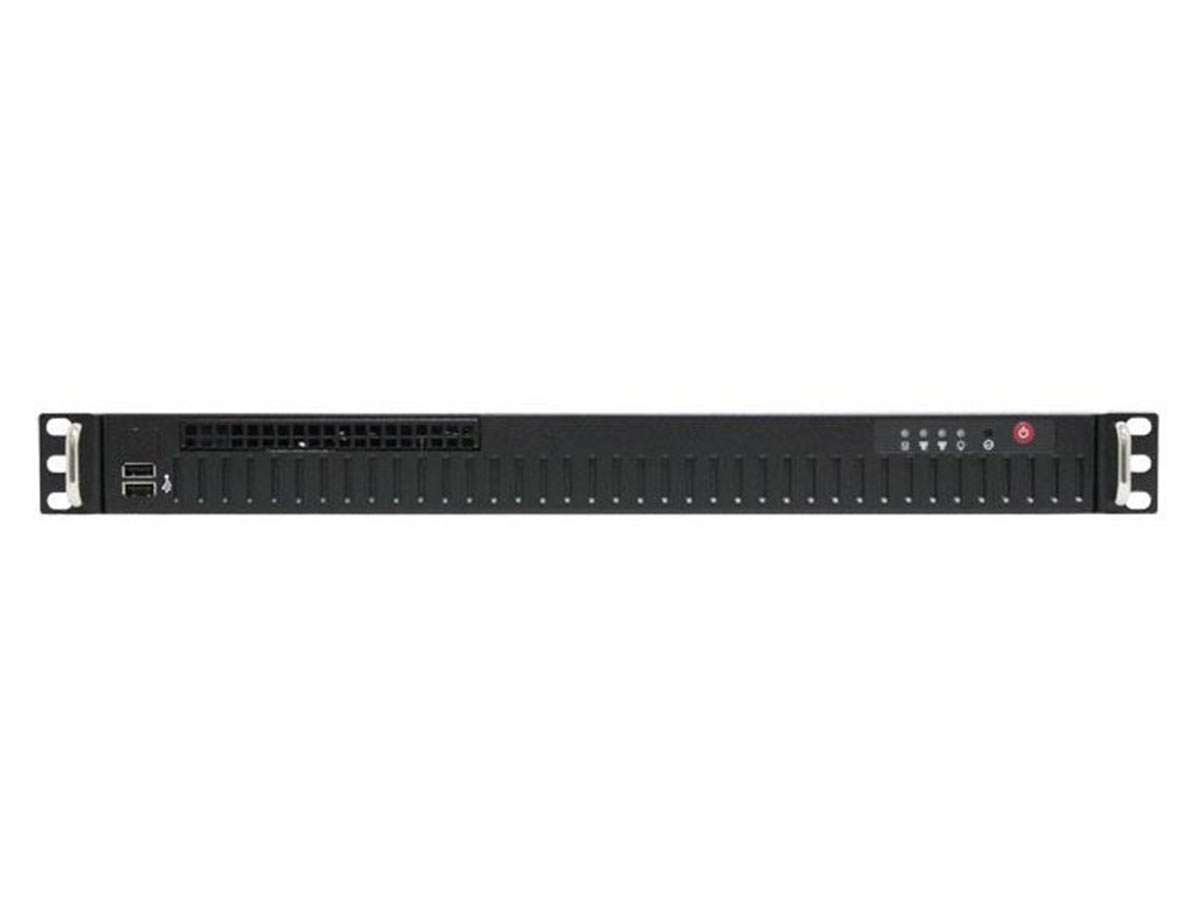

Front Panel: Power Switch and Embedded Reset Switch; 2x LAN LEDs, 1x HDD LED, 1x Power LED.
Cooling: One 97mm blower fan provides cooling (does not need to be connected for low power consumption boards).
PCI/PCI-E Support: To use a PCI or PCI-E card (up to 25cm long), add a flexible PCI or PCI-E Riser cable or solid PCI Riser card to your shopping basket.
Power Supply: Internal Universal 250W Flex ATX power supply with 2x Molex, 2x SATA, 20+4pin ATX, 8pin 12V and Molex to Floppy Adapter. An 8pin to 4pin 12V P4 cable is included within the accessories pack.
Mounting: For added stability in a 600mm deep rack, use the fixed rear mounting brackets. For flexibility in a 600mm to 800mm deep rack, use the 20in sliding rails. Please use the links on the left to purchase. Cage nuts may be required (generally provided with your rack hardware).
Supported Boards: Embedded Mini-ITX boards with ATX connectors and standard height heatsinks; Socket Mini-ITX boards fitted with suitable <30mm 1U heatsink.
Backplates: Our Universal Backplate design will fit any motherboard, after cutting to fit with metal snips. Backplates are not required to mount motherboards securely but do reduce dust ingress and improve airflow.
Measurements: 482.6 x 377.2 x 43.6mm (19in x 14.85in x 1.75in) Volume: 7.9 litres.
|Model||Mini-ITX C1-RACK-V2 1U|
|Bay 1||1x 3.5in|
|Bay 2||1x 3.5in|
|Bay 3||1x Slim optical|
|Max Width Card||Single|
|Fans Supported||1x 97mm||Rear|
|CPU Cooler||30mm||Max height|
|W x D x H||482.6 x 377.2 x 43.6 mm|
