IN WIN Chopin Pro Mini-ITX Case in Titanium Grey with 200W 80+ Gold PSU
IN WIN Chopin Pro Case in Titanium with 200W PSU | |
£166.80 inc. VAT | |
IN STOCK (Checked 03:10) |
The Chopin Pro packs a 200W 80 PLUS GOLD power supply into a stylish and well ventilated 4.45 litre chassis. Suitable for all Mini-ITX motherboards. Innovative dual Layer internal structure separates the motherboard (top) and drives (bottom) making this case suitably expandable whilst retaining its compact size.
Also available with a 150W PSU in Black and Silver.
Bays: 2x Internal 2.5in HDD/SSD drive bays.
Side Panel: 2x USB 3.0; 1x Headphone; 1x Microphone; Vented Mesh Side Panel design for ventilation and heat dissipation.
Customisable Side Panel: Four included coloured stripes allow you to customise the case depending on your own individual preferences.
Power supply: Internal 200W 80 PLUS GOLD ATX power supply with quiet cooling fan. PSU loom has 20+4pin ATX, 4+4pin 12V, 1x SATA, 1x Floppy power connectors. SATA to 2x SATA adapter included (if 2x 2.5in drives required).

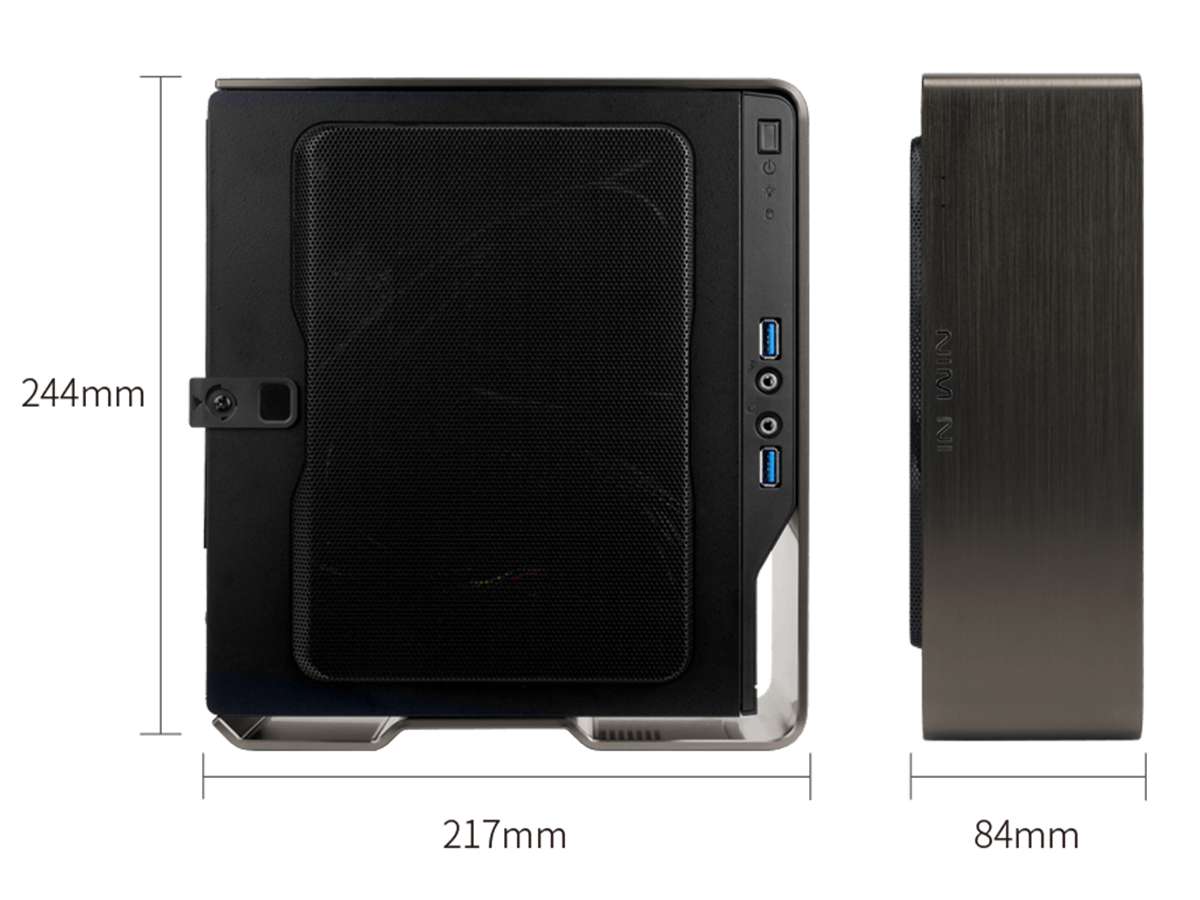

Measurements: 84mm (W) x 244mm (H) x 217mm (D) (3.3in x 9.6in x 8.6in). Volume: 4.45 litres
Supported boards: All Mini-ITX boards with ATX connectors including Intel Socket Mini-ITX boards with standard retail heatsinks.
Building Tips: Use an M.2 or mSATA drive fitted directly to the board instead of a 2.5in drive to reduce internal cabling.
Alternative Heatsinks: CPU coolers up to 43mm in height are supported. We recommend the Noctua NH-L9i for Intel boards. The Wraith Stealth heatsink provided with some AMD APUs can be fitted if the plastic guard is removed before installation (3200G, 5600G, 5700G).
Specifications | ||
---|---|---|
Model | IN WIN Chopin Pro 200W | |
Case Type | Compact | |
Colour | Black | |
Storage | ||
Bays | 2 | |
Bay 1 | 1x 2.5in | |
Bay 2 | 1x 2.5in | |
Cooling | ||
Fanless | Yes | |
CPU Cooler | 43mm | Max height |
I/O | ||
USB Connectors | 2 | |
2x USB 3.0 Type A | Side | |
Audio | 1x 3.5mm Mic
1x 3.5mm Headphone |
Side
Side |
Power Supply | ||
Included | Yes | |
Power | 200W | |
Size | ATX | |
Dimensions | ||
W x D x H | 84 x 217 x 244 mm | |
Volume | 4.45 litres |
