IN WIN Chopin Mini-ITX Case in Silver with 150W PSU

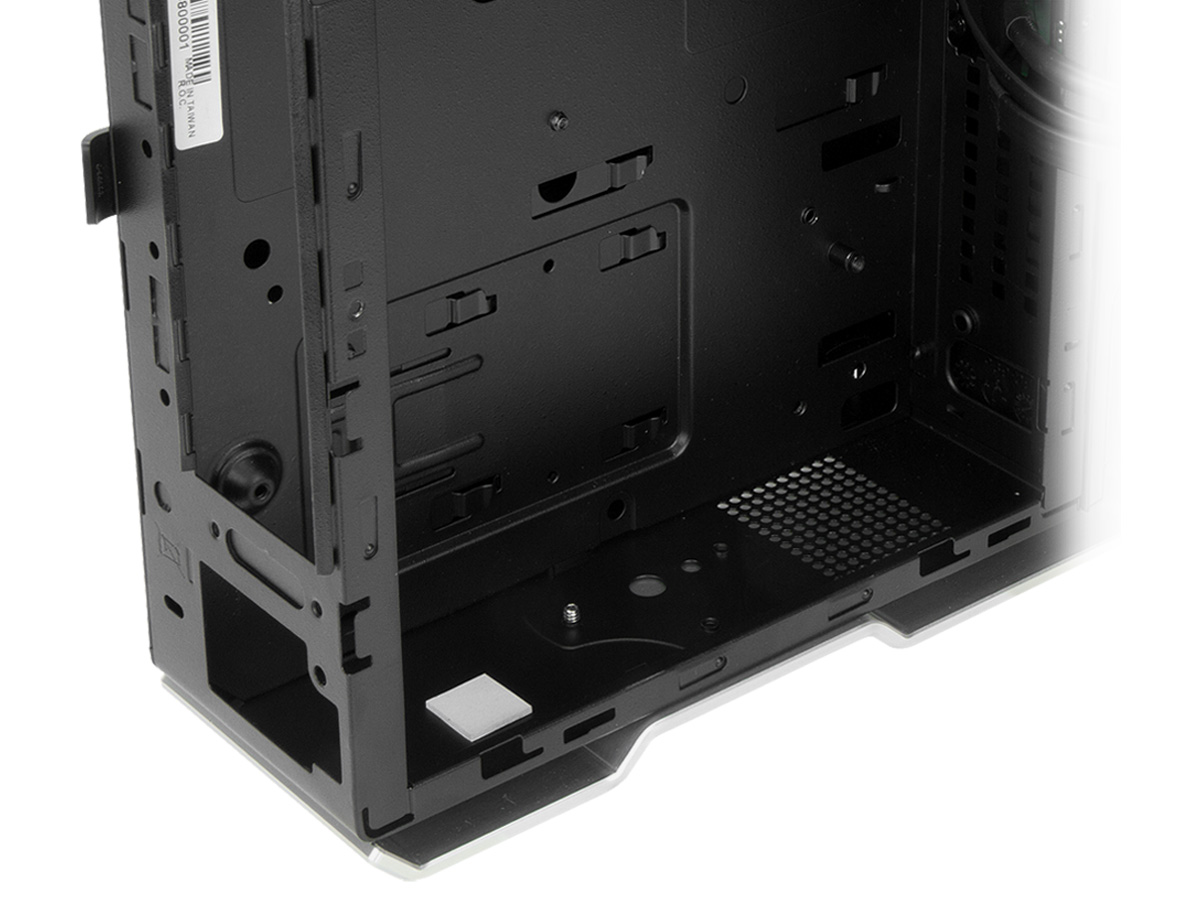

The Chopin packs a 150W 80 PLUS power supply into a stylish and well ventilated 4.45 litre chassis. Suitable for all Mini-ITX motherboards. Innovative dual Layer internal structure separates the motherboard (top) and drives (bottom) making this case suitably expandable whilst retaining its compact size.
Bays: 2x Internal 2.5in HDD/SSD drive bays.
Side Panel: 2x USB 3.0; 1x Headphone; 1x Microphone; Vented Mesh Side Panel design for ventilation and heat dissipation.

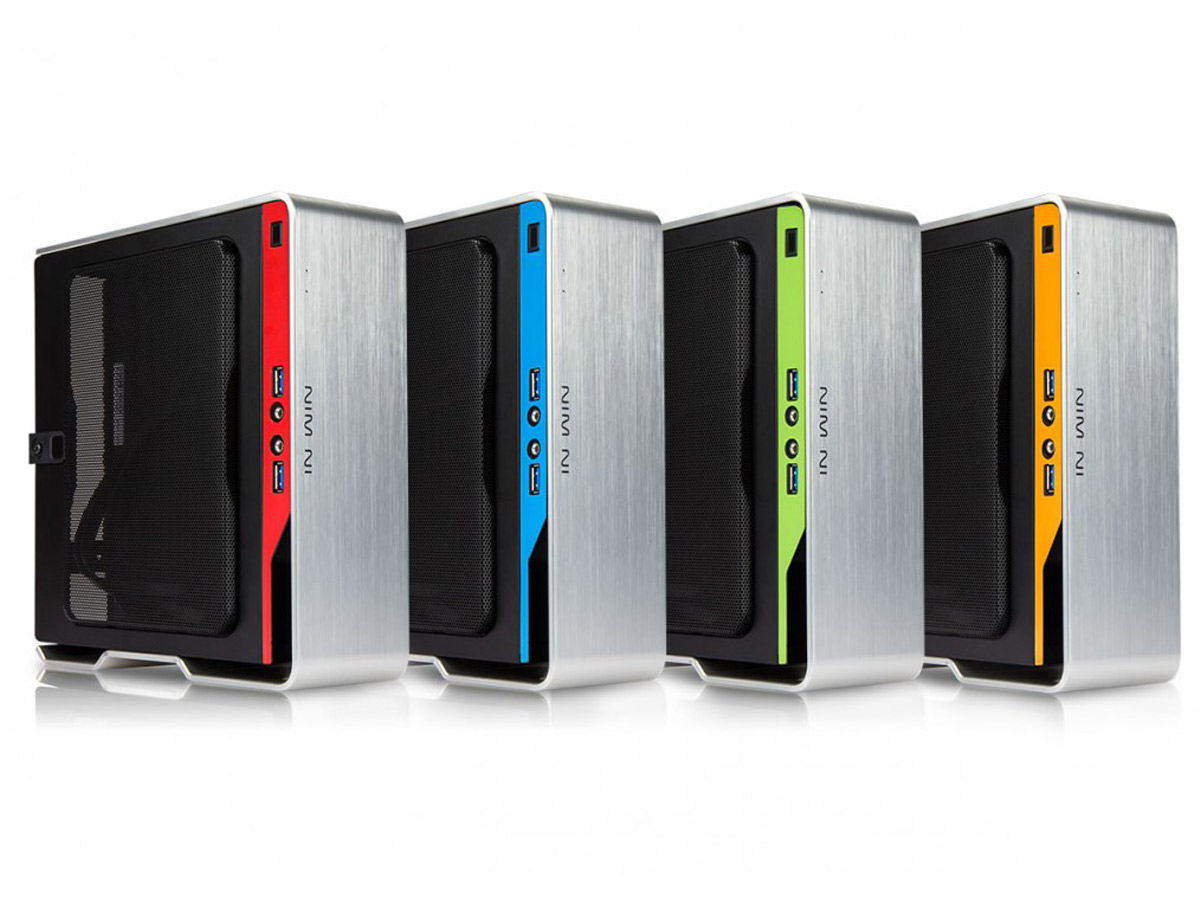

Customisable Side Panel: Four included coloured stripes allow you to customise the case depending on your own individual preferences.

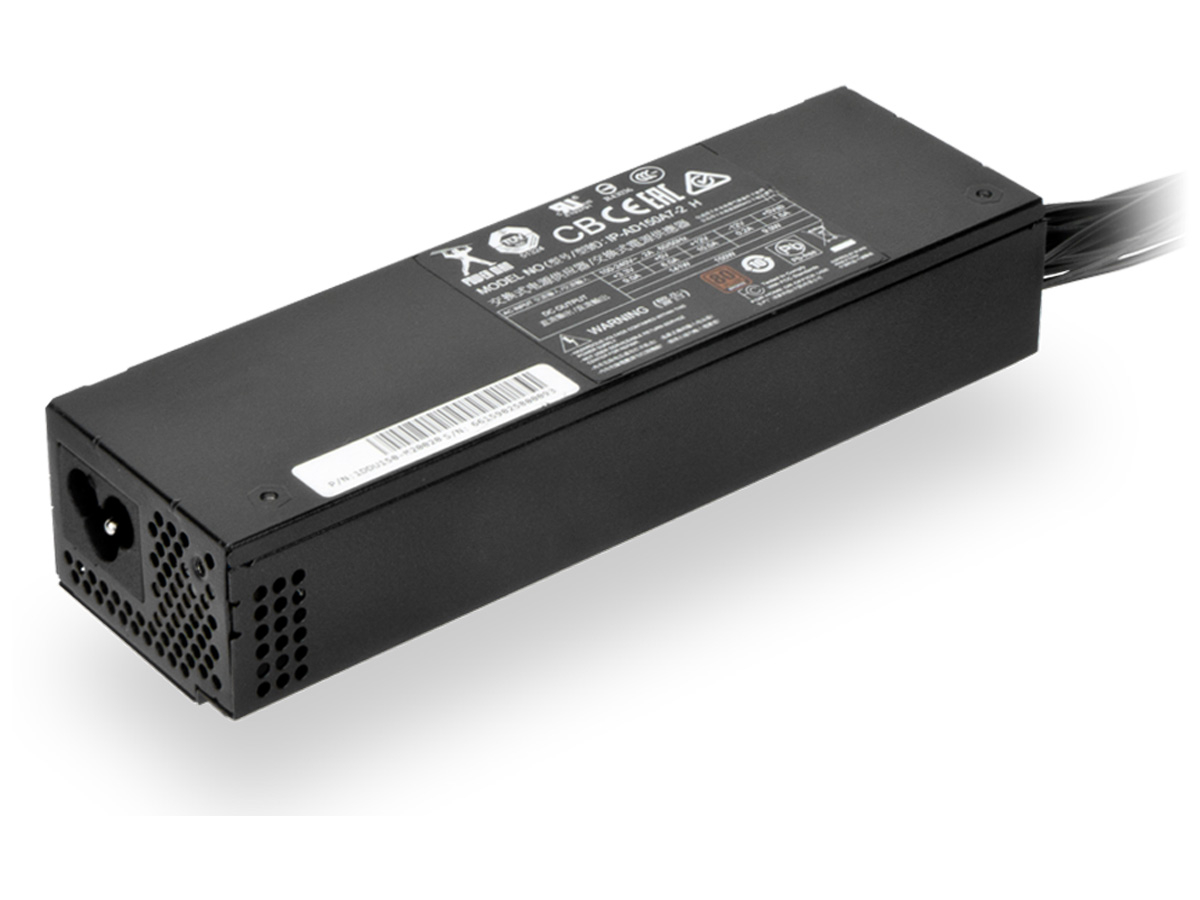

Power supply: Internal 150W 80 PLUS ATX power supply with quiet cooling fan. PSU loom has 20+4pin ATX, 4+4pin 12V, 1x SATA, 1x Floppy power connectors. SATA to 2x SATA adapter included (if 2x 2.5in drives required).
Measurements: 84mm (W) x 244mm (H) x 217mm (D) (3.3in x 9.6in x 8.6in). Volume: 4.45 litres
Supported boards: All Mini-ITX boards with ATX connectors including Intel Socket Mini-ITX boards with standard retail heatsinks. Not recommended for "Gaming" style socket boards, due to their power requirements (instead use the Chopin Pro).
Building Tips: Use an M.2 or mSATA drive fitted directly to the board instead of a 2.5in drive to reduce internal cabling.
Alternative Heatsinks: CPU coolers up to 43mm in height are supported. We recommend the Noctua NH-L9i for Intel boards. The Wraith Stealth heatsink provided with some AMD APUs can be fitted if the plastic guard is removed before installation (3200G, 5600G, 5700G).
|Model||IN WIN Chopin 150W|
|Bay 1||1x 2.5in|
|Bay 2||1x 2.5in|
|CPU Cooler||43mm||Max height|
|2x USB 3.0 Type A||Side|
|Audio||1x 3.5mm Mic
1x 3.5mm Headphone
|W x D x H||84 x 217 x 244 mm|
