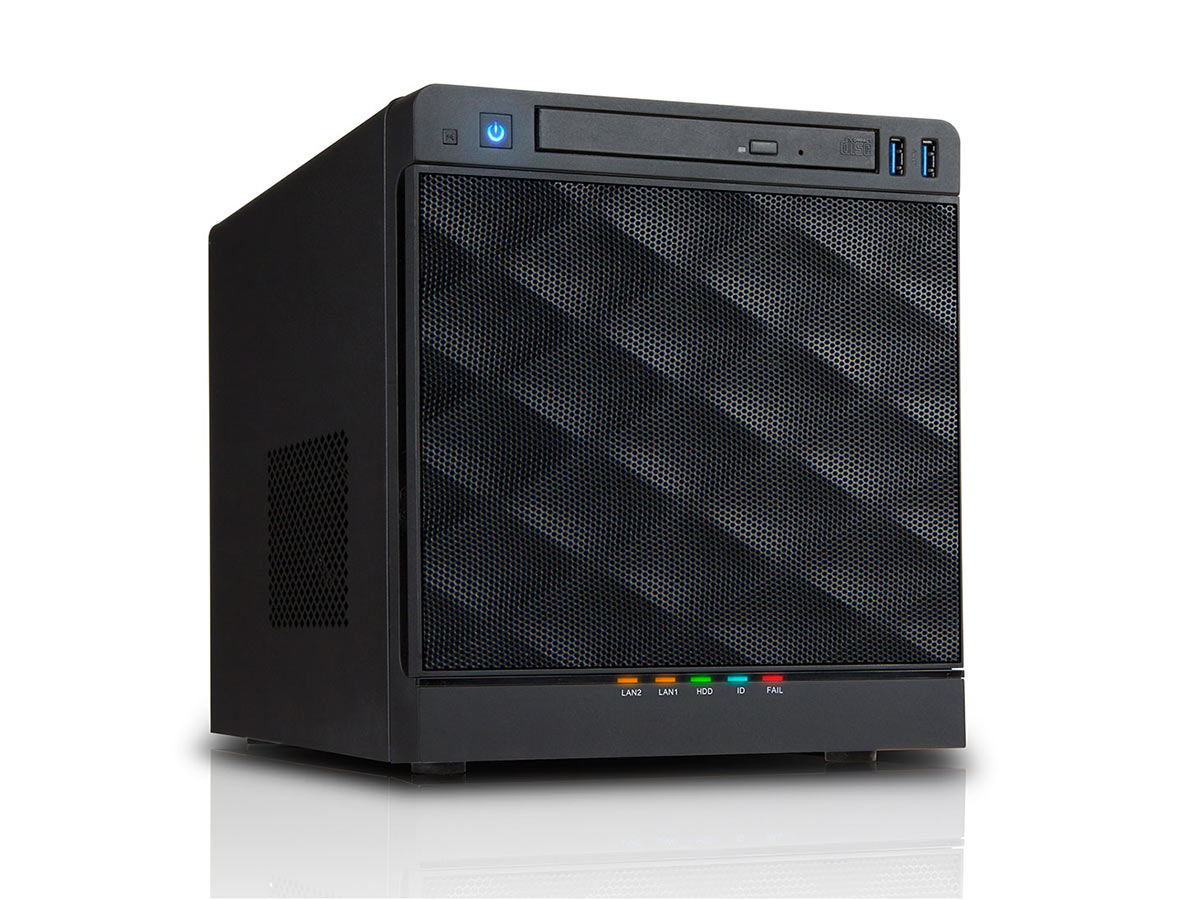

IN WIN MS04 Mini 4 Bay Server Tower with 4x Hot Swap bays and 265W PSU
| IN WIN MS04 Mini Server Tower 265W | |
| £178.80 inc. VAT | |
|
PRE ORDER
Lead time usually 3-5 days |
MS04 NAS Server Tower Chassis with support for 4x Lockable Hot Swap drives, 2.5in OS drive and Slimline Optical Drive. Flexible design with Removable Motherboard Tray, USB 3.0 and included 265W Flex ATX PSU.
Front Panel: Reset Button; Illuminated Power Button; 2x USB 3.0; 5x Activity LED's.

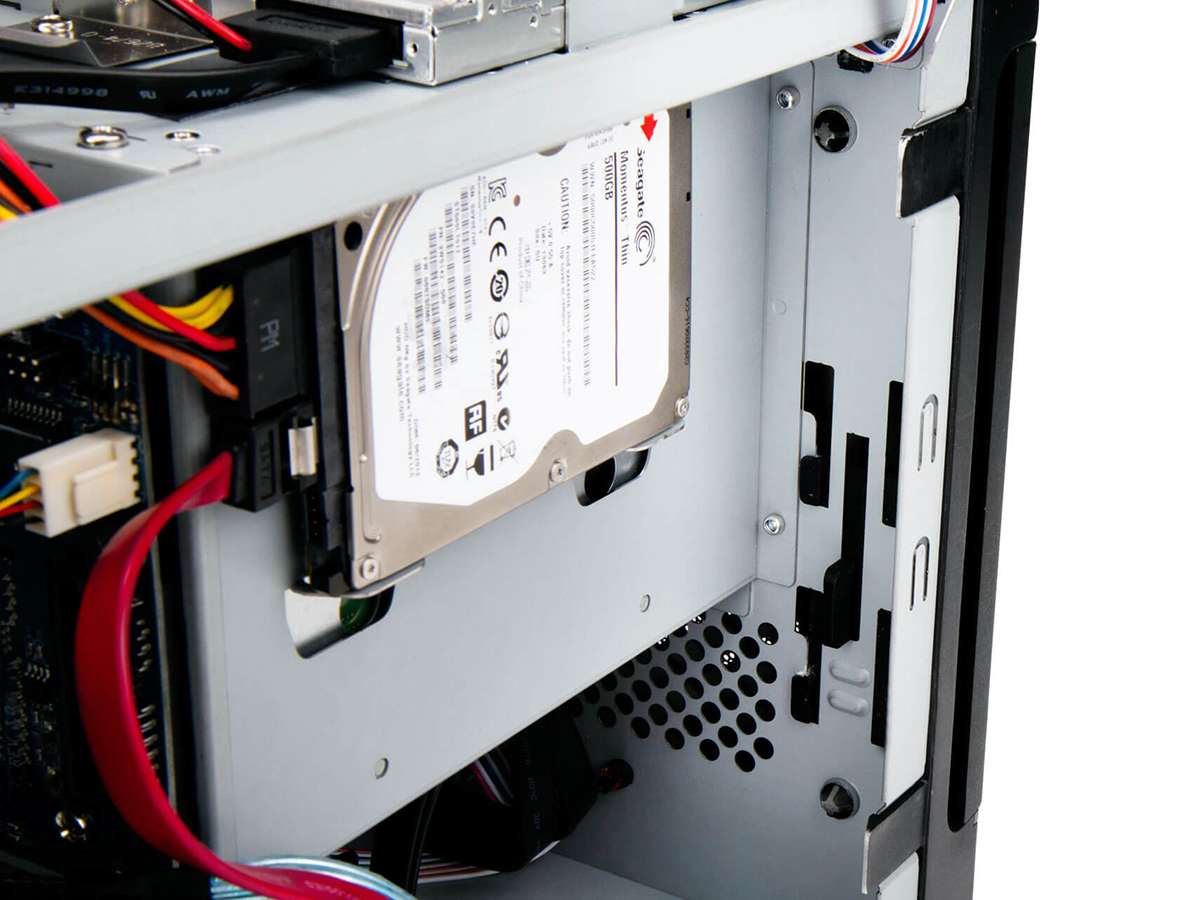

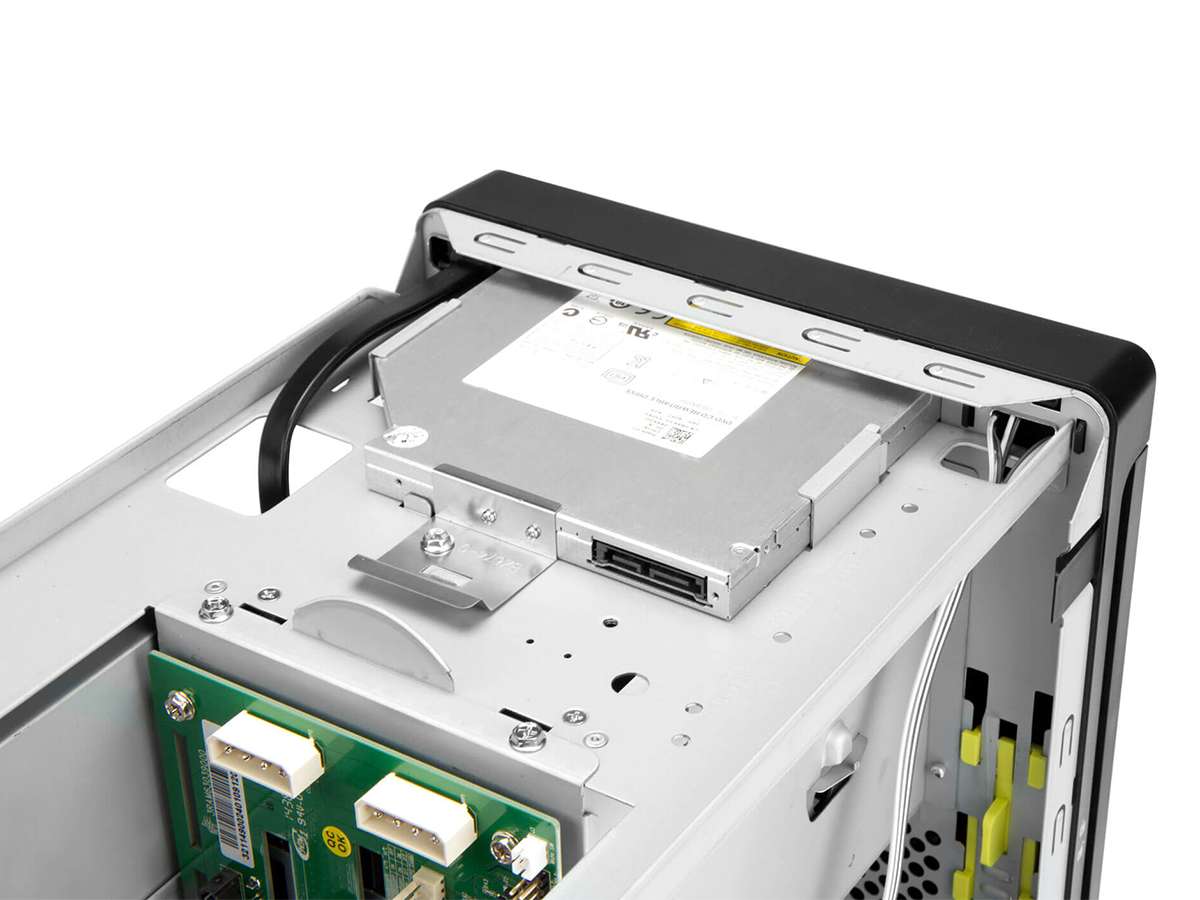

Drive Bays: 4x 2.5/3.5in SATA HDD/SDD in Lockable Hot-Swap Drive Bays; 1x Internal 2.5in HDD/SDD; 1x Slimline Optical Drive Bay or 2.5in HDD/SSD Bay (Mini SATA Cable required if Optical drive used).
Expansion: Low Profile PCI or PCI Express card supported (fits directly into motherboard).
Removable Board Tray: Motherboard tray can slide out for ease of access.
Cooling: 1x 120mm (quiet) Rear Fan.

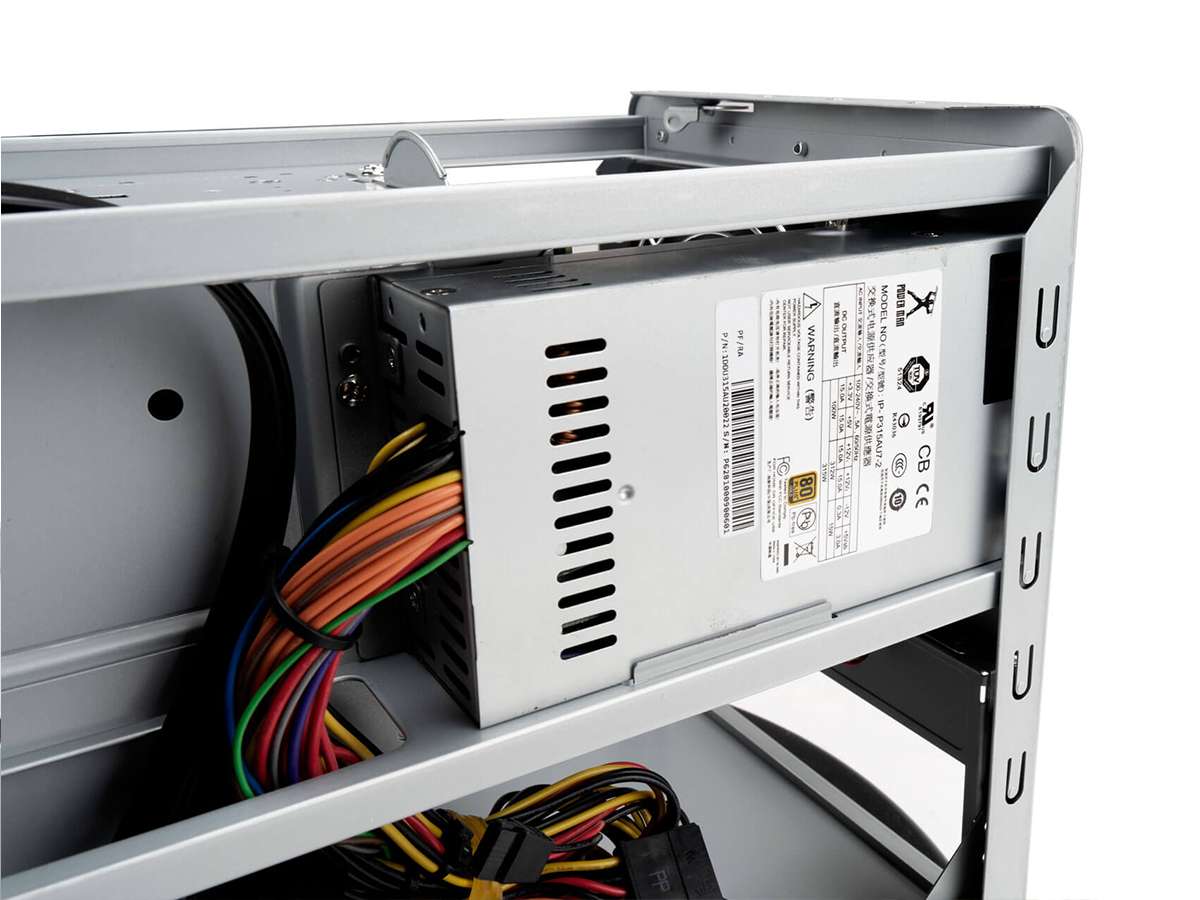

Power supply: Internal 265 Watt Flex ATX PSU. UK power cord provided as standard.
PCI/PCI-E Support: Supports LOW profile PCI/PCI-E cards up to 25cm in length.
Supported boards: All Mini-ITX boards with ATX connectors including AMD and Intel Socket Mini-ITX boards with standard retail heatsinks.

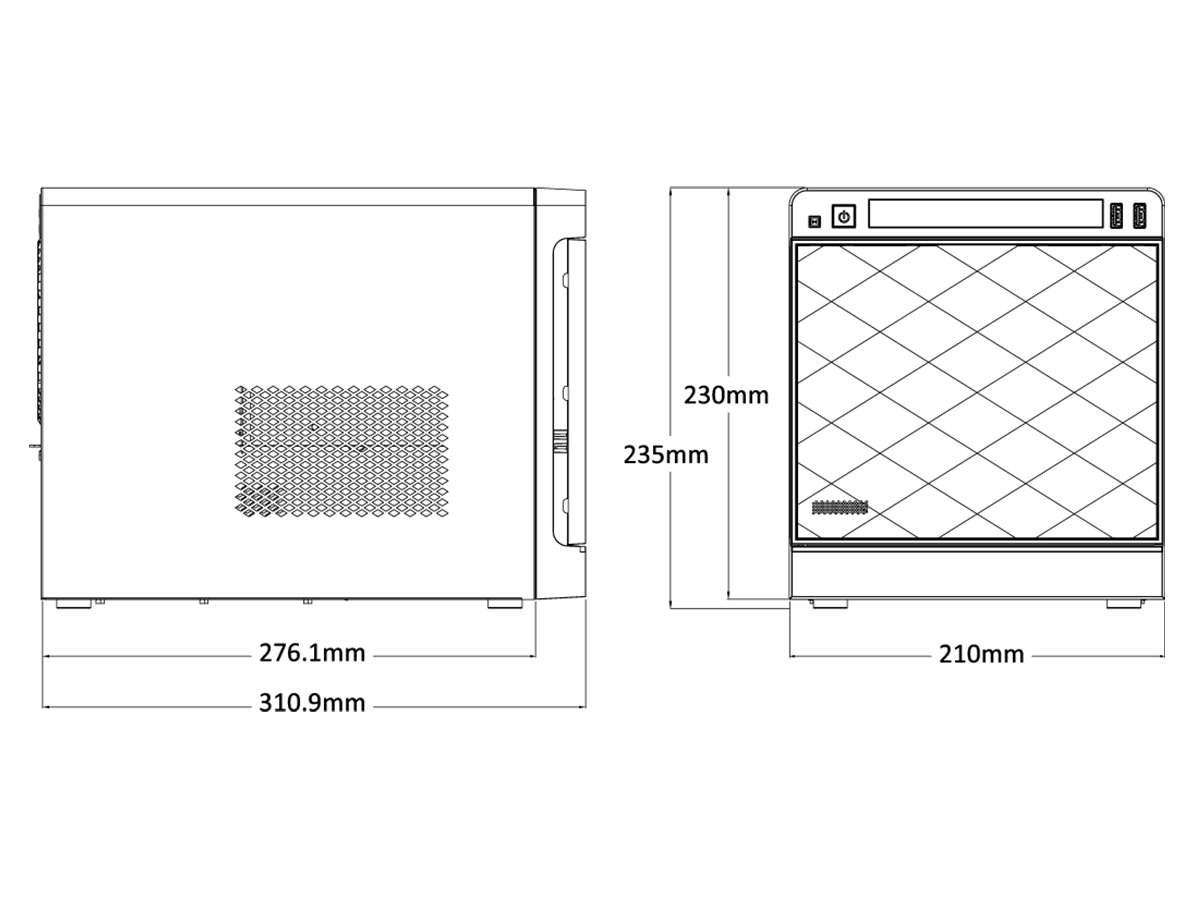

Measurements: 275 x 210 x 230mm (WxHxD) (10.8in x 8.2in x 9.0in). Volume: 13.28 litres
| Specifications | ||
|---|---|---|
| Model | IN WIN MS04 Mini Server Tower | |
| Case Type | Cube | |
| Colour | Black | |
| Expansion | ||
| Slots | 1 | |
| Max Length | 200mm | |
| Max Width Card | Single | Low Profile |
| Cooling | ||
| Fans Supported | 1x 120mm | Rear |
| CPU Cooler | 65mm | Max height |
| I/O | ||
| USB Connectors | 2 | |
| 2x USB 3.0 Type A | Front | |
| Power Supply | ||
| Included | Yes | |
| Power | 265W | |
| Size | Flex ATX | |
| Dimensions | ||
| W x D x H | 275 x 230 x 210 mm | |
| Volume | 13.28 litres | |
