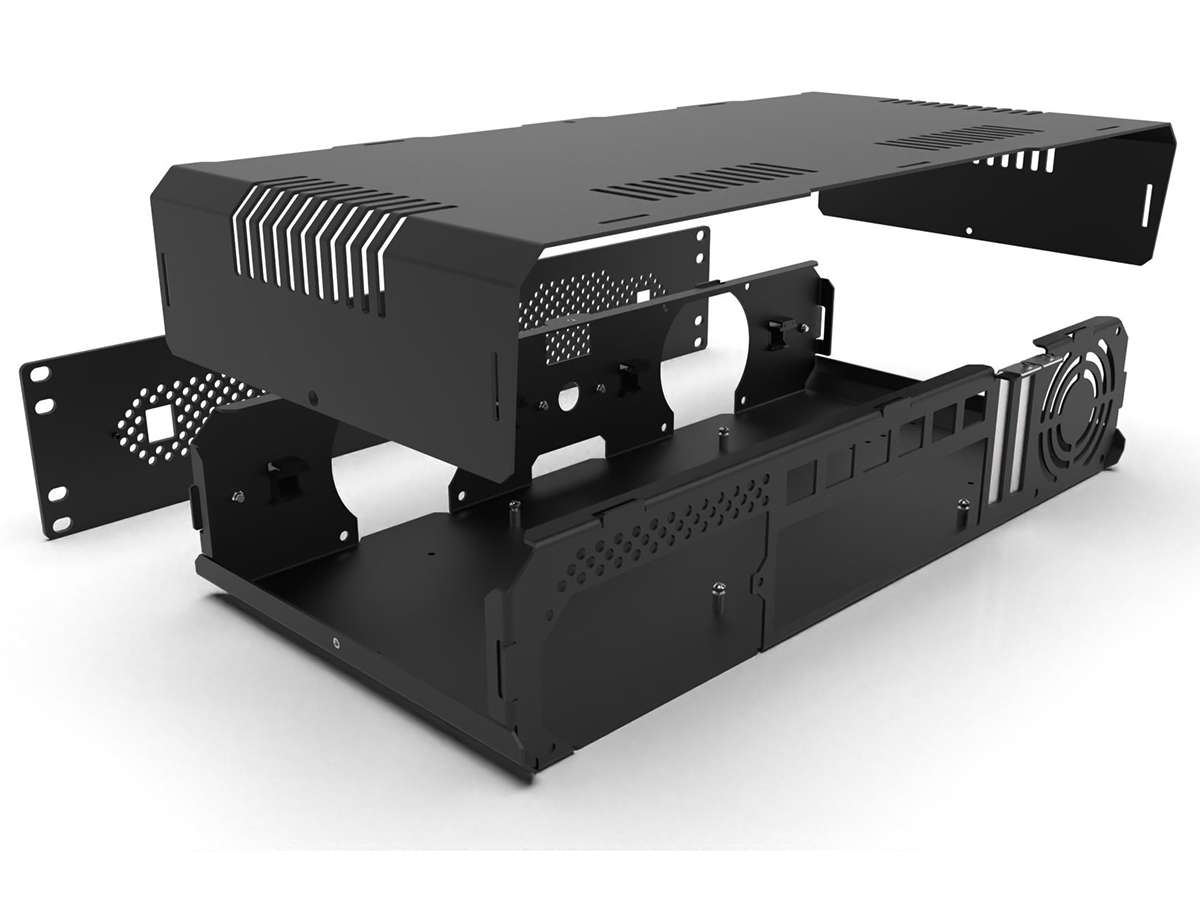

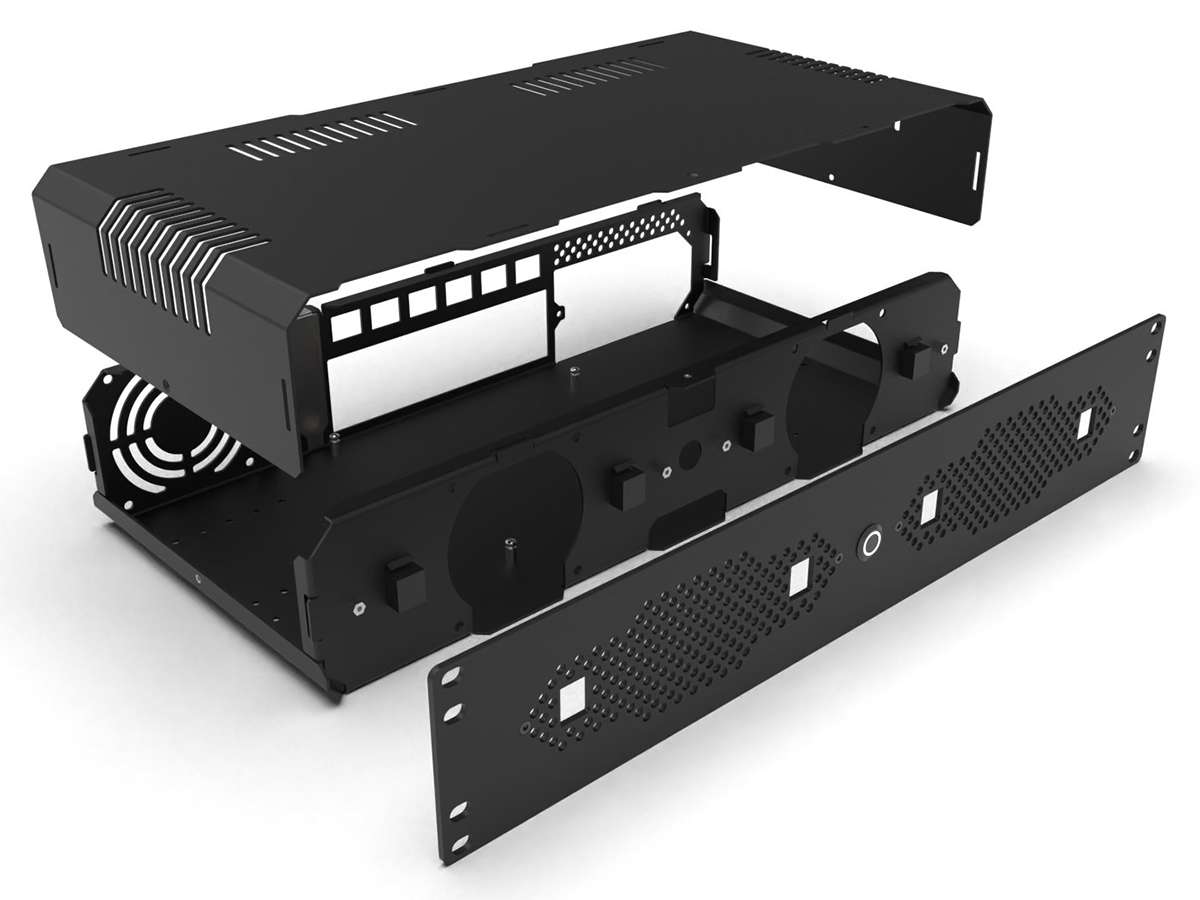

2U Short Depth Mini-ITX Rackmount Chassis

2U Short Depth Mini-ITX Rackmount Chassis constructed from high-grade Aluminimum with room for up to 5 hard drives, can take full size SFX or SFX-L PSUs and fit PCI/PCI-E cards up to 190mm in length.

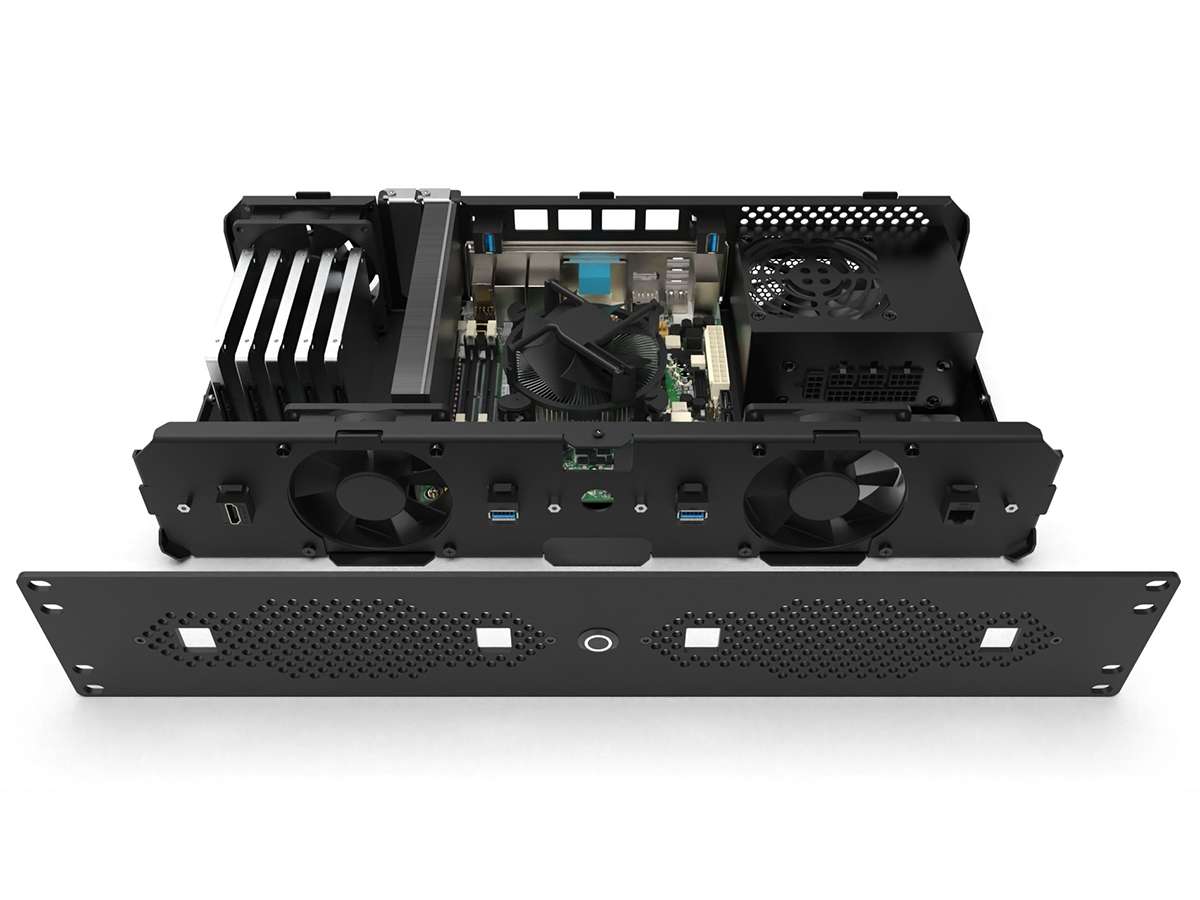

Bays: With an SFX PSU fitted, the chassis supports 6x 2.5in drives or 1x 3.5in HDD and 1x 2.5in drive. With an SFX-L PSU, the chassis supports up to 5x 2.5in drives or 1x 3.5in HDD.

Cooling: The chassis has room for 1x 80mm fan at the rear, and 2x 80mm fans at the front. Fitting fans may restrict drive and cable positioning.

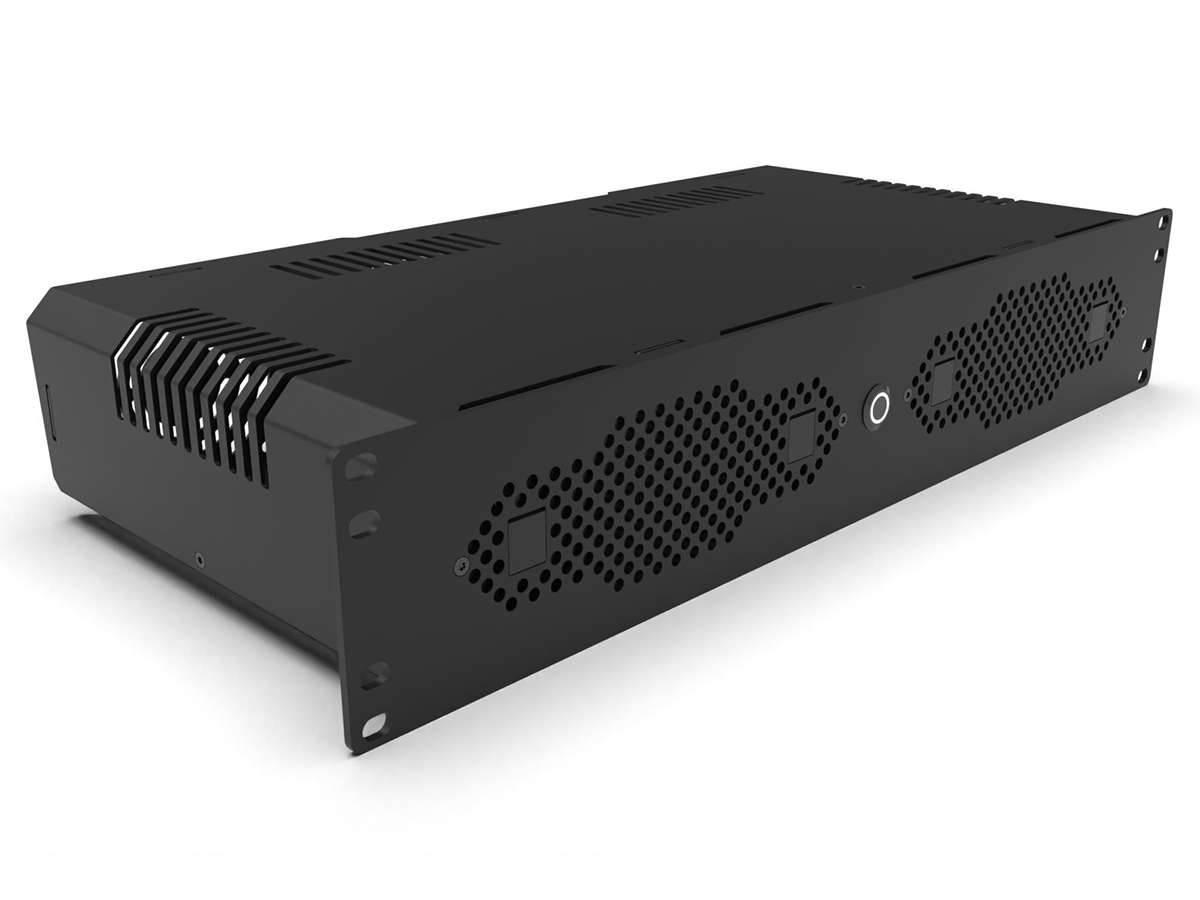

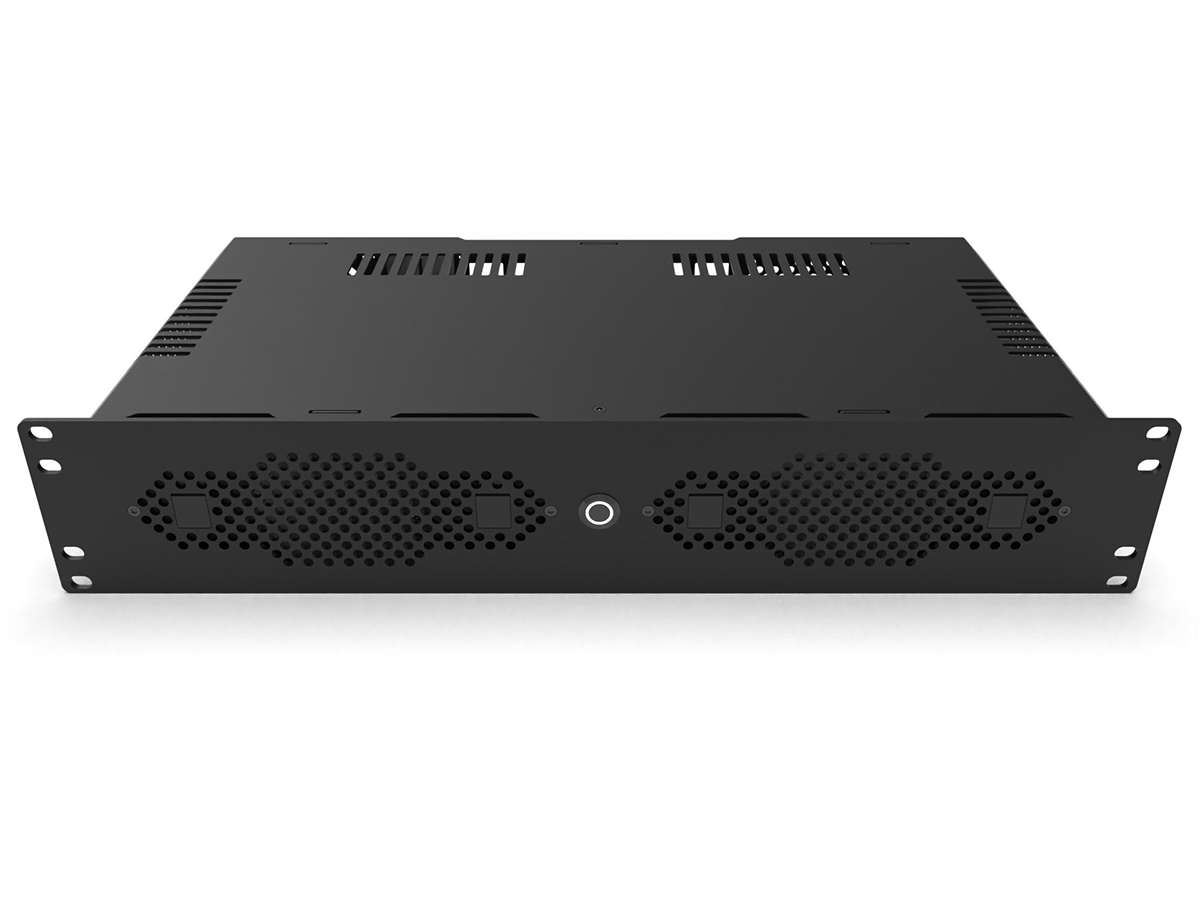

Front Panel: Aluminium front panel with circular power button with white LED.

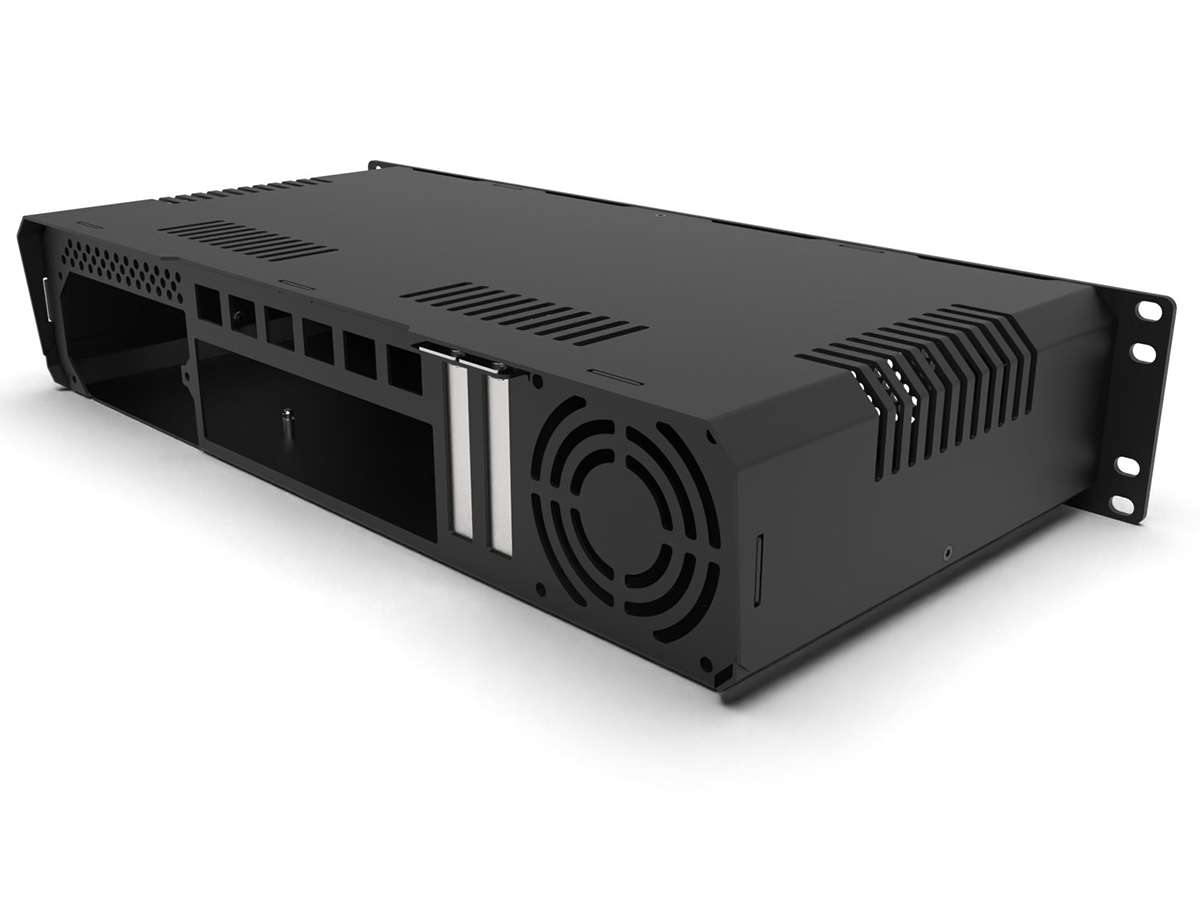

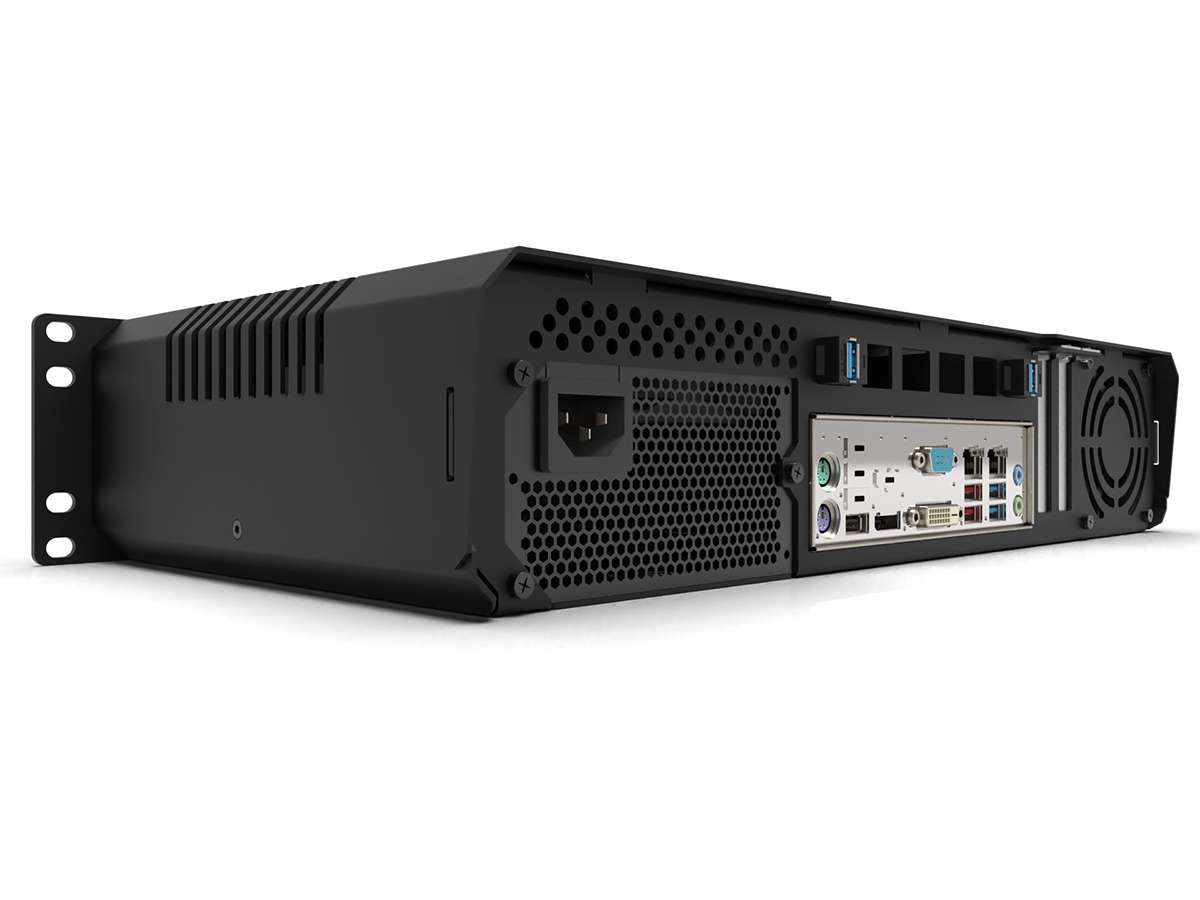

Rear Panel: 2x Low Profile PCI/PCI-E slots provided with blanking plates.

Power Supply: Requires an SFX or SFX-L PSU, up to 160mm in length.

PCI Cards: Supports Single or Double-Width PCI/PCI-E Cards up to 190mm in length. If a front fan is fitted, the maximum length of the PCI/PCI-E card is reduced.

Supported Heatsinks: Mini-ITX boards with a 2U-compatible heatsink up to 75mm tall are supported.

Measurements (W x H x D): 483 x 88.5 x 225mm (19in x 8.85in x 3.48in). Volume: 9.62 litres
