IN WIN RF100S 1U Short Depth Mini-ITX Server Chassis 265W with Reversible Design, USB 3.0 and 4 drives supported
IN WIN RF100S 1U Short Depth Mini-ITX Server Chassis 265W | |
£132.00 inc. VAT | |
Available for pre-order Lead time usually 3-4 weeks |
The IN WIN RF100S 1U Rackmount Mini-ITX Case supports all Mini-ITX Motherboards within a 250mm deep chassis. Up to 2x 2.5in HDDs/SSDs and 2x 3.5in drives are supported.
Construction: Heavy duty cold-rolled steel, silver finish.

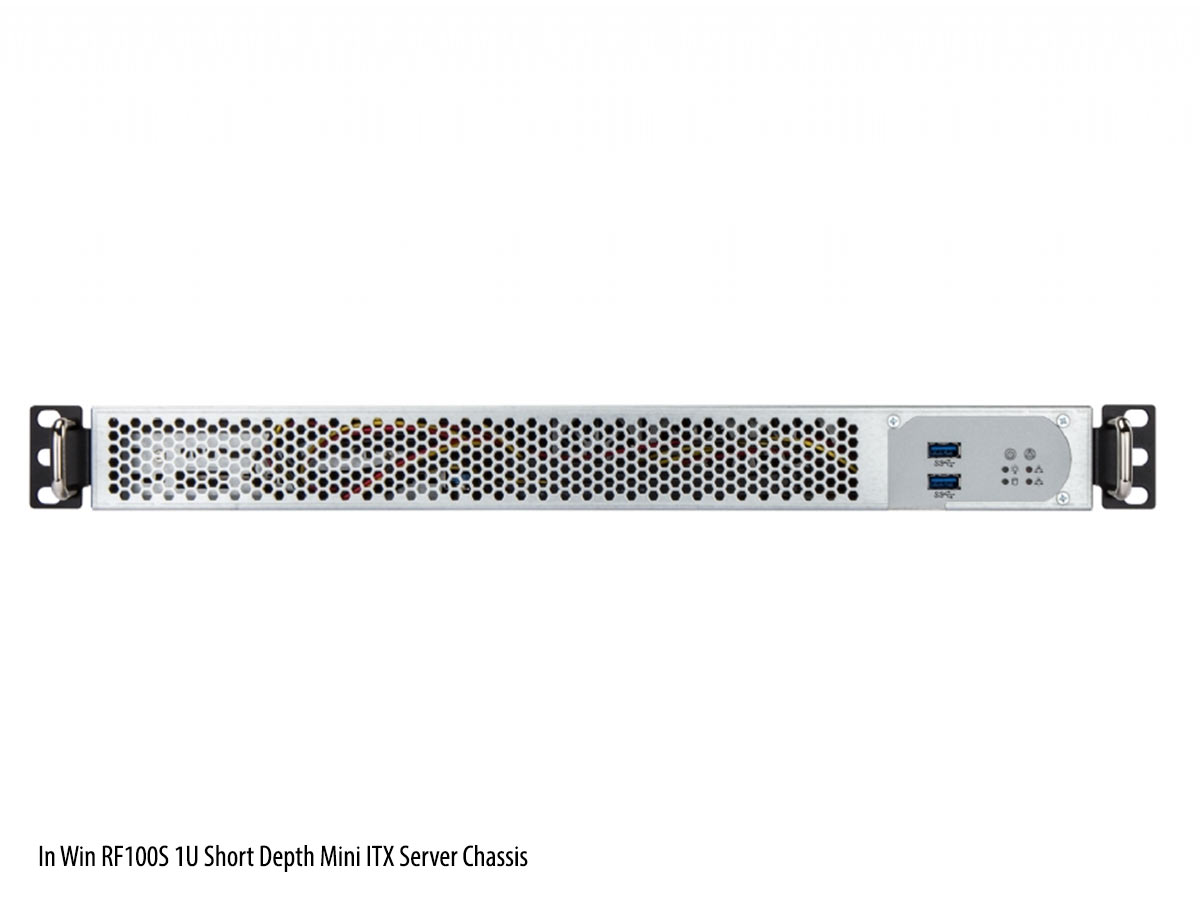

Front Panel: Power Switch, System Reset, 2x USB 3.0 Type A Connectors. Power LED, HDD and 2x LAN Activity LEDs.

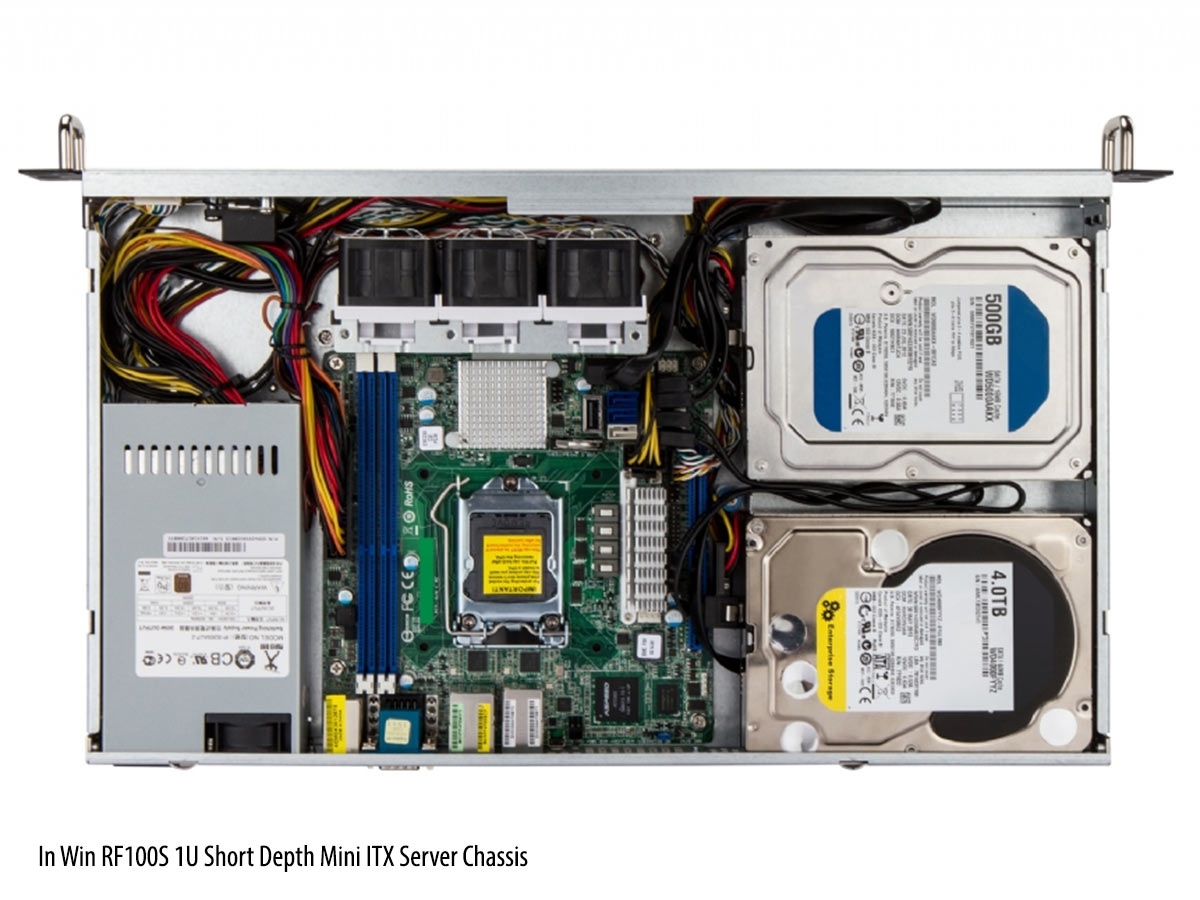

Drive Bays: There are 4x drive bays in total. The internal drive caddies can hold: 2x full-height 2.5in drives in their lower section and 2x full-height 3.5in drives in their upper section.

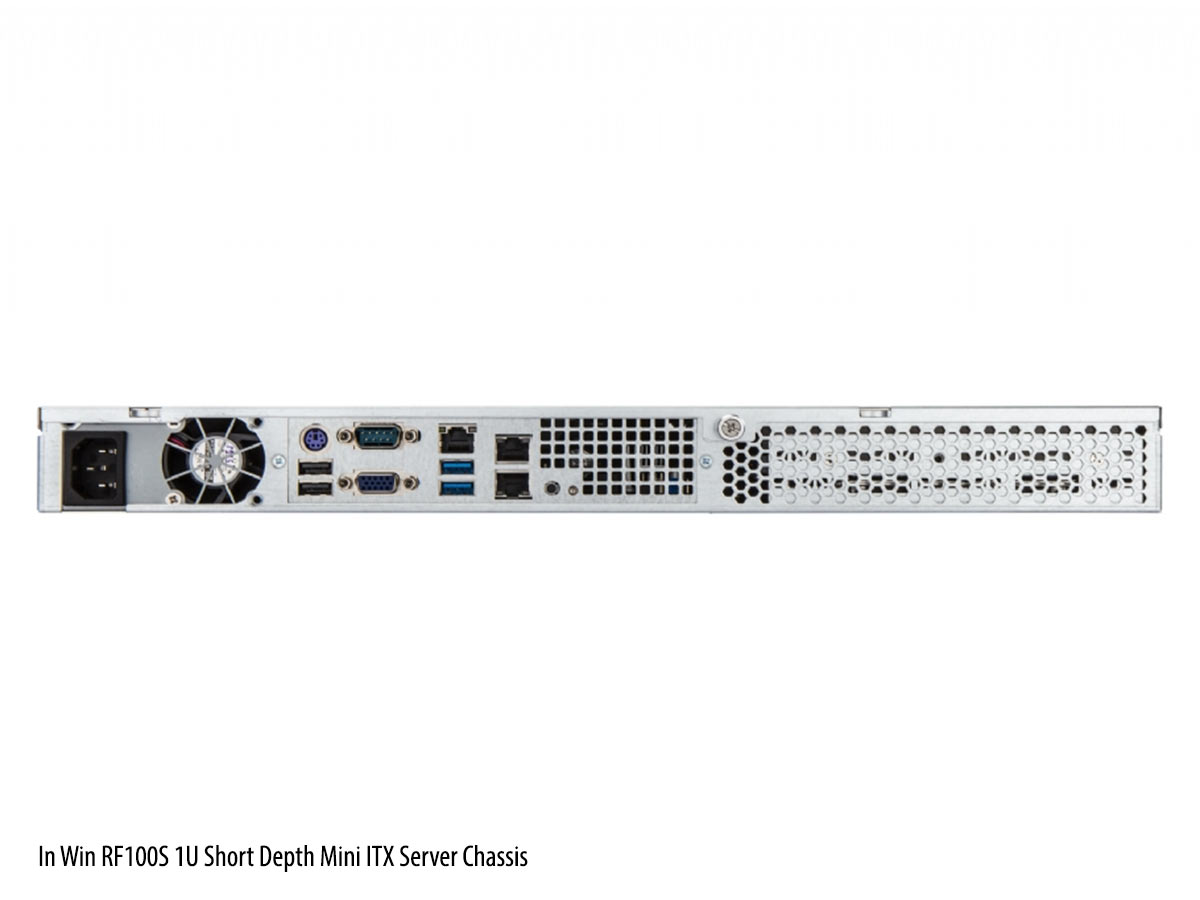

Back Panel: Universal I/O shield included. This can be cut to fit your motherboard with metal snips or a rotary tool.
Measurements: 250 x 482.6 x 44mm (9.8 x 19 x 1.75in). Volume: 5.31 litres.
Power Supply: Internal Universal Auto-Switching 110-240V 265W Flex ATX PSU with very quiet fan. PSU Connectors: 4x SATA Power; 20/24pin ATX; 12V P4/P8. UK cable provided as standard.
Internal Cabling: FPANEL, USB 3.0 and Power Loom.
Cooling: 2x internal 40x40x28mm system fans are included, with space for 1 additional fan. Fans are audible in use but can be fan controlled, swapped with our replacement fans or simply unplugged. For optimal cooling of socket motherboards we recommend using a low TDP processor if possible.

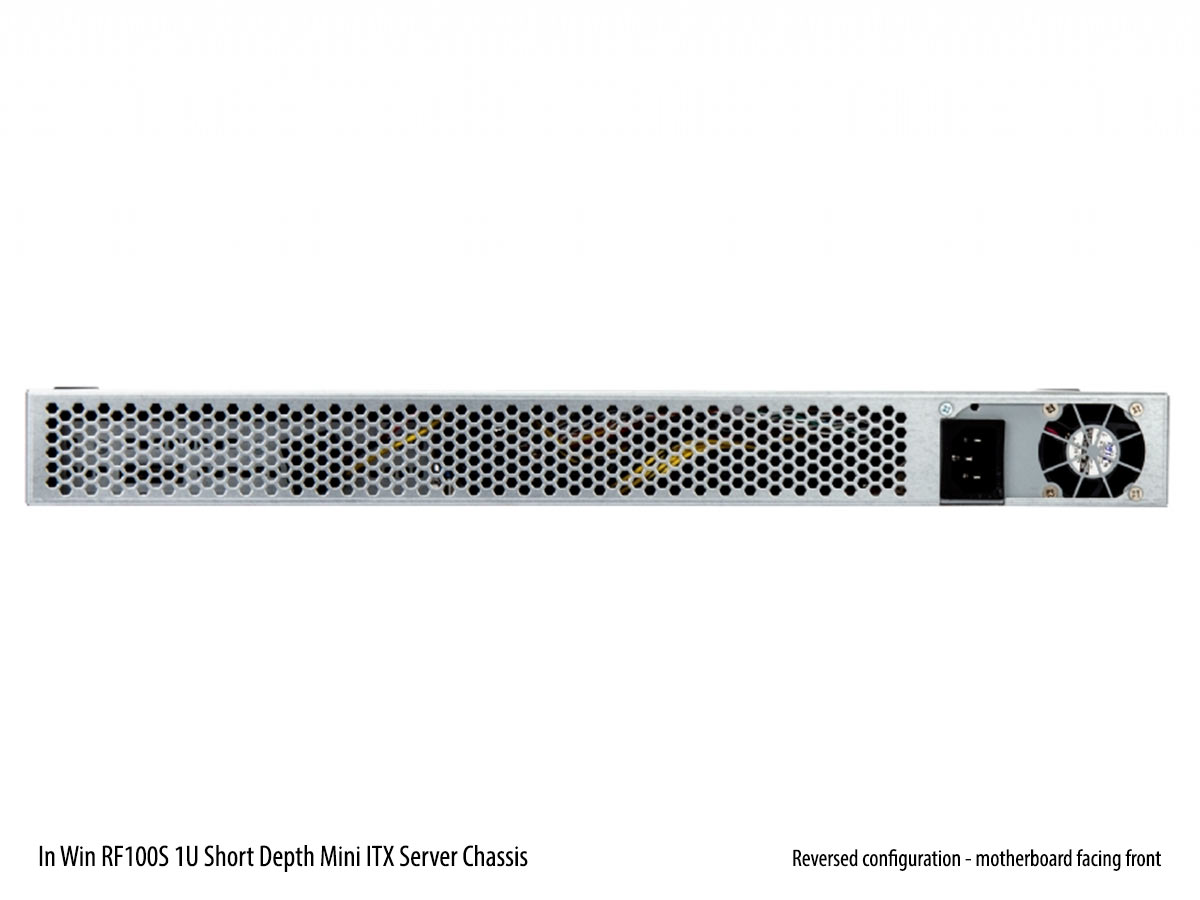

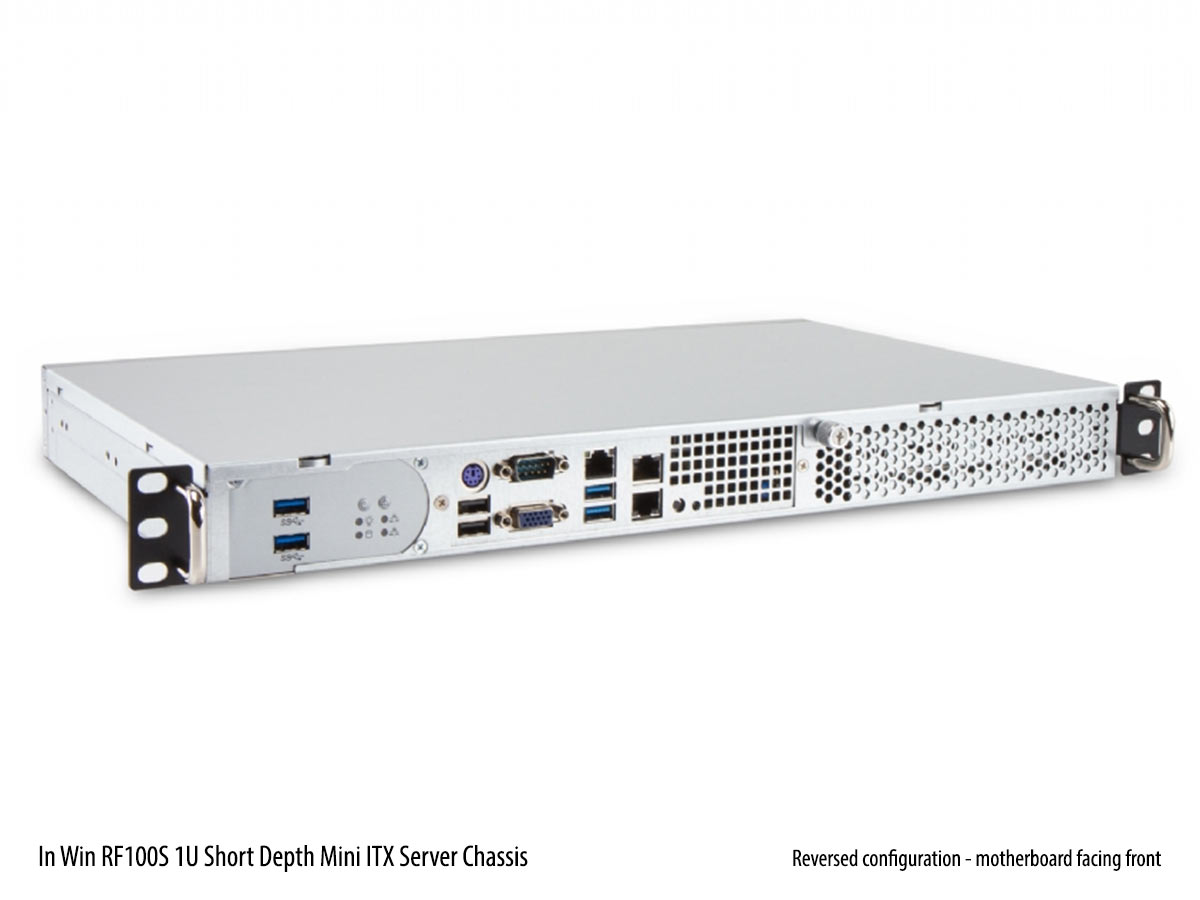

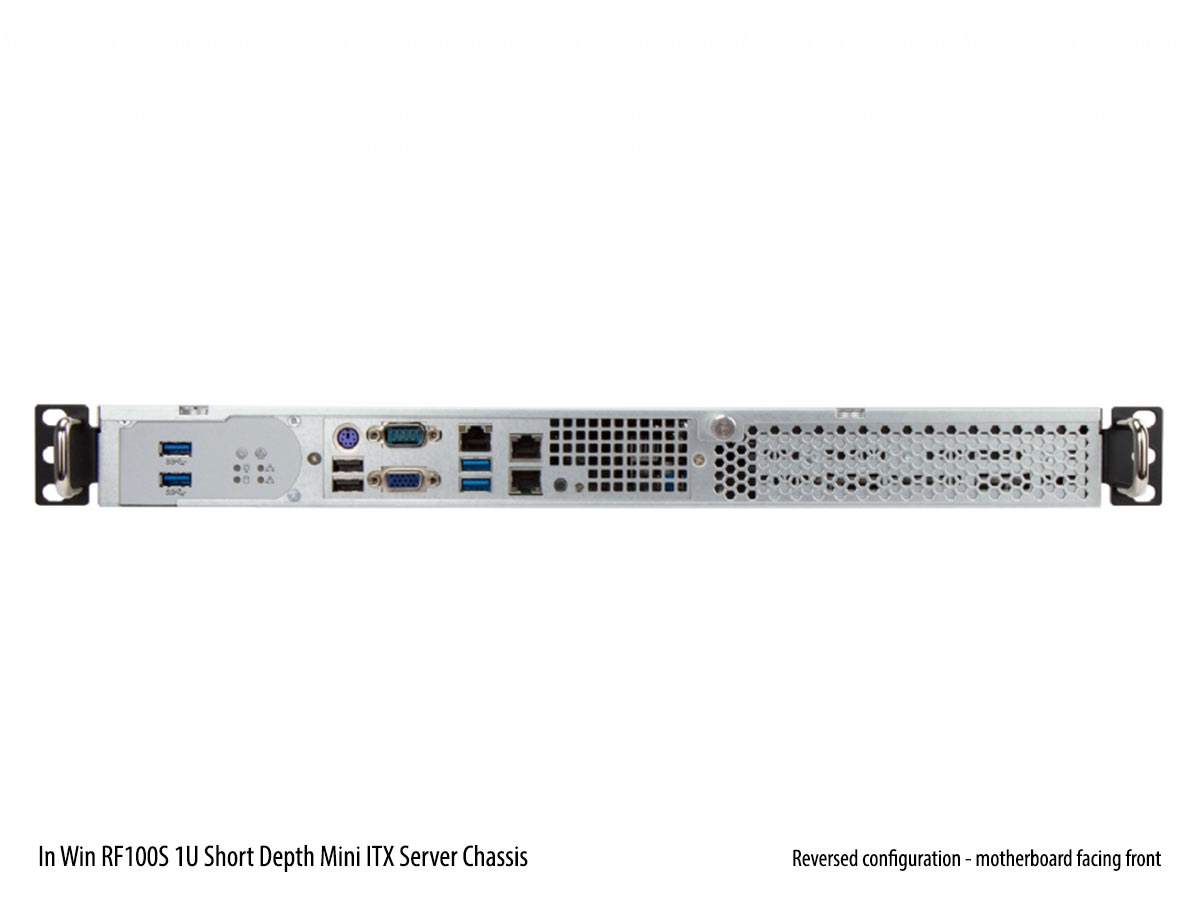

Reversible Design: Rack Ears can be fitted to both front and rear of the chassis. PSU can be swapped with the Front Panel location.
Rails: Suitable 20in sliding rails can be found here (rack ears are often sufficient).
PCI Cards: No PCI Cards are supported.
Supported Boards: All Embedded Mini-ITX boards with ATX connectors; Socket Mini-ITX boards fitted with suitable <30mm 1U heatsink such as the Dynatron K2.
Boards Not Supported: Any Mini-ITX boards with larger than normal heatsink size will not physically fit, e.g. Socket motherboards with standard heatsinks (use a low profile heatsink).
Specifications | ||
---|---|---|
Model | IN WIN RF100S 1U Short Depth Mini ITX Server Chassis 265W | |
Case Type | Rackmount | |
Colour | Silver | |
Storage | ||
Bays | 4 | |
Bay 1 | 1x 2.5in | |
Bay 2 | 1x 2.5in | |
Bay 3 | 1x 3.5in | |
Bay 4 | 1x 3.5in | |
Cooling | ||
Fans Supported | 2x 40mm | Rear |
CPU Cooler | 30mm | Max height |
I/O | ||
USB Connectors | 2 | |
2x USB 3.0 Type A | Front | |
Power Supply | ||
Included | Yes | |
Power | 265W | |
Size | Flex ATX | |
Dimensions | ||
W x D x H | 482.6 x 250 x 44 mm | |
Volume | 5.31 litres |
