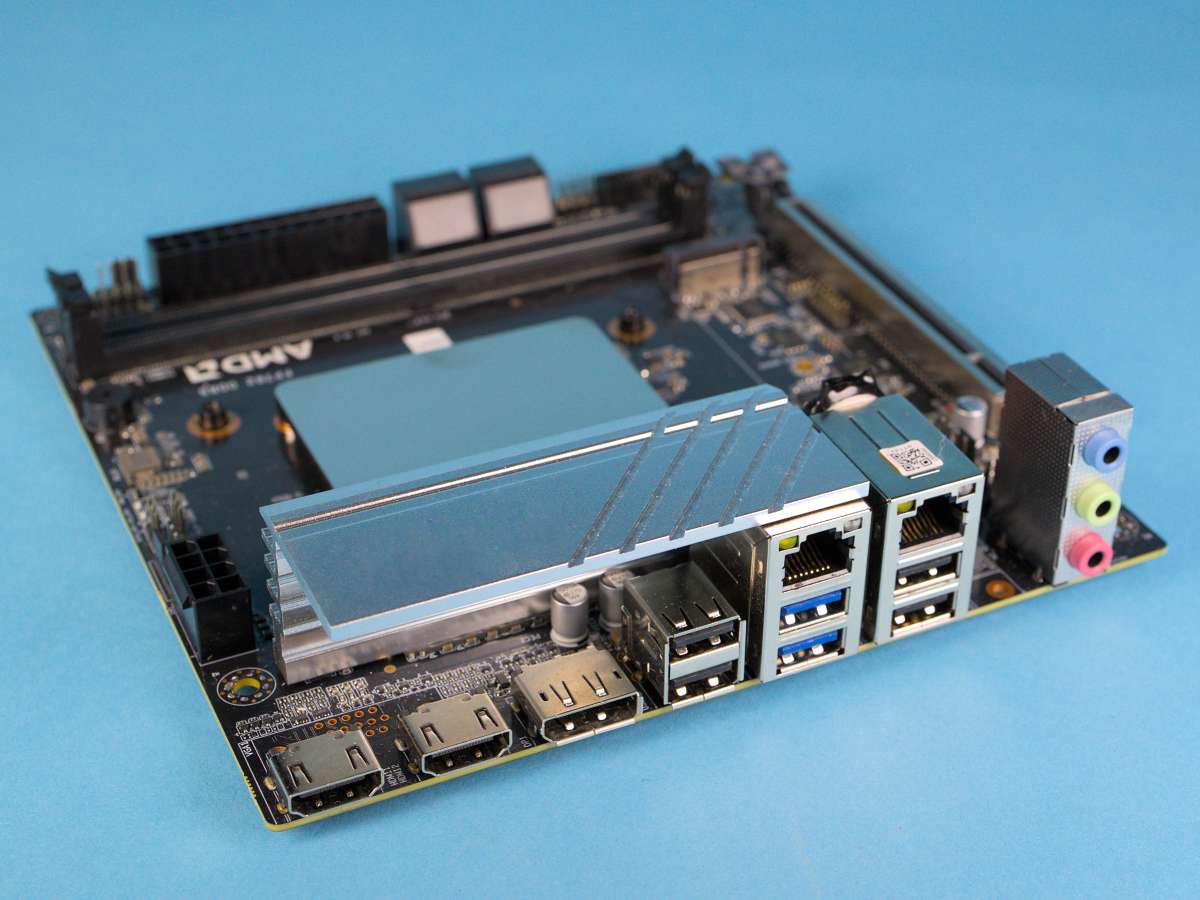

Phoenix-ITX 7940HS WiFi Mini-ITX Board with 8C16T AMD Ryzen 9 7940HS Processor with Radeon 780M Graphics, Up to 64GB DDR5, 2x 4K@60Hz HDMI 2.1, 8K@60Hz DisplayPort 2.1, 2x PCIe4 M.2, 4x SATA 6Gb/s, WiFi 6E, 2x 2.5Gb Intel i226V LAN, PCI-E 4.0 x8 Slot

Feature-packed Phoenix 7940HS WIFI Mini-ITX board with AMD Ryzen 9 7940HS processor with Integrated Radeon 780M Graphics and up to 64GB DDR5 memory. Part of our Infinity C64x Systems and Infinity System Builders Kits. You will require an AM4 or AM4 cooler to use this board.

Priority for C64x Customers: If we reach a low stock situation with this motherboard we will prioritise Infinity C64x System builds and Infinity System Builders Kit orders before individual board orders.

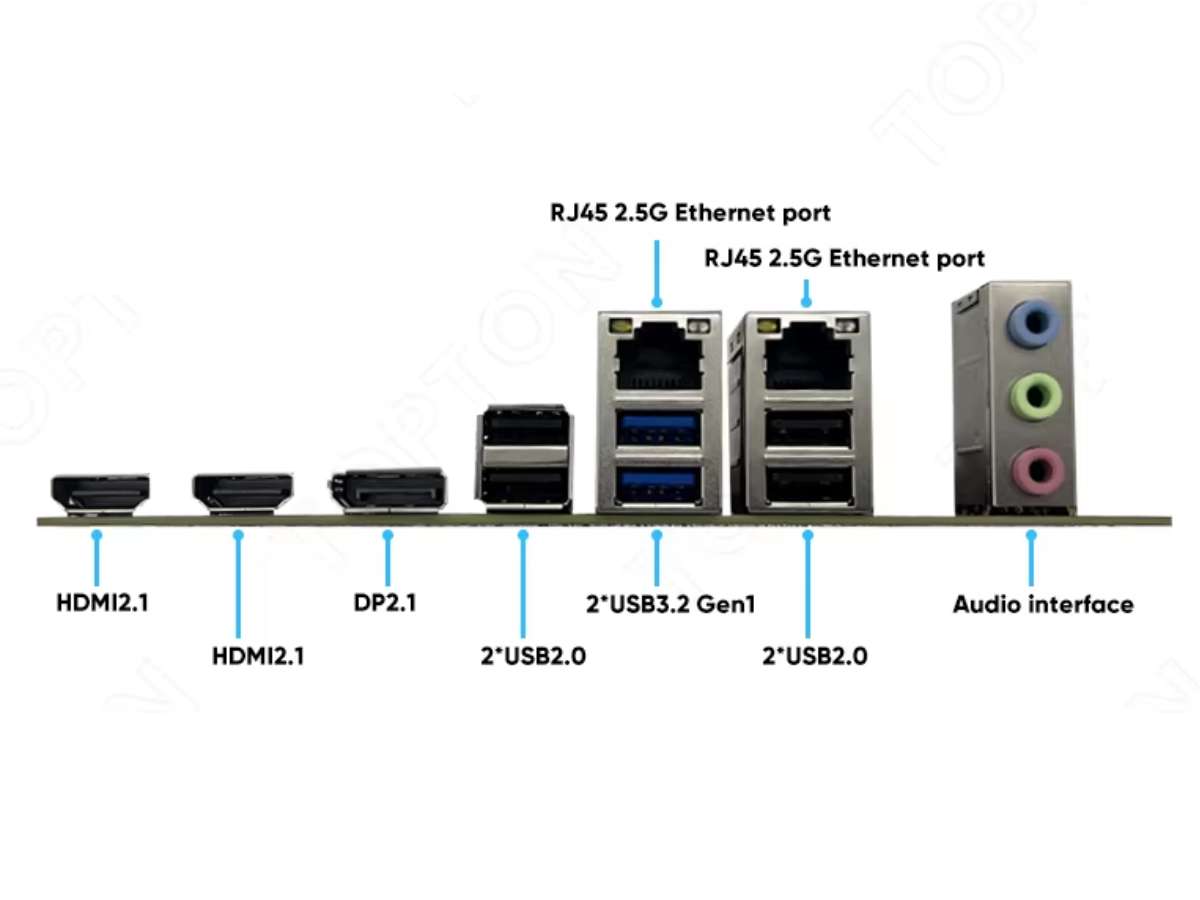

Rear Panel Connectors: 2x HDMI 2.1 with max. resolution up to 4K @ 60Hz; 1x DisplayPort 2.1 withg max. resolution up to 7840x4320 @ 60Hz; 4x USB 2.0 Type-A; 2x USB 3.2 Gen1 Type-A (5 Gb/s); 2x Intel i226V 2.5Gb LAN Ports; 2x WiFi Antenna Connectors; 3x 3.5mm Audio Jacks.

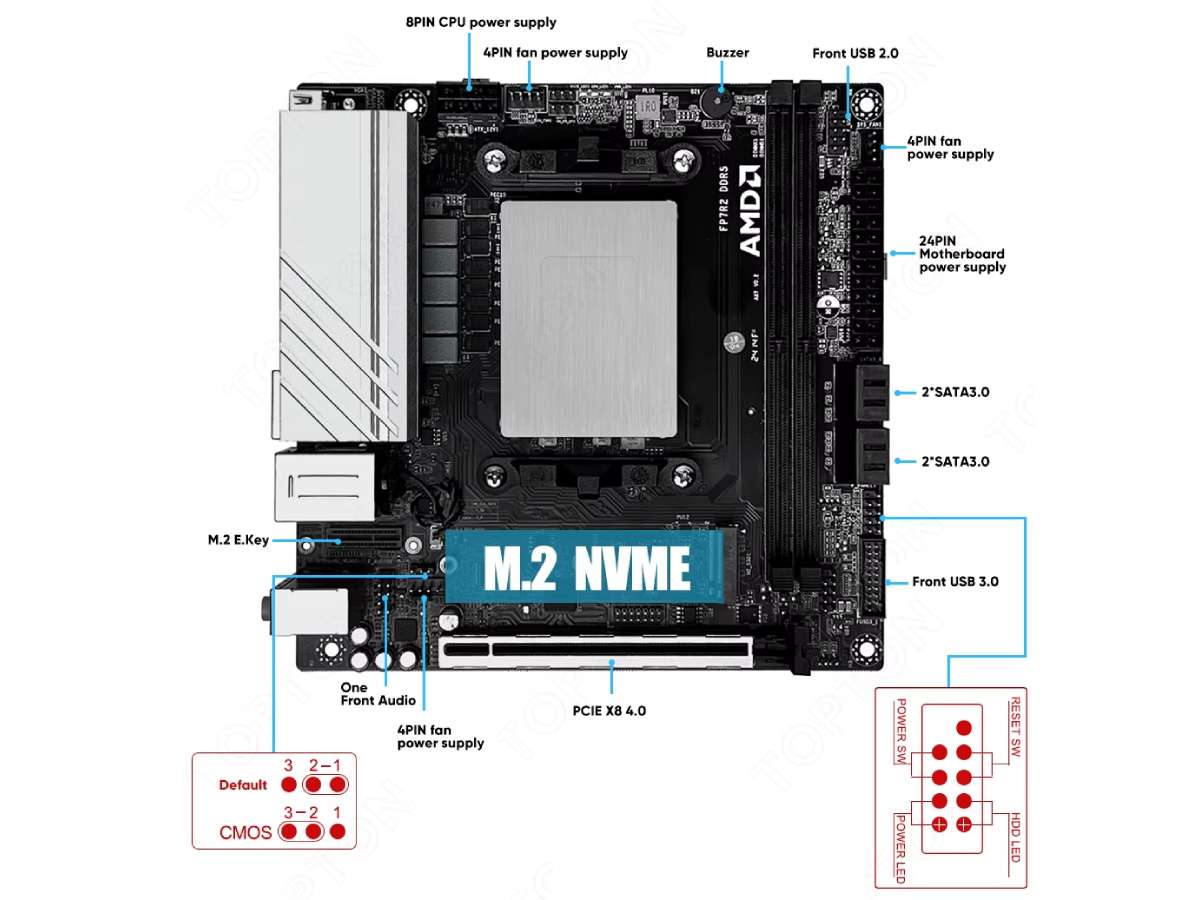

Board Connectors: 24pin ATX Main Power connector; 1x 8pin 12V Power Connector (4pins can be used); 3x Fan Connectors; 1x Front Panel Audio Connector; 1x USB 2.0 Header (supports 2x USB 2.0 ports); 1x USB 3.2 Gen1 Header (Supports 2x USB 3.2 Gen1 ports); TPM Header; Buzzer.

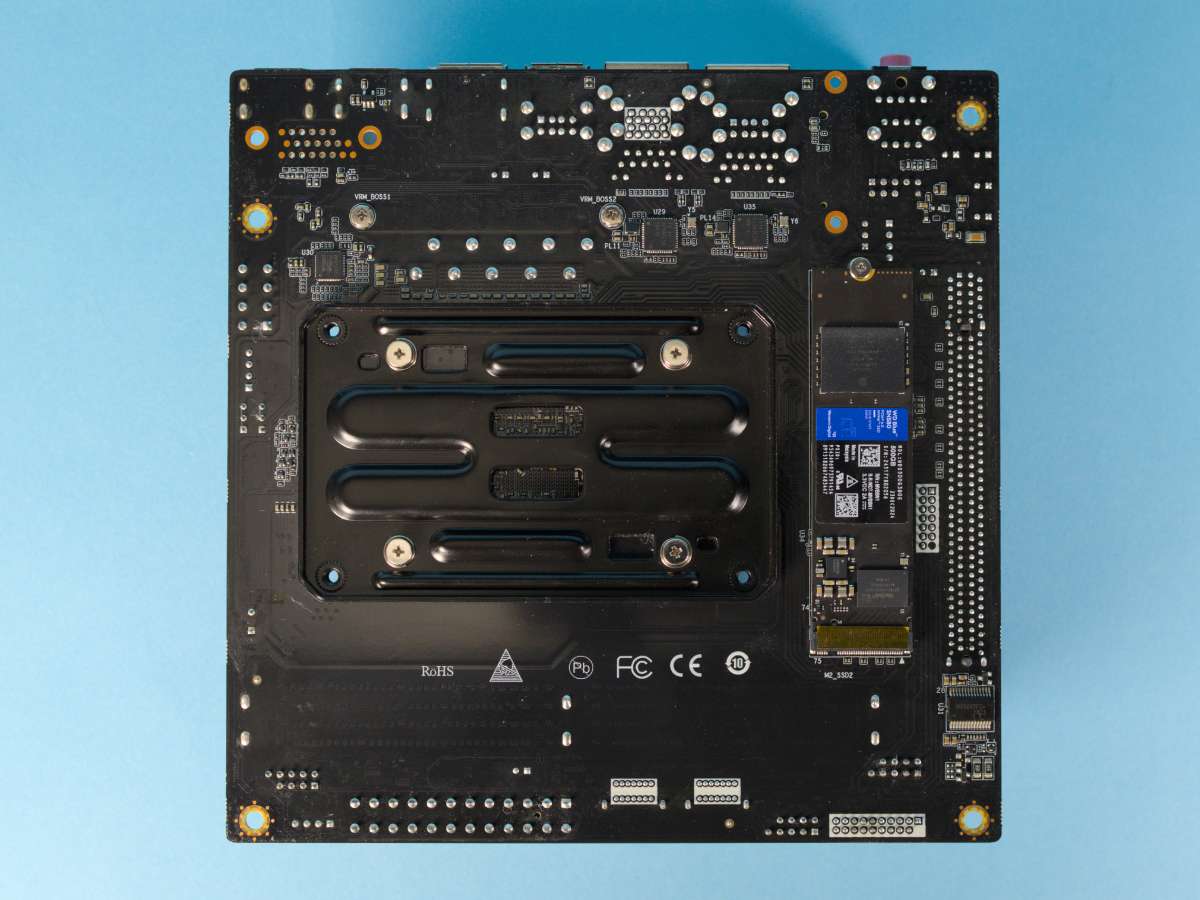

Storage and Expansion: 2x Type 2280 PCIe 4x4 slots (one on underside of board); 4x SATA 6Gb/s; 1x Vertical M.2 Type E Slot (occupied by the included WiFi 6E + Bluetooth 5.3 Module); 1x PCI Express 4.0 x16 Slot (runs at x8 speed).

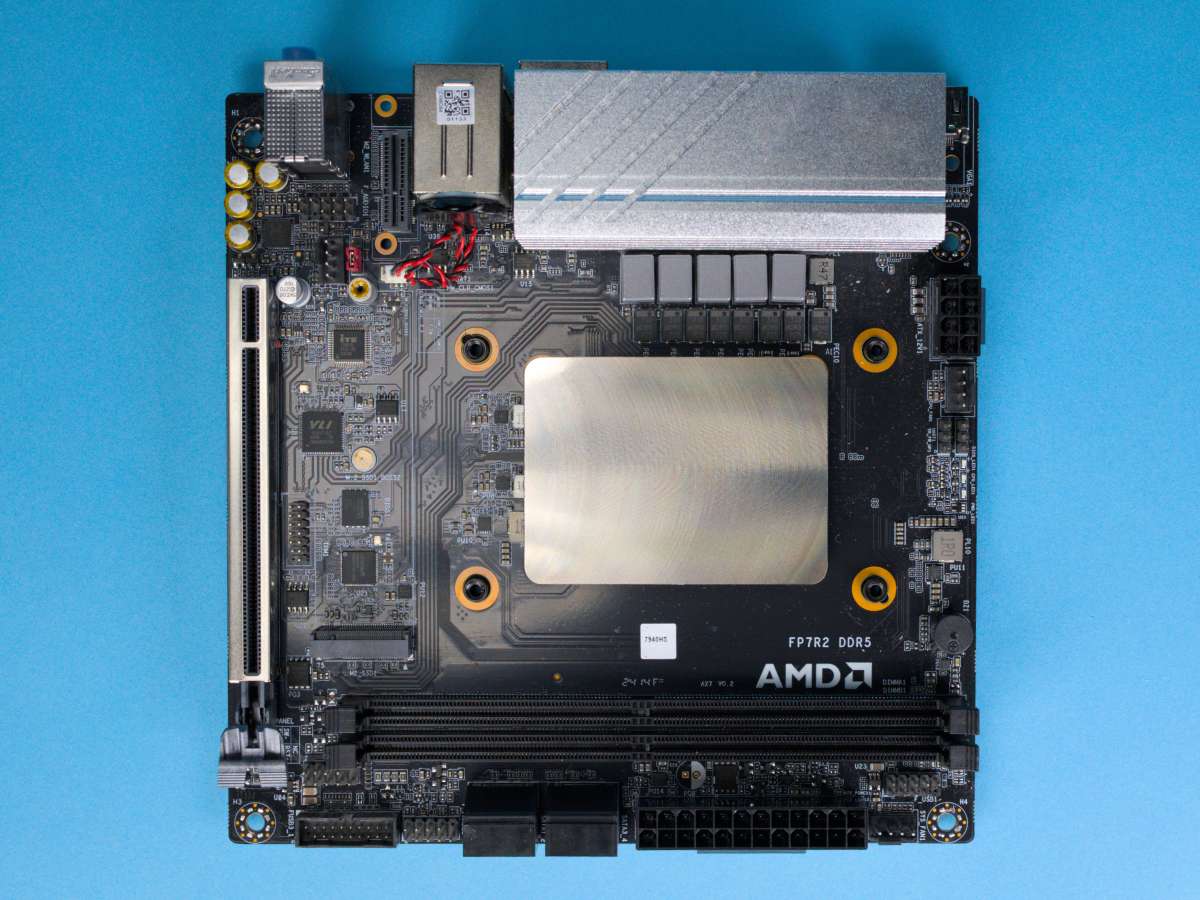

Suitable Coolers: The Phoenix 7940HS WIFI board is pre-fitted with a mobile Ryzen processor attached directly to the motherboard underneath a metal plate in an AM4/AM5 socket. Suitable AM4 or AM5 coolers can be found here (Dynatron A18 recommended for 1U systems, combined with 3D-printed fan duct for C64x systems, Noctua NH-L9a-AM5 recommended for most other systems)

Integrated Graphics: The AMD Ryzen 9 7940HS has powerful Integrated Radeon 780M graphics comparable to the Ryzen 8600G and 8700G.

Multiple Screens: This board Supports up to 3 displays simultaneously via DisplayPort and HDMI.

Wireless LAN: The included Intel AX210 802.11ax WiFi 6E Module supports Dual-Band 2x2 160MHz with extended 6GHz band support*; Supports IEEE 802.11a/b/g/n/ax and Bluetooth 5.2 & High speed class II; Supports MU-MIMO; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology.

Suitable Cases: Mini-ITX chassis with at least a 120W (or larger) power supply and an appropriate low profile heatsink if necessary.

OS Support: Windows 11 64-bit, Modern Linux Distributions, Commodore OS 3.0+

Installing Windows: To install Windows, download the disk image from Microsoft and write it to a 8GB or larger USB stick using Rufus. If you do not have WiFi, download the LAN driver pack from Intel and put it onto the same stick. Boot your machine and Install Windows from the stick, optionally copy and extract the LAN driver pack then "Browse my computer for drivers" from within the Device Manager on a Network Interface to install the i226V LAN driver. Next, download the AMD driver installer to install the chipset drivers and then use Windows update to install all other drivers.

Installing Linux (including Commodore OS 3.0) Press DEL to enter the BIOS and switch off Safe Boot before installing. Some AMD Linux drivers can be found here.

Package Contents: 1x SATA Data Cable, 2x 2.4/5/6GHz WiFi Antennas; 1x IO Shield; Screws for M.2 Sockets.

Suitable Memory: The Phoenix 7940HS WIFI supports up to 64GB DDR5 memory in 2 slots (up to 32GB per stick). Fully tested DDR5 DIMMs are available in the 'Parts compatible with' section on this page.
