PicoUPS-100 12V DC Micro UPS System/Battery Backup System
| PicoUPS-100 12V DC micro UPS system / battery backup system | |
| £54.00 inc. VAT | |
| IN STOCK (Checked 16:35) |
The PicoUPS-100 is an ultra-compact uninterruptible power supply solution designed for small to medium power systems requiring continuous operation. The PicoUPS-100 is perfect for servers, telecom equipment, and high-availability systems.
Key Features
- Quarter-brick form factor - Compact 58 x 36 x 20mm design (1U compliant)
- Instantaneous switching - 100ns switching speed between AC/DC input and battery backup
- Built-in battery charger - Two-stage charging system (bulk + float charging)
- High efficiency - 95% efficiency rating
- Status LEDs - Visual indicators for input power, battery mode, and charging status
Technical Specifications
- Input voltage: 15-18V DC (works down to 6V but won't charge battery below 15V)
- Output voltage: Variable - passes through input voltage (15-18V from AC/DC adapter or ~12V from battery backup)
- Output capacity: Up to 10A max load (6A fanless operation)
- Peak load: 12A for up to 60 seconds
- Battery compatibility: Sealed Lead Acid batteries (SLA)
- Charging current: 500mA constant current bulk charge
- Float voltage: 13.5V (±1%) for optimal SLA battery maintenance
- Operating temperature: -20°C to +65°C
- Weight: 30 grams
Ideal Applications
- Systems including Mini-ITX boards supporting variable 12-18V DC input
- Standard Mini-ITX boards fitted with M2-ATX, M2-ATX-HV, picoPSU-80-WI, picoPSU-120-WI, M3-ATX, M3-ATX-HV power supplies**
- Network equipment and routers
- Industrial automation systems
- Security and surveillance equipment
- Any application requiring uninterrupted power
What's Included

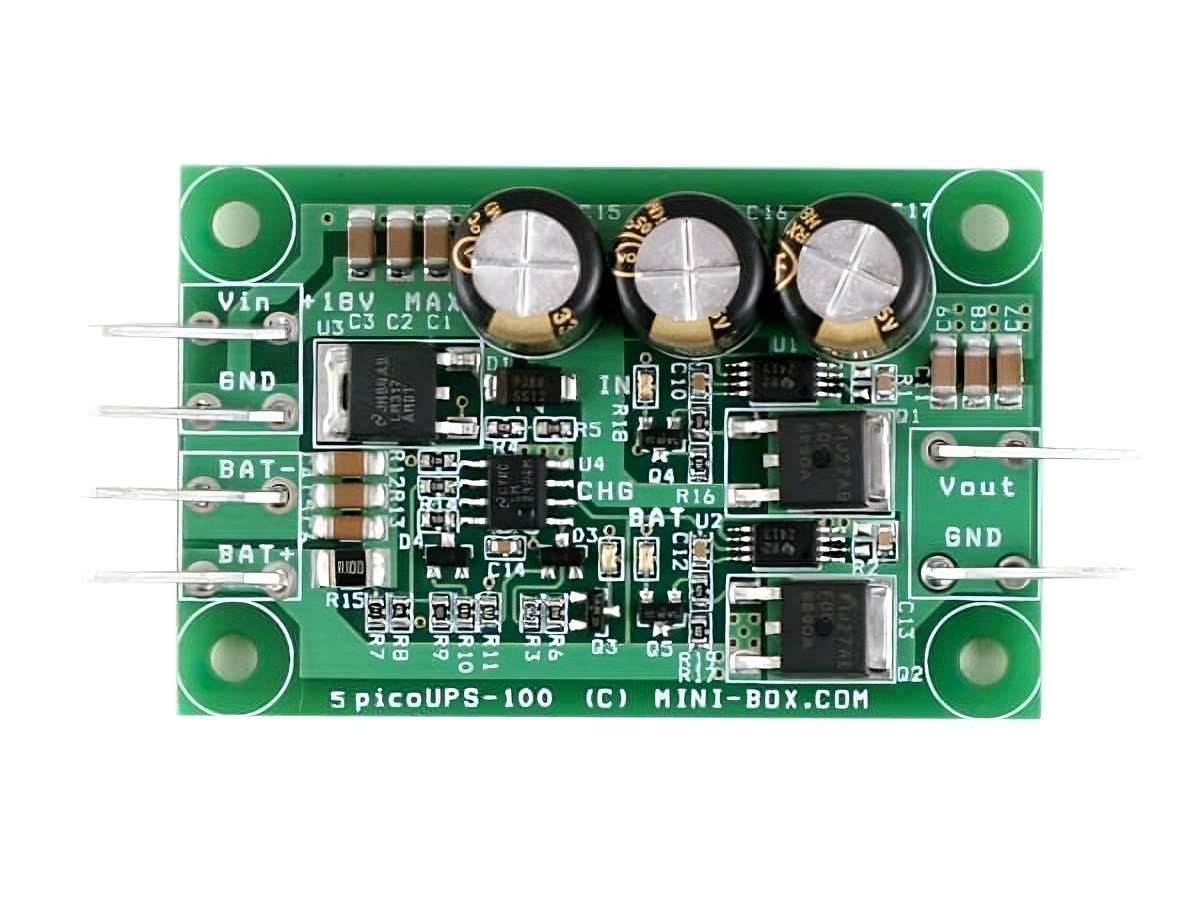

- picoUPS-100 board with Faston blade connectors

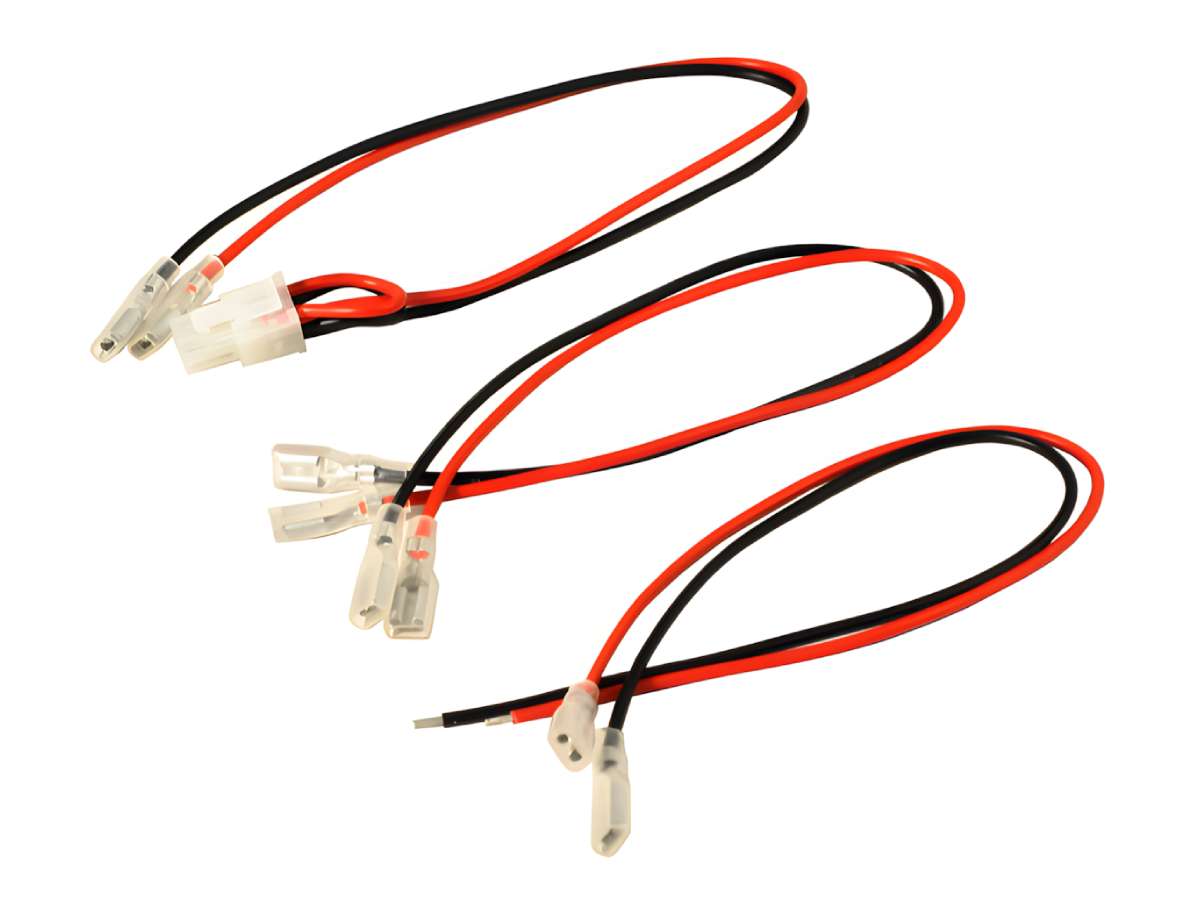

- Connecting cables
- Quick installation guide
- 1-year limited warranty
Note: AC/DC adapters sold separately. Recommended setup uses 12V/7Ah SLA battery with 16V/5A AC adapter.
