The "RadioSphere"
By Audun Lindbraaten, Oslo, Norway
Posted on August 25, 2003
Jump to:

Click to launch image viewer

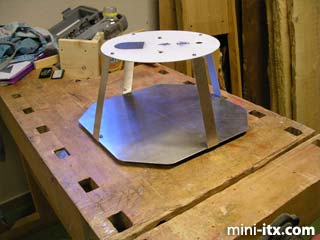

Then I started with the case itself - first I had to make a stand where I could fasten all the parts.

Click to launch image viewer

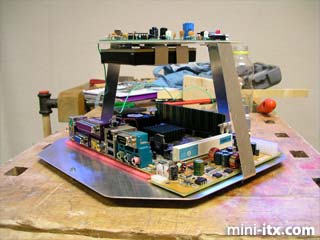

The first test assembly. And all the parts fit!

Click to launch image viewer

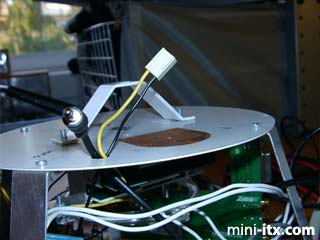

Next, I fitted the HD, wireless keyboard/mouse receiver and the cold cathode onto the top plate in the case.

Click to launch image viewer

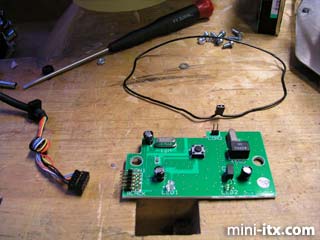

A close-up of the "gutted" keyboard/mouse receiver.

Click to launch image viewer

Then I had to route some cables (power and audio) trough the top plate to the FM-Transmitter.

Click to launch image viewer

This is the on/off button for the cold cathode.

Click to launch image viewer

This is the only parts that you can see from the outside. The power switch, power intake and VGA.

Click to launch image viewer

How it looks from the outside with the cables plugged in.

Click to launch image viewer

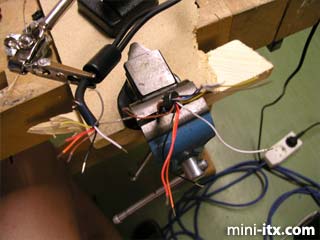

Next step was to make the internal wiring, quite a big job to solder all those wires! But they worked in the end! I did the same job with the VGA cable.
