Building an ION powered Home Theatre PC with XBMC 10.0
By Mini-ITX.com - version 1.1
Posted on January 25, 2011
Jump to:

This project has been updated!
Please visit our newer XBMC 12 Guide

Configuring Wi-Fi

This page is specific to the Zotac ION range of motherboards. Other motherboards may be configured differently.

Warning: this is a difficult module. In our experience Wi-Fi doesn't handle HD video very well.

Requirements:

You must have installed XBMC Live to your local disk for this module to work.

Your XBMC system needs an Internet connection.

Instructions:

1. Open a command line shell

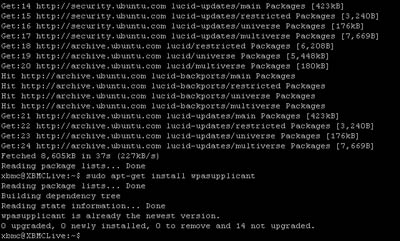

2. Double check that you have wpasupplicant installed by typing the following commands:

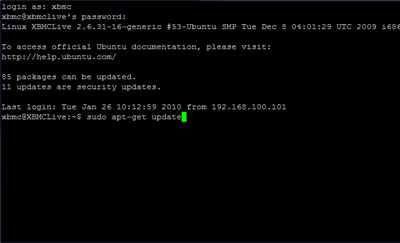

sudo apt-get update

If you are prompted for a password use the one you set up during your xbmc installation.

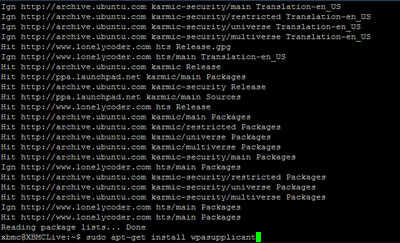

sudo apt-get install wpasupplicant

type y and press enter here

You may already find that wpasupplicant is already installed. If not, this command will install it.

sudo su -

(The $ prompt should change to a #, drive carefully from here on in!)

Now you need to enter your Wi-Fi network parameters into the configuration file. Thankfully there is a small tool to do this for you.

Replace myHomeNetwork with your Wi-Fi network's name (SSID) and replace mySecretPassword with your Wi-Fi password.

Your SSID and password are both case-sensitive.

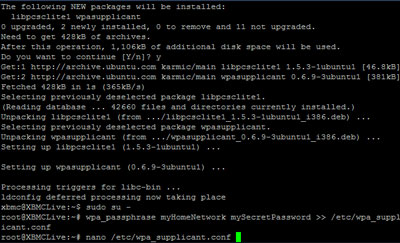

wpa_passphrase myHomeNetwork mySecretPassword > /etc/wpa_supplicant.conf

Now you need to tell the Wi-Fi drivers that you want to use WPA (this guide assumes your using WPA on your home network, if your not then why not?). Type this command to edit the wpa_supplicant.conf file:

nano /etc/wpa_supplicant.conf

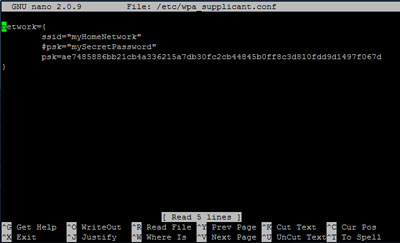

You file should look something like this:

network={
ssid="myHomeNetwork"
#psk="mySecretPassword"
psk=be0fc44e1e70e7a1cfc085ec1db8...
}

The long string is an encrypted version of your password.

Now edit the file. You need to add the parts highlighted in bold below:

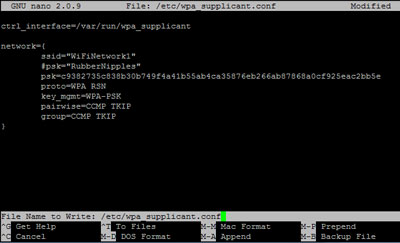

Change it to look like:

ctrl_interface=/var/run/wpa_supplicant
network={
ssid="myHomeNetwork"
#psk="mySecretPassword"
psk=be0fc44e1e70e7a1cfc085ec1db8...
proto=WPA RSN
key_mgmt=WPA-PSK
pairwise=CCMP TKIP
group=CCMP TKIP
}

Now press the Control & X keys together, followed by the Y key and then press Enter to save the updated file.

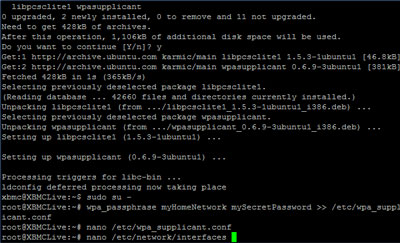

Just one more file to edit and we are done! Edit the /etc/network/interfaces file with the following command:

nano /etc/network/interfaces

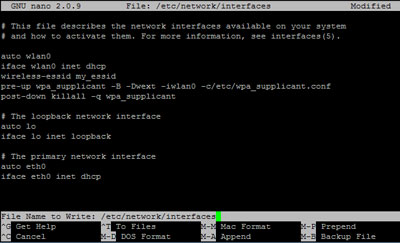

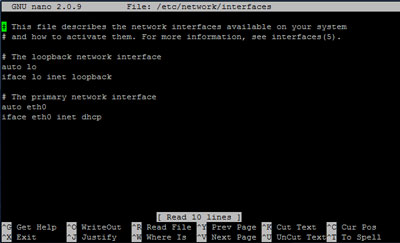

Your file should look like this:

Add this text above the line "# The loopback network interface"

auto wlan0
iface wlan0 inet dhcp
wireless-essid my_essid
pre-up wpa_supplicant -B -Dwext -iwlan0 -c/etc/wpa_supplicant.conf
post-down killall -q wpa_supplicant

Now press the Control & X keys together, followed by the Y key and then press Enter to save the updated file.

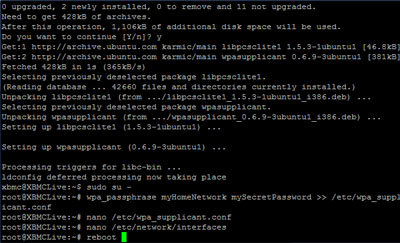

We are all done. To test your Wi-Fi connectivity remove your Ethernet (cable network) connector from the back of your system. Make sure your Wi-Fi aerial is in the back of your system! Now reboot your system and you should be wire-free. Once rebooted why not check your IP address?

*Your cabled connection will always take priority - your Wi-Fi connection will only be used when the cable is not inserted.
